DIODESDatasheet (PDF)

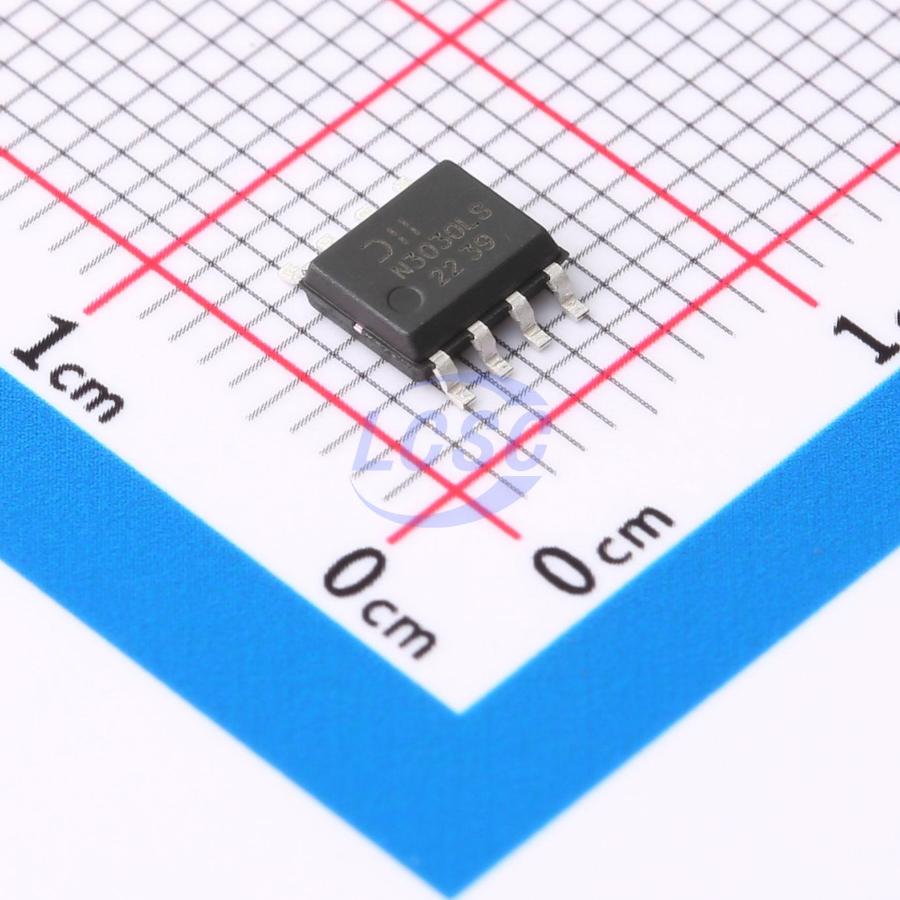

DMN3030LSS-13
30V 9A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET 30V 9A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3030LSS-13
- Store part #
- C177032
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C177032
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹38.68 | ₹38.68 |
| 10+ | ₹37.81 | ₹378.10 |
| 30+ | ₹37.39 | ₹1,121.70 |
| 100+ | ₹36.73 | ₹3,673.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 124pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 741pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.251 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight Illumination - Power Management Function - DC-DC Converter
Key features
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 high-reliability qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SD023NDG#C55336046DOINGTER · SOP-8 | DOINGTER | SOP-8 | 3,000 | ₹8.19 · 3,000 in stock | View |
 | IRF7807TR(UMW)#C5290358UMW · SOP-8 | UMW | SOP-8 | 2,560 | ₹14.88 · 2,560 in stock | View |
 | AGM18N10S#C7509647AGMSEMI · SOP-8 | AGMSEMI | SOP-8 | 20 | ₹18.92 · 20 in stock | View |
 | FS4468#C5441148FOSAN · SOP-8 | FOSAN | SOP-8 | 2,920 | ₹7.12 · 2,920 in stock | View |
 | IRF8714TRPBF#C434803Infineon · SO-8 | Infineon | SO-8 | 743 | ₹132.13 · 743 in stock | View |
