DIODESDatasheet (PDF)

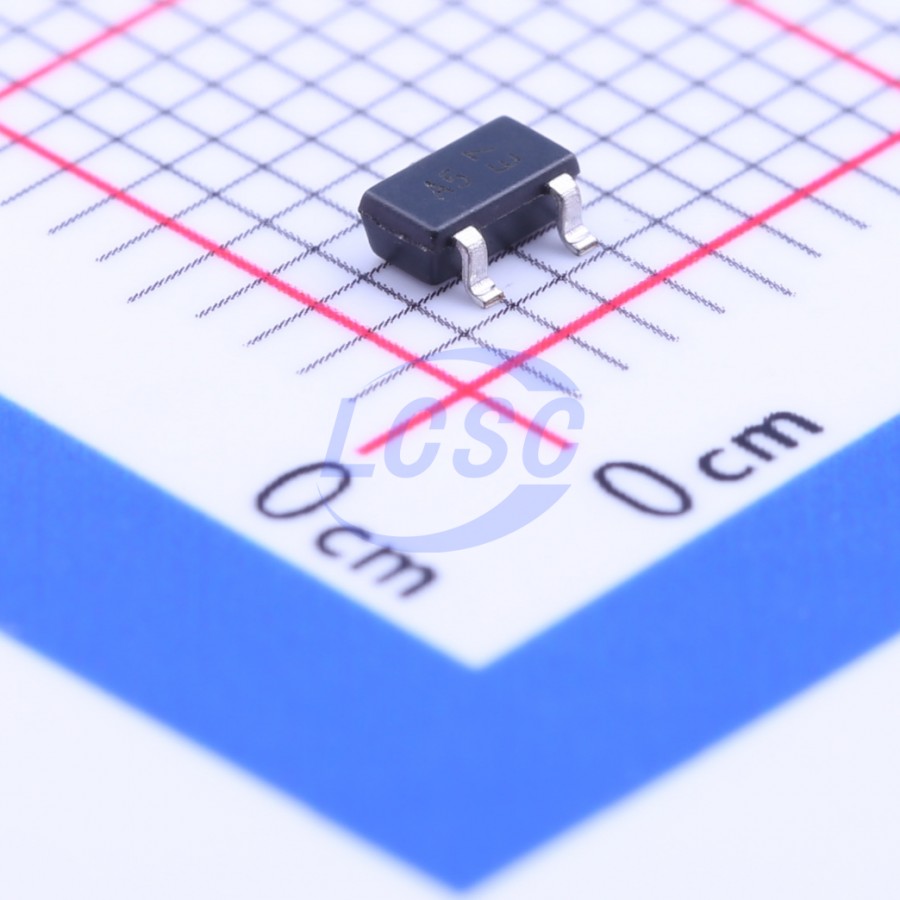

DMN3033LSNQ-7
N-Channel 30V 6A 1.4W Surface Mount SC-59
SC-59ROHS CompliantActive
MOSFET N-CH 30V 6A SC-59
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3033LSNQ-7
- Store part #
- C156290
- Package / case
- SC-59
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,530 in stock
#C156290
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.34 | ₹151.70 |
| 50+ | ₹26.75 | ₹1,337.50 |
| 150+ | ₹25.22 | ₹3,783.00 |
| 500+ | ₹23.31 | ₹11,655.00 |
| 3,000+ | ₹22.45 | ₹67,350.00 |
| 6,000+ | ₹21.94 | ₹1,31,640.00 |
5 × ₹30.34
₹151.70
excl. GST
₹179.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3033LSNQ-7
₹151.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 136pF
- Ciss-Input Capacitance
- 755pF
- Pd - Power Dissipation
- 1.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 108pF
- RDS(on)
- 40mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.5nC@5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This new generation small-signal enhancement mode MOSFET features low on-resistance and fast switching, making it ideal for high - efficiency power management applications.
Applications
- Motor Control
- Backlighting
- DC - DC Converters
- Power Management Functions
Key features
- Low Gate Charge
- Low RDS(ON)
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC - Q101 Standards for High Reliability PPAP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN3033LSN-7#C461013DIODES · SC-59 | DIODES | SC-59 | 175 | ₹30.88 · 175 in stock | View |
 | HL6N04W#C55144873R+O · SOT-23-3L | R+O | SOT-23-3L | 11,960 | ₹7.10 · 11,960 in stock | View |
 | AP3404S#C2875959ALLPOWER · SOT-23-3 | ALLPOWER | SOT-23-3 | 29,380 | ₹6.24 · 29,380 in stock | View |
 | IRLML0030TR-JSM#C18190975JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,630 | ₹9.88 · 1,630 in stock | View |
 | KY3404#C3029294KY · SOT-23 | KY | SOT-23 | 2,230 | ₹5.70 · 2,230 in stock | View |
