DIODESDatasheet (PDF)

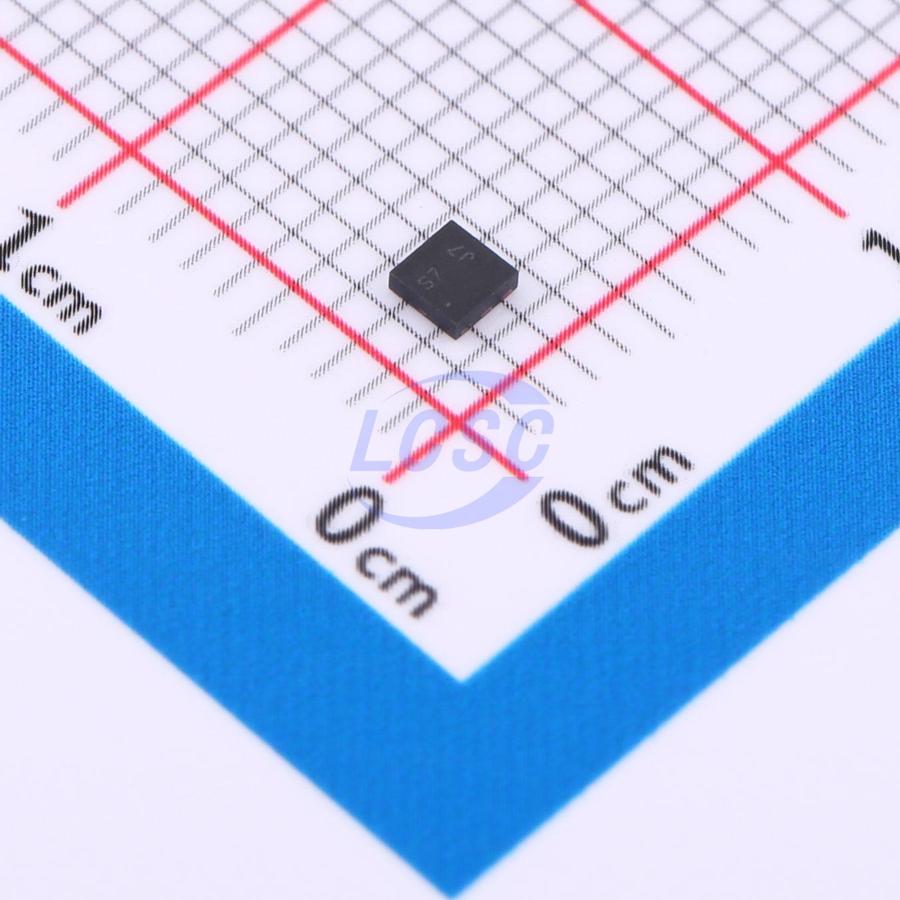

DMN3042LFDF-7
N-Channel 30V 5.8A 1.4W Surface Mount UDFN2020-6
UDFN2020-6ROHS3 CompliantActive
MOSFET N-CH 30V 5.8A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3042LFDF-7
- Store part #
- C5248864
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C5248864
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.60 | ₹148.00 |
| 50+ | ₹29.19 | ₹1,459.50 |
| 150+ | ₹28.91 | ₹4,336.50 |
| 500+ | ₹28.63 | ₹14,315.00 |
5 × ₹29.60
₹148.00
excl. GST
₹174.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3042LFDF-7
₹148.00 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.8A
- Ciss-Input Capacitance
- 860pF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 26.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC
- Gate Threshold Voltage (Vgs(th))
- 1.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.018 g
Overview
This next-generation MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- General-purpose interface switch - Power management function
Key features
- 0.6mm thickness – suitable for slim applications
- 4mm2 PCB footprint
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free. "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMPB29XNE-VB#C47993759VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹112.12 · 10 in stock | View |
 | FDMA7632-VB#C47993986VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹112.12 · 10 in stock | View |
 | R3400B#C48542691DOINGTER · DFN-6(2x2) | DOINGTER | DFN-6(2x2) | 1,260 | ₹5.69 · 1,260 in stock | View |
| PMPB10ENZ#C553012Nexperia · DFN2020-6 | Nexperia | DFN2020-6 | 2,405 | ₹40.71 · 2,405 in stock | View | |
 | DMT10H032LFDF-7#C5624184DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | On request | ₹110.70 · 0 in stock | View |
