MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
DIODESDatasheet (PDF)

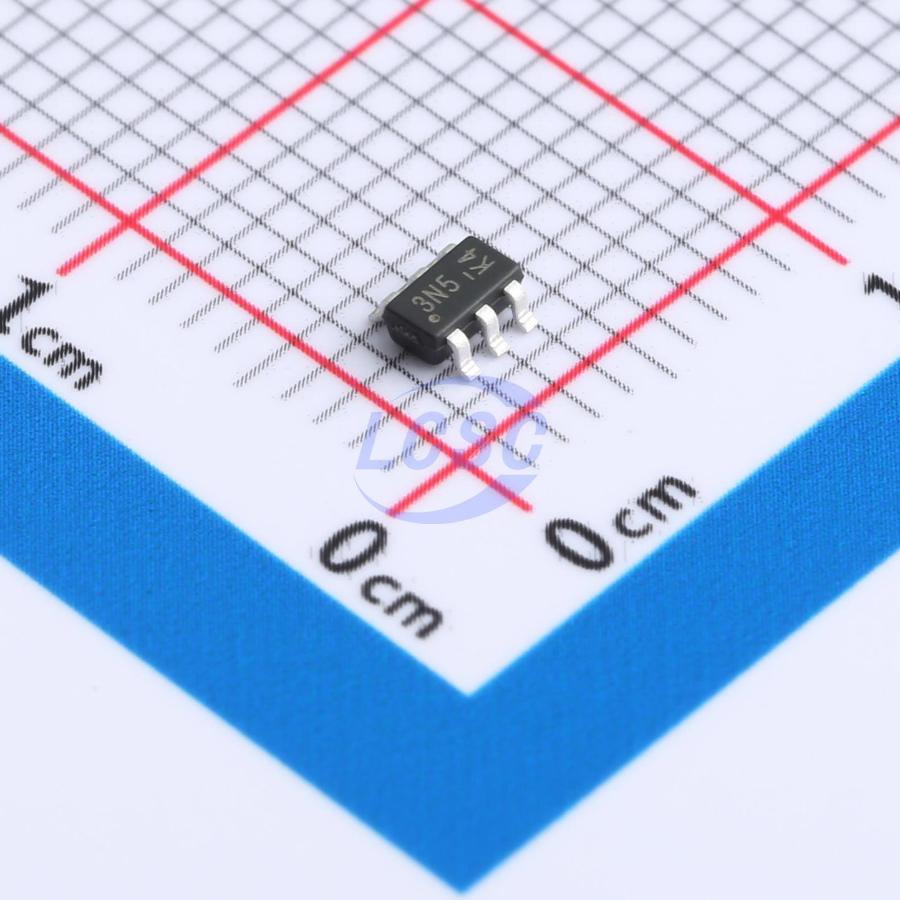

DMN3051LDM-7
N-Channel 30V 4A Surface Mount SOT-26
SOT-26ROHS3 CompliantActive
MOSFET N-CH 30V 4A SOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3051LDM-7
- Store part #
- C5711693
- Package / case
- SOT-26
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C5711693
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.93 | ₹144.65 |
| 50+ | ₹28.52 | ₹1,426.00 |
| 150+ | ₹28.26 | ₹4,239.00 |
| 500+ | ₹27.98 | ₹13,990.00 |
5 × ₹28.93
₹144.65
excl. GST
₹170.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3051LDM-7
₹144.65 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 115pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 424pF
- Reverse Transfer Capacitance (Crss)
- 81pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Key features
- Low On-Resistance • 38 mΩ @ VGS = 10V • 64 mΩ @ VGS = 4.5V
- Low Input Capacitance
- Fast Switching Speed
- Lead Free By Design/RoHS Compliant
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMN25ENEH#C552971Nexperia · SOT-457 | Nexperia | SOT-457 | 3,000 | ₹28.56 · 3,000 in stock | View |
 | RVQ040N05TR#C253529ROHM · SOT-457 | ROHM | SOT-457 | 10 | ₹51.32 · 10 in stock | View |
 | AO6422-VB#C29778803VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 50 | ₹29.09 · 50 in stock | View |
 | NDC651N-VB#C29778882VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 5 | ₹29.09 · 5 in stock | View |
 | TPC6012-VB#C29779374VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 50 | ₹29.09 · 50 in stock | View |
