DIODESDatasheet (PDF)

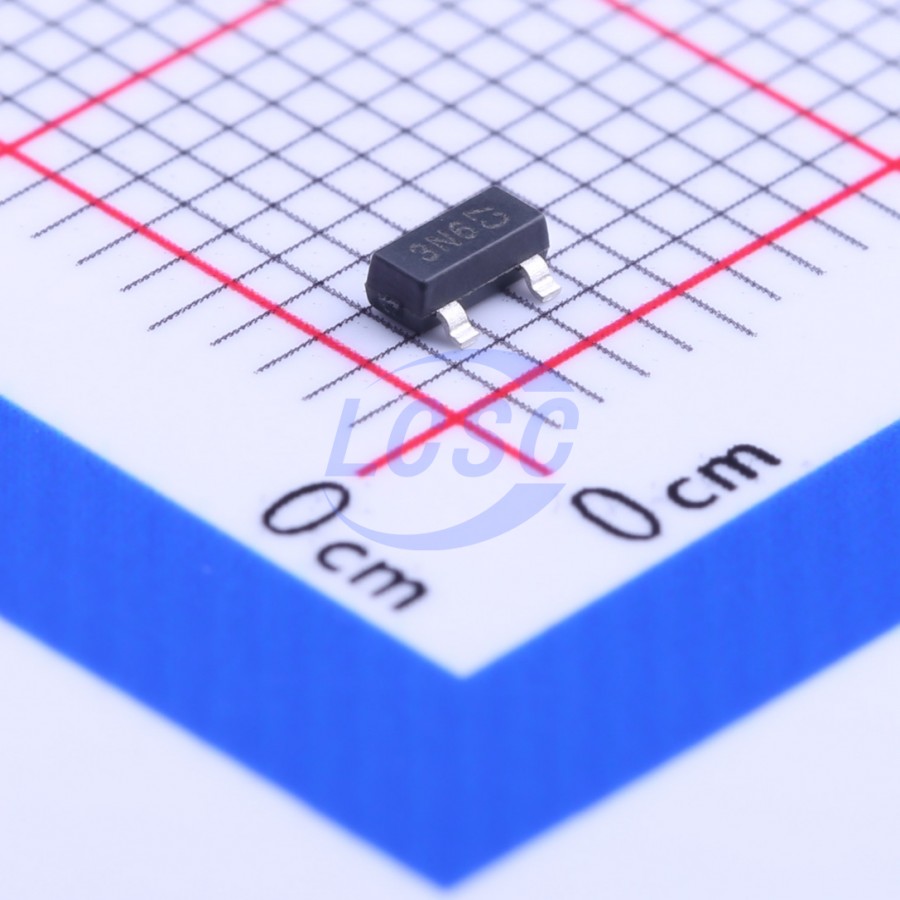

DMN3053L-7
N-Channel 30V 4A Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 30V 4A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3053L-7
- Store part #
- C150469
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,430 in stock
#C150469
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.95 | ₹149.75 |
| 50+ | ₹25.06 | ₹1,253.00 |
| 150+ | ₹22.95 | ₹3,442.50 |
| 500+ | ₹20.33 | ₹10,165.00 |
| 3,000+ | ₹19.17 | ₹57,510.00 |
| 6,000+ | ₹18.47 | ₹1,10,820.00 |
5 × ₹29.95
₹149.75
excl. GST
₹176.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3053L-7
₹149.75 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 54pF
- Ciss-Input Capacitance
- 676pF
- Pd - Power Dissipation
- 1.2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 55mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17.2nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
This new generation MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load Switch
- DC-DC Converters
- Power management functions
Key features
- Low On-Resistance
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI3402-TP#C779230MCC · SOT-23 | MCC | SOT-23 | 7,300 | ₹17.25 · 7,300 in stock | View |
 | WM03N58M#C3030906Wayon · SOT-23 | Wayon | SOT-23 | 1,020 | ₹8.76 · 1,020 in stock | View |
 | SI2300DS#C41348103TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 400 | ₹5.09 · 400 in stock | View |
 | AO3400A#C5380685FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 15,370 | ₹5.45 · 15,370 in stock | View |
 | PT3402#C2944000PUOLOP · SOT-23 | PUOLOP | SOT-23 | 10 | ₹5.19 · 10 in stock | View |
