DIODESDatasheet (PDF)

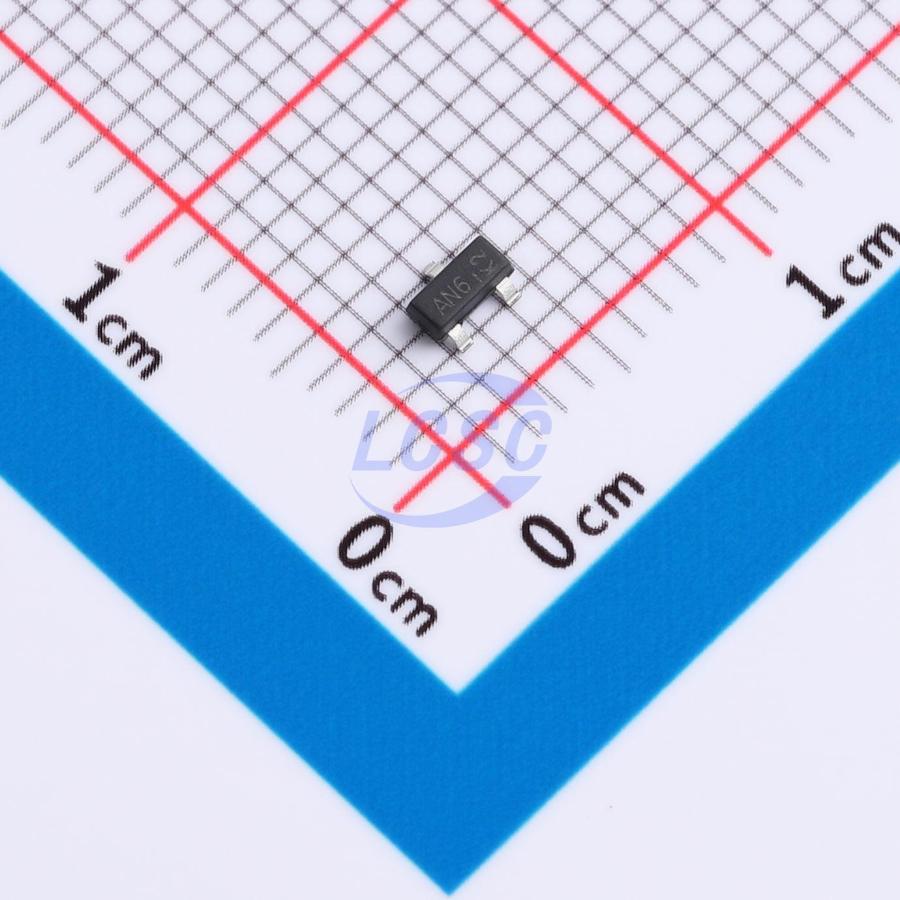

DMN3061S-7
1.23W 30V 2.9A 98mΩ@4.5V 1 N-channel N-Channel SOT-23-3 Single FETs, MOSFETs RoHS
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3061S-7
- Store part #
- C19949850
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C19949850
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.53 | ₹53.53 |
| 10+ | ₹52.67 | ₹526.70 |
| 30+ | ₹52.23 | ₹1,566.90 |
| 100+ | ₹51.81 | ₹5,181.00 |
1 × ₹53.53
₹53.53
excl. GST
₹63.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3061S-7
₹53.53 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 233pF
- Pd - Power Dissipation
- 1.23W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 2.9A
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 98mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- General-purpose interface switch — power management function
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI2310-TP#C669000MCC · SOT-23 | MCC | SOT-23 | 9,020 | ₹21.39 · 9,020 in stock | View |
 | AP2310GN#C42369122KUU · SOT-23 | KUU | SOT-23 | 1,800 | ₹7.70 · 1,800 in stock | View |
 | FS2310#C3018481FUXINSEMI · SOT-23 | FUXINSEMI | SOT-23 | 6,110 | ₹3.19 · 6,110 in stock | View |
 | YJL03N06B#C699285YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 2,730 | ₹7.18 · 2,730 in stock | View |
 | HL3N10#C53238105R+O · SOT-23 | R+O | SOT-23 | 2,350 | ₹8.76 · 2,350 in stock | View |
