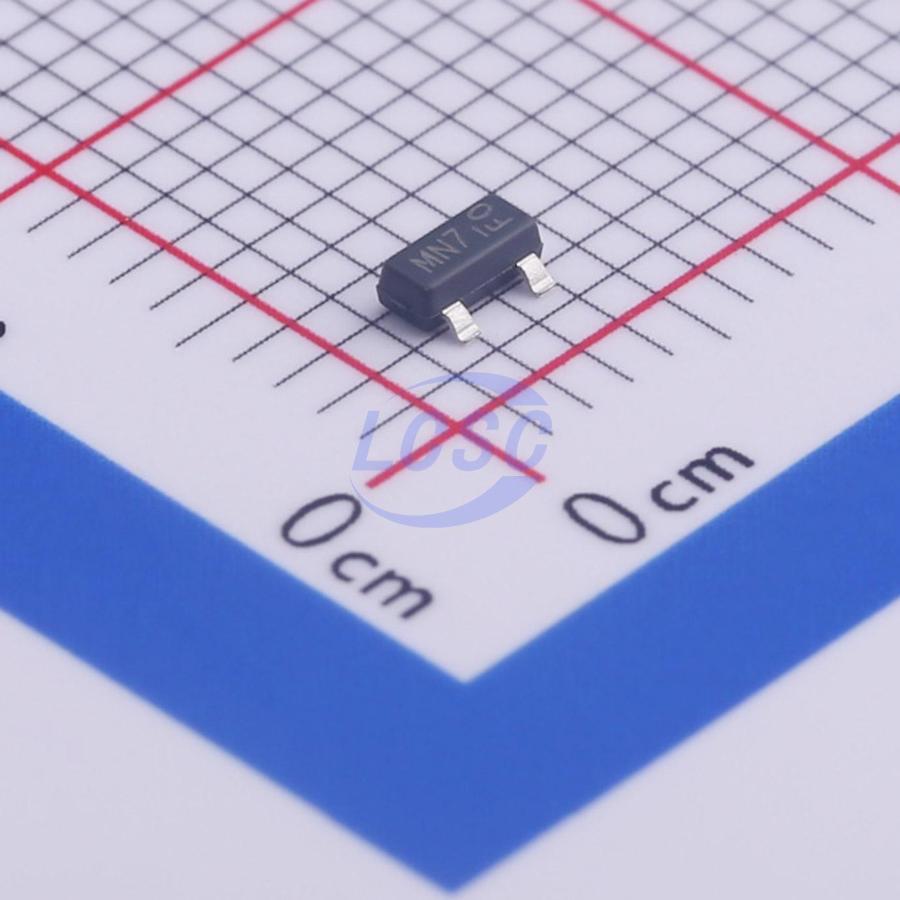

DMN3110S-7
N-Channel 30V 3.3A 1.3W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 30V 3.3A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN3110S-7
- Store part #
- C461016
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C461016
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.51 | ₹42.55 |
| 50+ | ₹8.31 | ₹415.50 |
| 150+ | ₹8.16 | ₹1,224.00 |
| 500+ | ₹8.03 | ₹4,015.00 |
5 × ₹8.51
₹42.55
excl. GST
₹50.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN3110S-7
₹42.55 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 39.9pF
- Current - Continuous Drain(Id)
- 3.3A
- Ciss-Input Capacitance
- 305.8pF
- Pd - Power Dissipation
- 1.3W
- Reverse Transfer Capacitance (Crss)
- 39.5pF
- RDS(on)
- 54mΩ@10V;88mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- General-purpose interface switch
- Power management
- Boost applications
- Analog switch
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- Device meets JEDEC standards (as referenced in AEC-Q) with high reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMN3F30FHTA#C110536DIODES · SOT-23 | DIODES | SOT-23 | 1 | ₹119.26 · 1 in stock | View |
 | SI2306BDS-T1-E3#C727384VISHAY · SOT-23-3 | VISHAY | SOT-23-3 | 45,940 | ₹48.53 · 45,940 in stock | View |
 | IRLML0040TRPBF-TP#C5122024TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 1,875 | ₹15.84 · 1,875 in stock | View |
 | SI2318CDS#C5122034TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 10,810 | ₹15.08 · 10,810 in stock | View |
 | SI2318DS#C5122035TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,585 | ₹15.57 · 2,585 in stock | View |
