DIODESDatasheet (PDF)

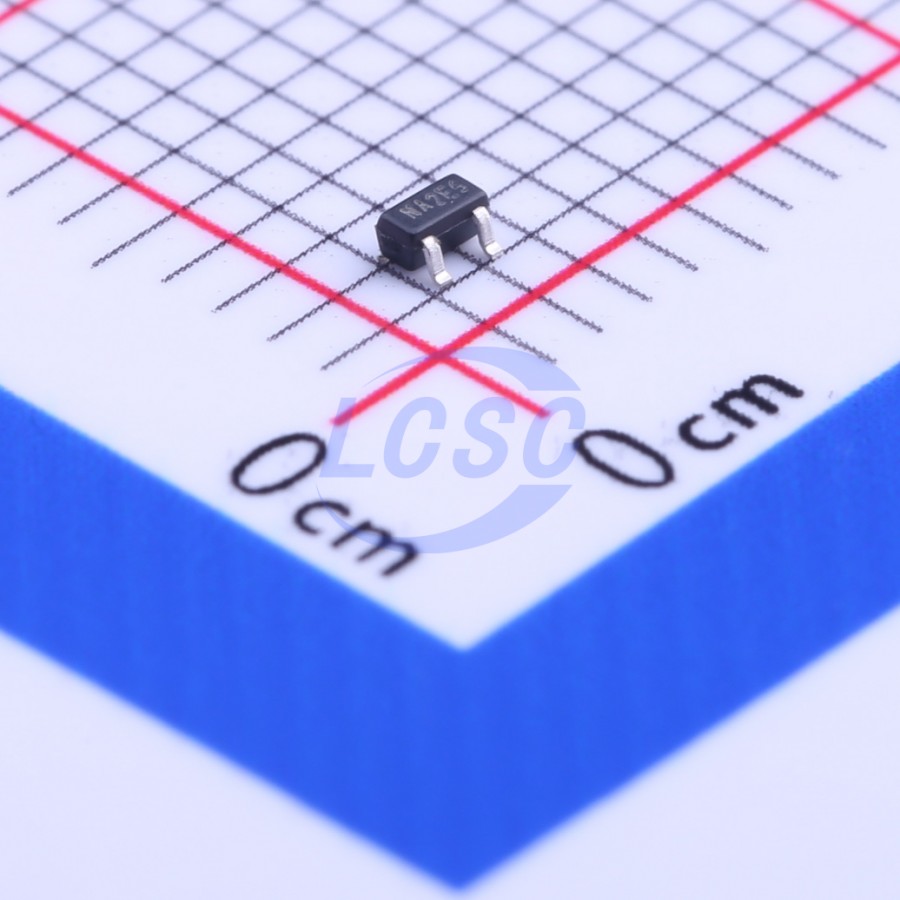

DMN313DLT-7
30V 0.31A 0.36W Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
MOSFET 30V 0.31A SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- DMN313DLT-7
- Store part #
- C155524
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
470 in stock
#C155524
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.59 | ₹85.90 |
| 100+ | ₹7.13 | ₹713.00 |
| 300+ | ₹6.42 | ₹1,926.00 |
| 3,000+ | ₹5.87 | ₹17,610.00 |
| 6,000+ | ₹5.44 | ₹32,640.00 |
| 9,000+ | ₹5.23 | ₹47,070.00 |
10 × ₹8.59
₹85.90
excl. GST
₹101.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN313DLT-7
₹85.90 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 7.6pF
- Current - Continuous Drain(Id)
- 310mA
- Ciss-Input Capacitance
- 36.3pF
- Pd - Power Dissipation
- 360mW
- Reverse Transfer Capacitance (Crss)
- 4.7pF
- RDS(on)
- 3.2Ω@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 500pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
This next-generation MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlight Illumination - DC-DC Converter - Power Management Function
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- ESD protection up to 2kV
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free "Green" device
- JEDEC-qualified (ref. AEC-Q) high-reliability device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002KT#C53664480R+O · SOT-523 | R+O | SOT-523 | 1,12,560 | ₹4.34 · 1,12,560 in stock | View |
 | DMN53D0LT-7#C5374774DIODES · SOT-523 | DIODES | SOT-523 | 5,715 | ₹10.45 · 5,715 in stock | View |
 | VBTA161K#C516978VBsemi Elec · SC-75-3 | VBsemi Elec | SC-75-3 | 15 | ₹11.50 · 15 in stock | View |
 | 2N7002KT#C55127517DongChen · SOT-523 | DongChen | SOT-523 | 2,450 | ₹2.21 · 2,450 in stock | View |
 | RE1J002YNTCL-VB#C45662636VBsemi Elec · SC-75-3 | VBsemi Elec | SC-75-3 | 5 | ₹11.70 · 5 in stock | View |
