DIODESDatasheet (PDF)

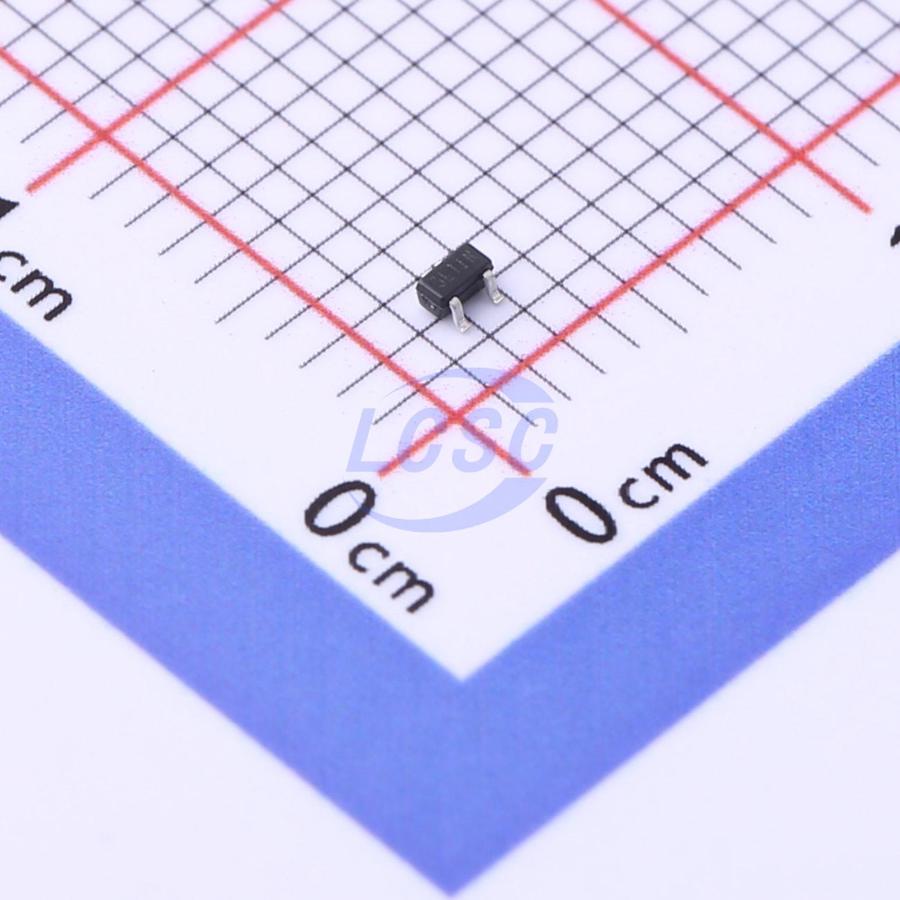

DMN33D8LT-7
N-Channel 30V 200mA 300mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
MOSFET N-CH 30V 200mA SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- DMN33D8LT-7
- Store part #
- C2974173
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
205 in stock
#C2974173
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.16 | ₹100.80 |
| 50+ | ₹16.79 | ₹839.50 |
| 150+ | ₹15.11 | ₹2,266.50 |
| 500+ | ₹13.84 | ₹6,920.00 |
| 3,000+ | ₹12.83 | ₹38,490.00 |
| 6,000+ | ₹12.33 | ₹73,980.00 |
5 × ₹20.16
₹100.80
excl. GST
₹118.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN33D8LT-7
₹100.80 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 11pF
- Ciss-Input Capacitance
- 48pF
- Pd - Power Dissipation
- 300mW
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 200mA
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 7Ω@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.23nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
This new generation MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Battery Operated Systems and Solid-State Relays Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
Key features
- N-Channel MOSFET
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Small Surface Mount Package
- ESD Protected Gate 2kV
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN33D8LT-TP#C51939546TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 2,720 | ₹3.96 · 2,720 in stock | View |
 | DMN53D0LT-7#C5374774DIODES · SOT-523 | DIODES | SOT-523 | 5,715 | ₹10.45 · 5,715 in stock | View |
 | DMN33D8LT-13#C780833DIODES · SOT-523 | DIODES | SOT-523 | 5 | ₹13.23 · 5 in stock | View |
 | PJE8404_R1_00001#C2902551PANJIT · SOT-523 | PANJIT | SOT-523 | 2,860 | ₹9.76 · 2,860 in stock | View |
 | NTA7002NT1G-ES#C5224244ElecSuper · SOT-523 | ElecSuper | SOT-523 | 2,300 | ₹3.49 · 2,300 in stock | View |
