DIODESDatasheet (PDF)

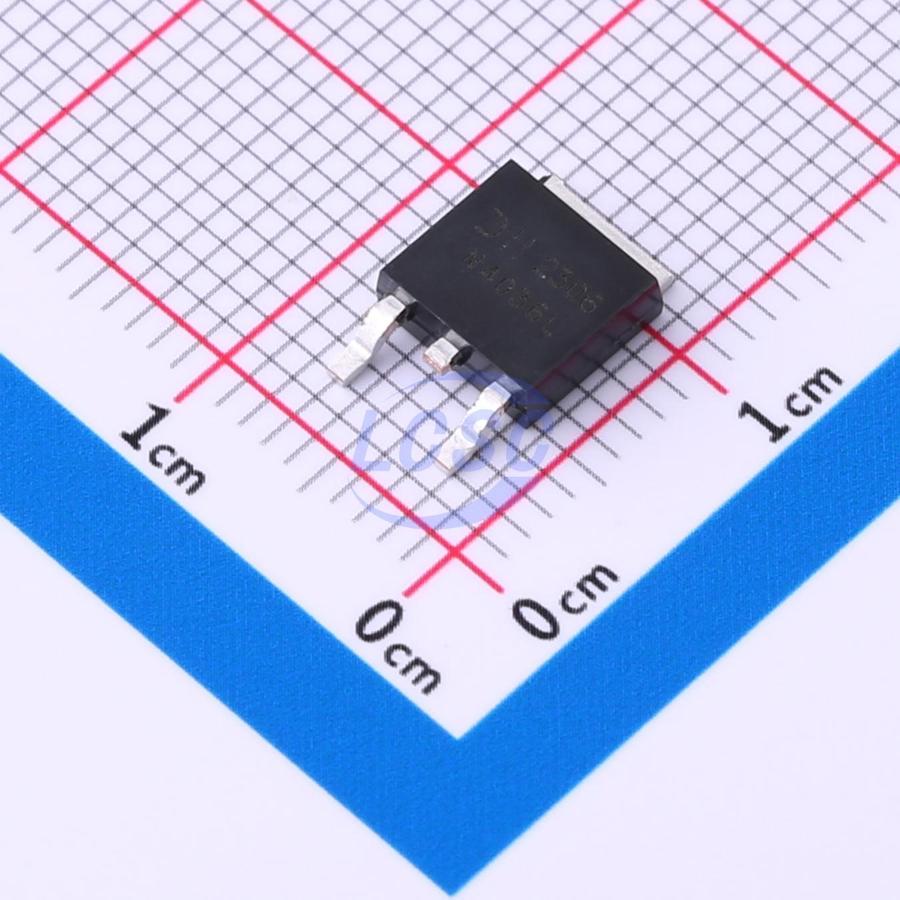

DMN4036LK3-13
N-Channel 40V 12.2A 8.49W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET N-CH 40V 12.2A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMN4036LK3-13
- Store part #
- C5245320
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
475 in stock
#C5245320
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.96 | ₹244.80 |
| 50+ | ₹38.87 | ₹1,943.50 |
| 150+ | ₹34.54 | ₹5,181.00 |
| 500+ | ₹29.15 | ₹14,575.00 |
| 2,500+ | ₹26.75 | ₹66,875.00 |
| 5,000+ | ₹25.31 | ₹1,26,550.00 |
5 × ₹48.96
₹244.80
excl. GST
₹288.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN4036LK3-13
₹244.80 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 12.2A
- Ciss-Input Capacitance
- 453pF
- Pd - Power Dissipation
- 8.49W
- Reverse Transfer Capacitance (Crss)
- 40.5pF
- RDS(on)
- 36mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.9nC
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.538 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- DC-DC Converters
- Power management functions
Key features
- Low on-resistance
- Fast switching speed
- “Green” component and RoHS compliant
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SK2018-JSM#C29779716JSMSEMI · TO-252 | JSMSEMI | TO-252 | 2,500 | ₹33.72 · 2,500 in stock | View |
 | DOD20N06#C36499181DOINGTER · TO-252 | DOINGTER | TO-252 | 24,095 | ₹12.54 · 24,095 in stock | View |
 | IPD50N06S2L13ATMA2-VB#C45662342VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹116.25 · 10 in stock | View |
 | CMD30N10#C5203901Cmos · TO-252 | Cmos | TO-252 | 50 | ₹39.24 · 50 in stock | View |
 | CMD40N15#C5203918Cmos · TO-252 | Cmos | TO-252 | 19 | ₹96.05 · 19 in stock | View |
