DIODESDatasheet (PDF)

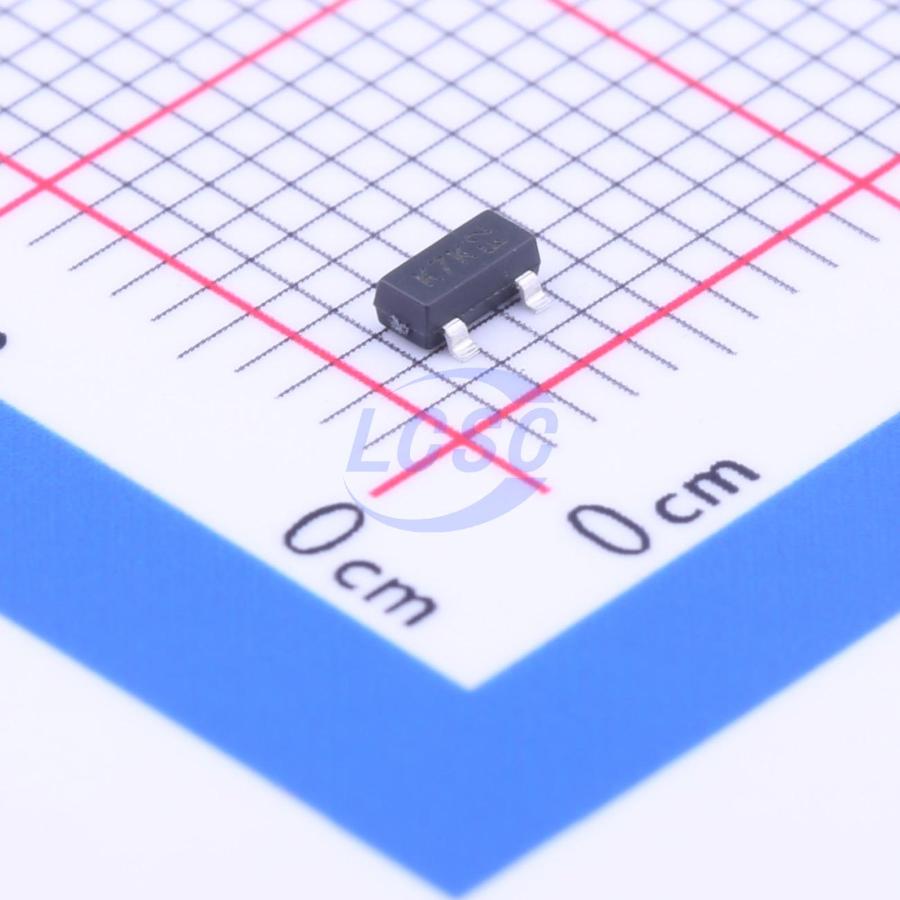

DMN601K-7
60V 300mA 350mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET 60V 300mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN601K-7
- Store part #
- C260937
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,410 in stock
#C260937
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.14 | ₹71.40 |
| 100+ | ₹5.73 | ₹573.00 |
| 300+ | ₹5.01 | ₹1,503.00 |
| 3,000+ | ₹4.48 | ₹13,440.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.85 | ₹34,650.00 |
10 × ₹7.14
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN601K-7
₹71.40 for 10 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 300mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
This MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Motor control
- Power management functions
- Backlight illumination
Key features
- Low on-resistance: RDS(ON)
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- ESD protection up to 2kV
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002K#C53058719luJing · SOT-23 | luJing | SOT-23 | 2,240 | ₹3.11 · 2,240 in stock | View |
 | 2N7002B#C41349566Siliup · SOT-23 | Siliup | SOT-23 | 1,500 | ₹1.88 · 1,500 in stock | View |
 | TP2N7002KT1G#C7603343TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,150 | ₹2.59 · 1,150 in stock | View |
 | 2N7002K#C382335KEXIN · SOT-23 | KEXIN | SOT-23 | 500 | ₹2.13 · 500 in stock | View |
 | 2N7002K-0.3A#C54930238HANGYU MICROELECTRONICS · SOT-23 | HANGYU MICROELECTRONICS | SOT-23 | 1,950 | ₹1.59 · 1,950 in stock | View |
