DIODESDatasheet (PDF)

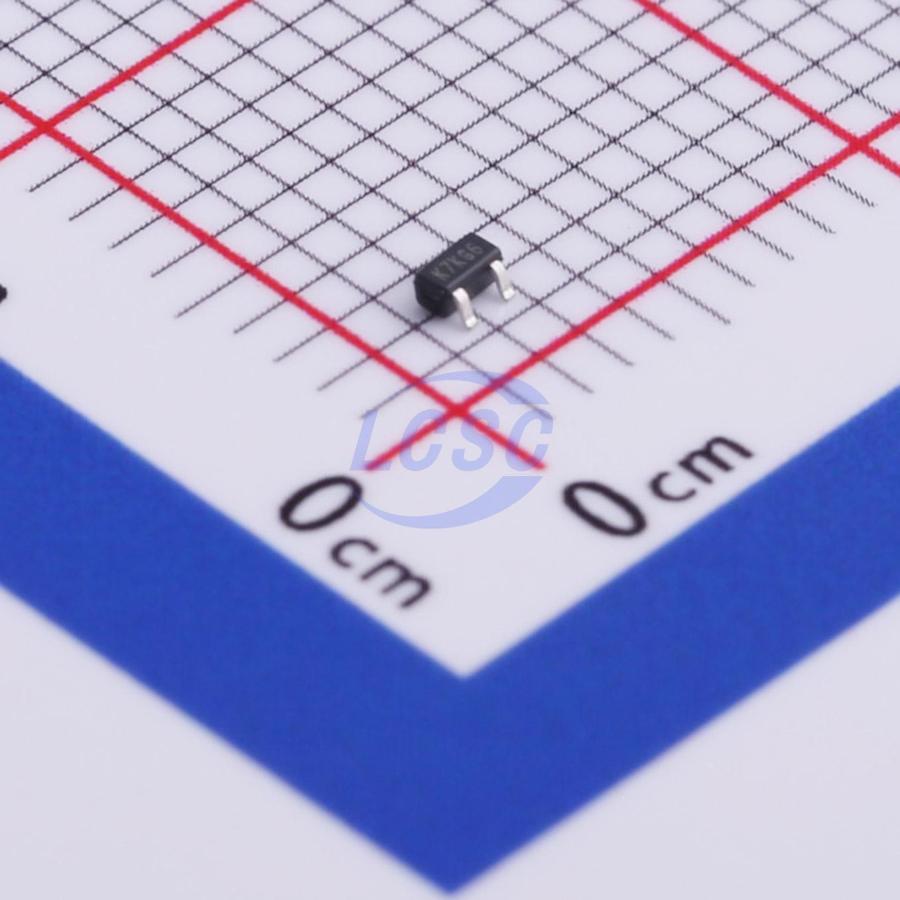

DMN601TK-7
N-Channel 60V 300mA 150mW Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
MOSFET N-CH 60V 300mA SOT-523
- Manufacturer
- DIODES
- Manufacturer part #
- DMN601TK-7
- Store part #
- C508202
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,890 in stock
#C508202
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.71 | ₹68.55 |
| 50+ | ₹11.56 | ₹578.00 |
| 150+ | ₹10.50 | ₹1,575.00 |
| 500+ | ₹9.70 | ₹4,850.00 |
| 3,000+ | ₹9.06 | ₹27,180.00 |
| 6,000+ | ₹8.75 | ₹52,500.00 |
5 × ₹13.71
₹68.55
excl. GST
₹80.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN601TK-7
₹68.55 for 5 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 25pF
- Current - Continuous Drain(Id)
- 300mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 150mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.3Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Motor Control - Power Management Functions
Key features
- Low on-resistance: RDS(ON)
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- ESD protection up to 2kV
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- Device meets JEDEC standards (refer to AEC-Q) with high reliability
- Automotive-grade version (DMN601TKQ) datasheet available separately
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002T#C41349569Siliup · SOT-523 | Siliup | SOT-523 | 3,650 | ₹2.18 · 3,650 in stock | View |
 | 2N7002T-TD#C55124736TDSEMIC · SOT-523 | TDSEMIC | SOT-523 | 2,980 | ₹3.31 · 2,980 in stock | View |
 | 2N7002T#C22466871GOODWORK · SOT-523 | GOODWORK | SOT-523 | 29,020 | ₹3.70 · 29,020 in stock | View |
| 2N7002KT#C52117606TWGMC · SOT-523 | TWGMC | SOT-523 | 750 | ₹2.61 · 750 in stock | View | |
 | TNM3K60FEX#C5156707JingYang · SOT-523 | JingYang | SOT-523 | 4,480 | ₹6.14 · 4,480 in stock | View |
