DIODESDatasheet (PDF)

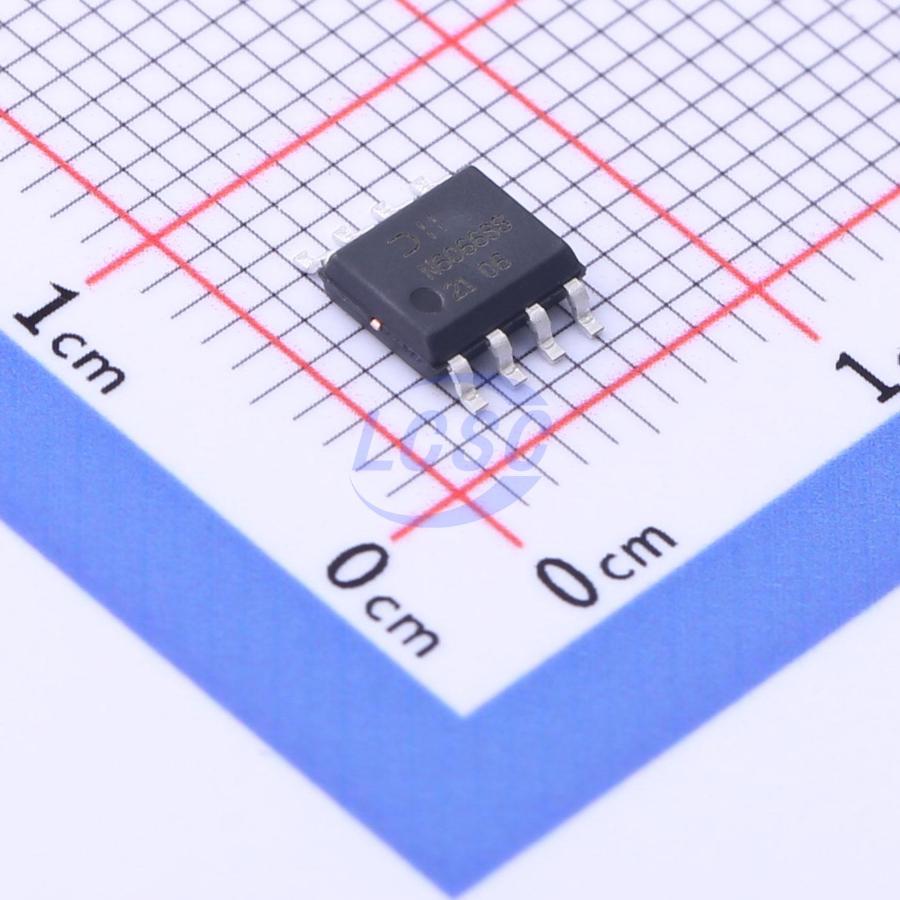

DMN6066SSS-13
N-Channel 60V 5A 1.56W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET N-CH 60V 5A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMN6066SSS-13
- Store part #
- C2960347
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,037 in stock
#C2960347
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹38.68 | ₹38.68 |
| 10+ | ₹33.68 | ₹336.80 |
| 30+ | ₹31.51 | ₹945.30 |
| 100+ | ₹28.91 | ₹2,891.00 |
| 500+ | ₹26.30 | ₹13,150.00 |
| 1,000+ | ₹25.65 | ₹25,650.00 |
1 × ₹38.68
₹38.68
excl. GST
₹45.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMN6066SSS-13
₹38.68 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 45.7pF
- Ciss-Input Capacitance
- 502pF
- Pd - Power Dissipation
- 1.56W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 5A
- Reverse Transfer Capacitance (Crss)
- 27.1pF
- RDS(on)
- 97mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10.3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
This MOSFET is designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Motor Control
- Backlighting
- DC-DC Converters Power Management Functions
Key features
- Low on-resistance
- Fast switching speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN6066SSSQ-13#C5563871DIODES · SO-8 | DIODES | SO-8 | 30 | ₹317.90 · 30 in stock | View |
 | SI4850EY-T1-GE3#C469335VISHAY · SO-8 | VISHAY | SO-8 | 618 | ₹316.10 · 618 in stock | View |
 | MEE4294-G#C2693573MATSUKI · SOP-8 | MATSUKI | SOP-8 | 30 | ₹34.35 · 30 in stock | View |
 | AP9474GM-VB#C693434VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 29 | ₹68.28 · 29 in stock | View |
 | STN4826#C2682805STANSON Tech. · SOP-8 | STANSON Tech. | SOP-8 | 54 | ₹32.98 · 54 in stock | View |
