DIODESDatasheet (PDF)

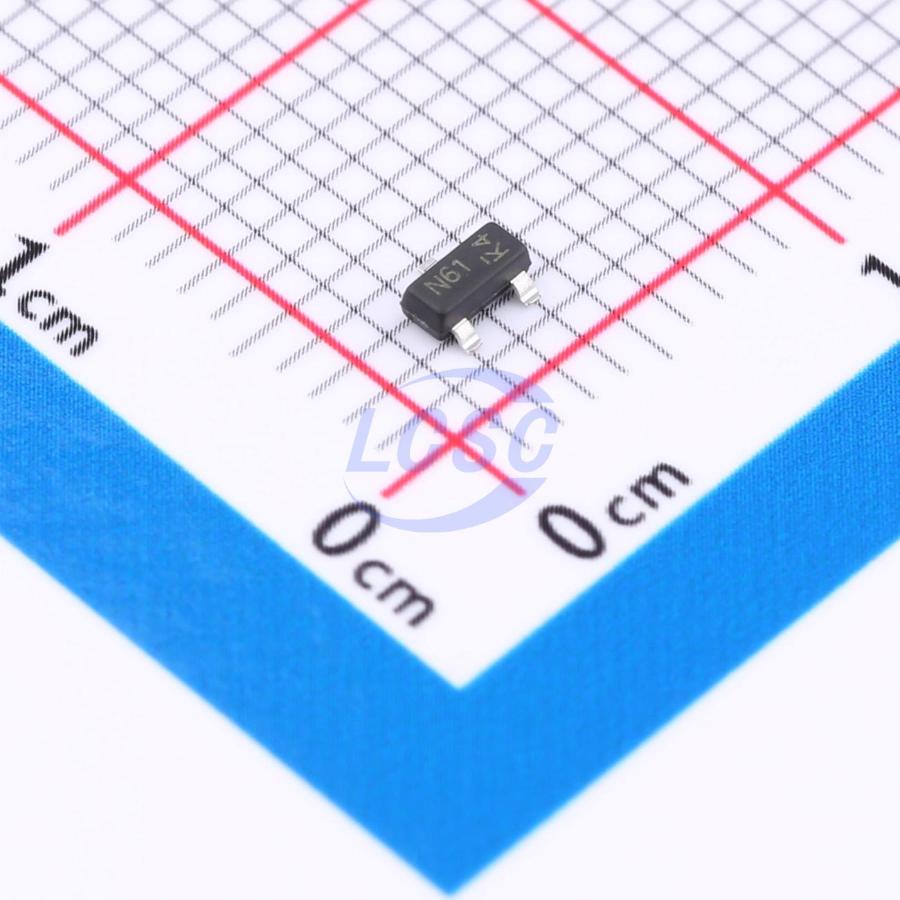

DMN6140LQ-13
60V 2.3A 0.7W Surface Mount SOT-23-3
SOT-23-3ROHS3 CompliantActive
MOSFET 60V 2.3A SOT-23-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN6140LQ-13
- Store part #
- C6832212
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
615 in stock
#C6832212
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.21 | ₹86.05 |
| 50+ | ₹16.84 | ₹842.00 |
| 150+ | ₹16.60 | ₹2,490.00 |
| 500+ | ₹16.35 | ₹8,175.00 |
5 × ₹17.21
₹86.05
excl. GST
₹101.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN6140LQ-13
₹86.05 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 2.3A
- Ciss-Input Capacitance
- 315pF
- Pd - Power Dissipation
- 700mW
- Reverse Transfer Capacitance (Crss)
- 16pF
- RDS(on)
- 140mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.6nC
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
Applications
- DC-DC converters
- Power-management functions
- Analog switches
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN6140L-13#C211403DIODES · SOT-23 | DIODES | SOT-23 | 15,000 | ₹24.74 · 15,000 in stock | View |
 | S-LN2308LT1G#C5273670LRC · SOT-23 | LRC | SOT-23 | 3,105 | ₹17.34 · 3,105 in stock | View |
 | LN2308LT1G#C83150LRC · SOT-23 | LRC | SOT-23 | 1,430 | ₹12.53 · 1,430 in stock | View |
 | DMN6140LQ-7#C155271DIODES · SOT-23 | DIODES | SOT-23 | 44,385 | ₹30.43 · 44,385 in stock | View |
 | DMN6140L-7#C156306DIODES · SOT-23 | DIODES | SOT-23 | 32,220 | ₹16.60 · 32,220 in stock | View |
