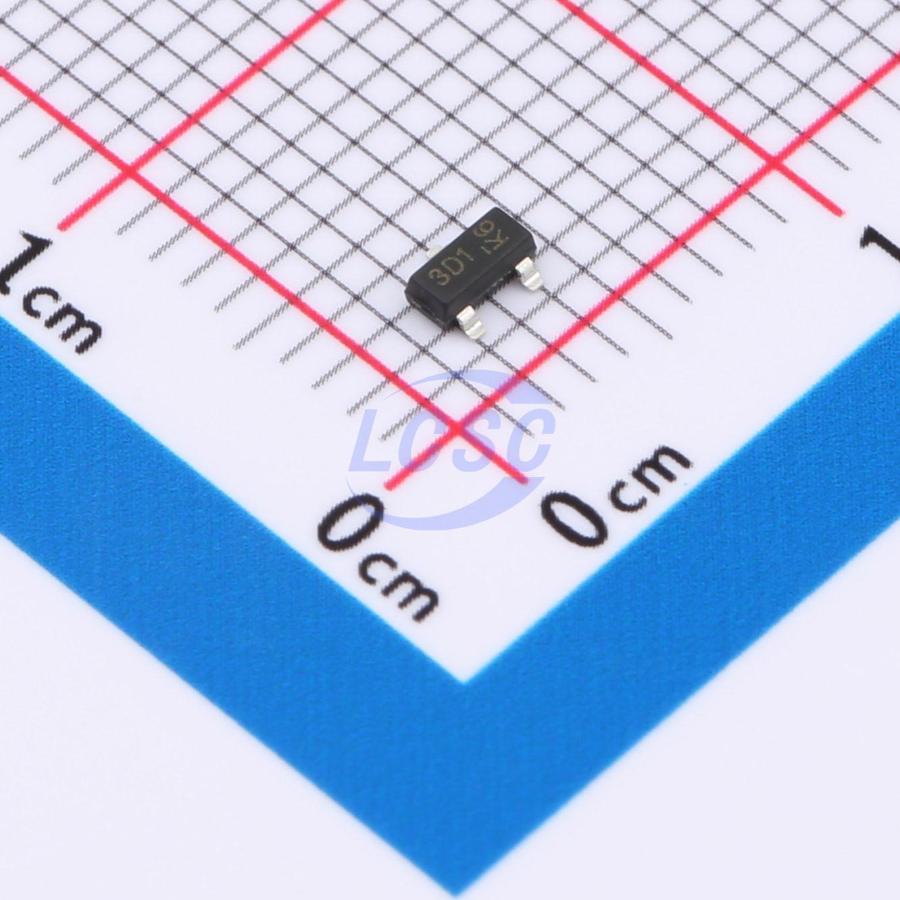

DMN63D1L-13
N-Channel 60V 380mA 370mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 60V 380mA SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMN63D1L-13
- Store part #
- C5245328
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
950 in stock
#C5245328
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.45 | ₹74.50 |
| 100+ | ₹7.34 | ₹734.00 |
| 300+ | ₹7.28 | ₹2,184.00 |
| 1,000+ | ₹7.21 | ₹7,210.00 |
10 × ₹7.45
₹74.50
excl. GST
₹87.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMN63D1L-13
₹74.50 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 380mA
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 370mW
- Reverse Transfer Capacitance (Crss)
- 2.9pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 304pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Motor control
- Power management functions
- Backlight illumination
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- ESD Protected Up To 2kV
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002KQ-13#C526325DIODES · SOT-23 | DIODES | SOT-23 | 10 | ₹9.58 · 10 in stock | View |
 | MMBF170#C130879Shikues · SOT-23 | Shikues | SOT-23 | 40 | ₹4.34 · 40 in stock | View |
 | DMN61D9U-13#C3290012DIODES · SOT-23-3 | DIODES | SOT-23-3 | 40 | ₹12.57 · 40 in stock | View |
 | S-L2N7002KLT1G#C5447802LRC · SOT-23 | LRC | SOT-23 | 1,280 | ₹5.03 · 1,280 in stock | View |
 | 2N7002BK-JSM#C18190203JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,940 | ₹2.92 · 2,940 in stock | View |
