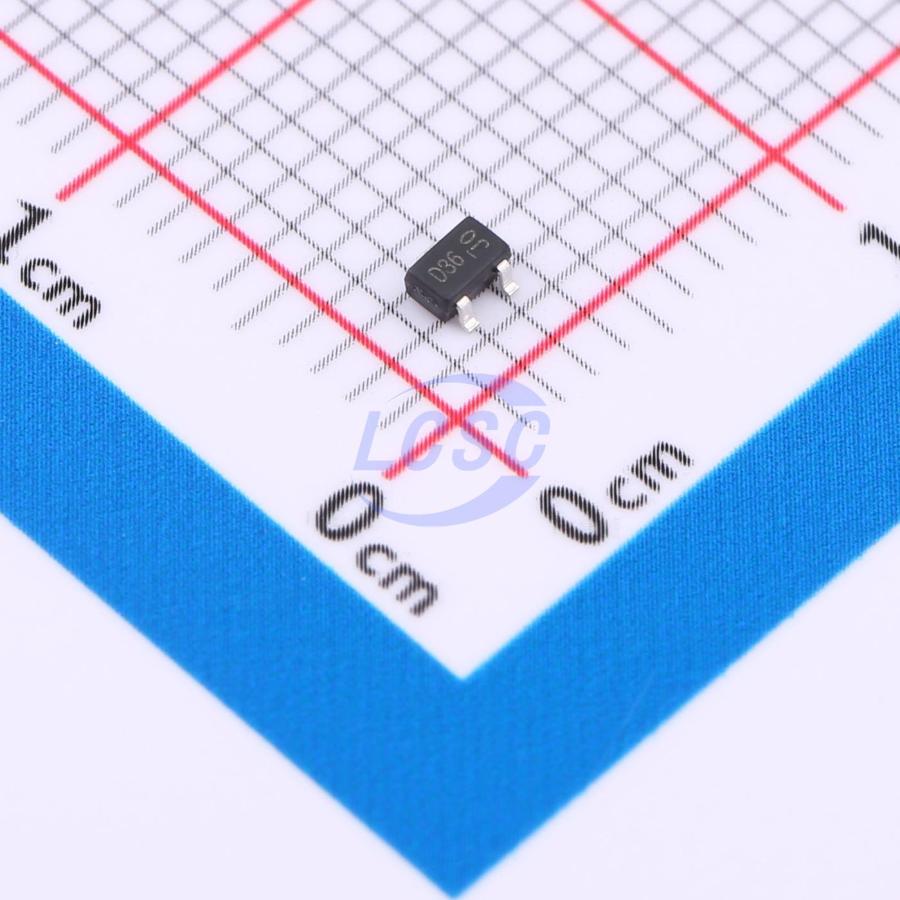

DMN63D1LW-13
N-Channel 60V 380mA 370mW Surface Mount SOT-323
SOT-323ROHS3 CompliantActive
MOSFET N-CH 60V 380mA SOT-323
- Manufacturer
- DIODES
- Manufacturer part #
- DMN63D1LW-13
- Store part #
- C6934862
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C6934862
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.75 | ₹87.50 |
| 100+ | ₹8.63 | ₹863.00 |
| 300+ | ₹8.55 | ₹2,565.00 |
| 1,000+ | ₹8.47 | ₹8,470.00 |
10 × ₹8.75
₹87.50
excl. GST
₹103.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN63D1LW-13
₹87.50 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 380mA
- Ciss-Input Capacitance
- 30pF
- Pd - Power Dissipation
- 370mW
- Reverse Transfer Capacitance (Crss)
- 2.9pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 304pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Motor control
- Power management functions
- Backlight illumination
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- ESD Protected Up To 2kV
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002WT1G#C18212685TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,300 | ₹2.66 · 2,300 in stock | View |
 | HDMN63D1LW13#C42401245HXY MOSFET · SOT-323 | HXY MOSFET | SOT-323 | 100 | ₹3.90 · 100 in stock | View |
| SI1330EDL-T1-GE3#C727342VISHAY · SC-70-3 | VISHAY | SC-70-3 | 2,838 | ₹38.31 · 2,838 in stock | View | |
 | L2N7002SWT1G#C383164LRC · SC-70 | LRC | SC-70 | 6,360 | ₹3.24 · 6,360 in stock | View |
 | SSM3K7002KFU,LF#C6685663TOSHIBA · SC-70(SOT-323) | TOSHIBA | SC-70(SOT-323) | 3,410 | ₹8.31 · 3,410 in stock | View |
