DIODESDatasheet (PDF)

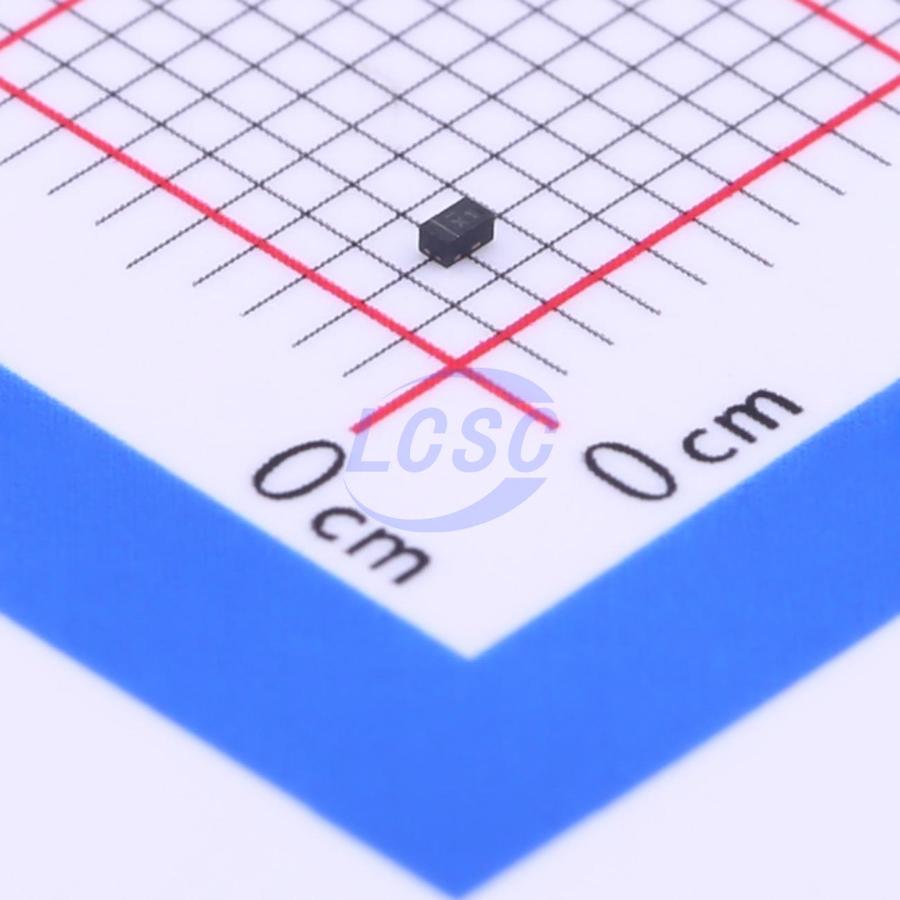

DMN65D8LFb-7B
N-Channel 60V 400mA 840mW Surface Mount X1-DFN1006-3
X1-DFN1006-3ROHS3 CompliantActive
MOSFET N-CH 60V 400mA X1-DFN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMN65D8LFb-7B
- Store part #
- C397946
- Package / case
- X1-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C397946
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.91 | ₹65.91 |
| 10+ | ₹52.47 | ₹524.70 |
| 30+ | ₹46.83 | ₹1,404.90 |
| 100+ | ₹39.69 | ₹3,969.00 |
| 500+ | ₹36.44 | ₹18,220.00 |
| 1,000+ | ₹34.48 | ₹34,480.00 |
1 × ₹65.91
₹65.91
excl. GST
₹77.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMN65D8LFb-7B
₹65.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 4.7pF
- Current - Continuous Drain(Id)
- 400mA
- Ciss-Input Capacitance
- 25pF
- Pd - Power Dissipation
- 840mW
- Reverse Transfer Capacitance (Crss)
- 2.5pF
- RDS(on)
- 1.9Ω@10V;2.2Ω@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 870pC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
This next-generation MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC converter
- Power management function
- Battery-powered systems and solid-state relay drivers: relays, solenoids, lamps, hammers, displays, memories, transistors, etc.
Key features
- N-channel MOSFET
- Low on-resistance
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Small SMT package
- Gate ESD protection, 1.2kV HBM
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBG2N7002K#C53243978HUASHUO · DFN1006-3 | HUASHUO | DFN1006-3 | 80 | ₹3.52 · 80 in stock | View |
| 2N7002KL3-TP#C3288243MCC · DFN1006-3 | MCC | DFN1006-3 | On request | ₹7.63 · 0 in stock | View | |
 | SSM3K72KCT,L3F#C5199984TOSHIBA · CST-3 | TOSHIBA | CST-3 | 225 | ₹9.58 · 225 in stock | View |
 | CJBA7002K#C504101JSCJ · DFN-3L(1x0.6) | JSCJ | DFN-3L(1x0.6) | 6,340 | ₹4.22 · 6,340 in stock | View |
 | L2N7002KN3T5G#C383162LRC · SOT-883-3 | LRC | SOT-883-3 | 960 | ₹4.33 · 960 in stock | View |
