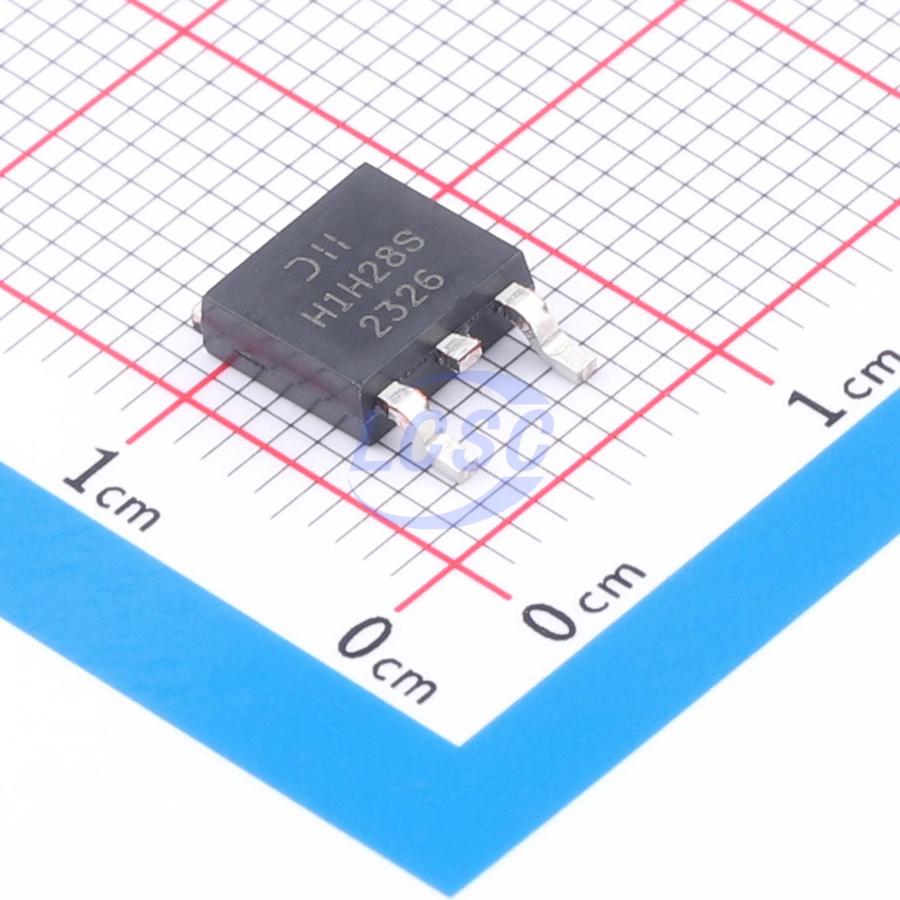

DMNH10H028SK3-13
N-Channel 100V 55A 3.7W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantSold out at source
MOSFET N-CH 100V 55A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMNH10H028SK3-13
- Store part #
- C3281402
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3281402
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹304.73 | ₹304.73 |
| 10+ | ₹298.88 | ₹2,988.80 |
| 30+ | ₹295.12 | ₹8,853.60 |
| 100+ | ₹291.17 | ₹29,117.00 |
1 × ₹304.73
₹304.73
excl. GST
₹359.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMNH10H028SK3-13
₹304.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 55A
- Ciss-Input Capacitance
- 2.245nF
- Pd - Power Dissipation
- 3.7W
- Reverse Transfer Capacitance (Crss)
- 68pF
- RDS(on)
- 28mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.81 g
Overview
This next-generation MOSFET features low on-resistance and fast switching characteristics, making it ideal for high-efficiency power management applications.
Applications
- Engine Management Systems - Body Control Electronics - DC-DC Converters
Key features
- Rated temperature up to +175°C, suitable for high ambient temperature environments
- 100% unclamped inductive switching tested, ensuring greater reliability and durability in end applications
- Low RDS(ON) minimizes power dissipation
- Low Qg minimizes switching losses
- Lead-free finish, RoHS compliant
- Halogen- and antimony-free, qualifies as "Green" device
- Component meets JEDEC standards (as referenced in AEC-Q) for high reliability
- Automotive-grade component available in separate datasheet (DMNH10H028SK3Q)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD60N10S4-12#C536797Infineon · TO-252-3 | Infineon | TO-252-3 | 174 | ₹197.67 · 174 in stock | View |
 | HSD60N10#C19725802HUAKE · TO-252 | HUAKE | TO-252 | 2,480 | ₹44.74 · 2,480 in stock | View |
 | CMD079N10#C41410519Cmos · TO-252 | Cmos | TO-252 | 45 | ₹35.19 · 45 in stock | View |
 | SP010N06GHTH#C55085244Siliup · TO-252 | Siliup | TO-252 | 925 | ₹39.15 · 925 in stock | View |
 | IPD122N10N3GATMA1#C5381669Infineon · TO-252-3 | Infineon | TO-252-3 | 12 | ₹165.16 · 12 in stock | View |
