DIODESDatasheet (PDF)

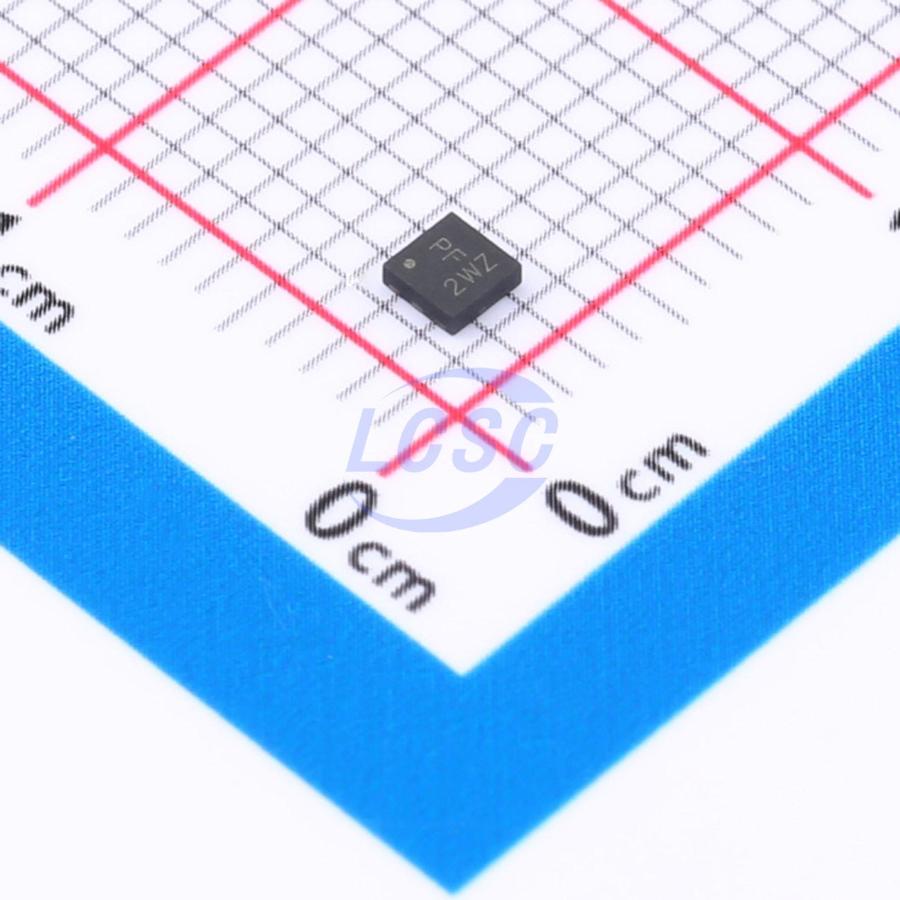

DMP1012UFDF-7
12V 20A 720mW 40mΩ@1.8V 1 P-Channel UDFN2020-6 Single FETs, MOSFETs RoHS
UDFN2020-6ROHS3 CompliantActive
MOSFET P-CH 12V 20A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMP1012UFDF-7
- Store part #
- C5245345
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C5245345
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.37 | ₹206.85 |
| 50+ | ₹33.33 | ₹1,666.50 |
| 150+ | ₹29.87 | ₹4,480.50 |
| 500+ | ₹25.57 | ₹12,785.00 |
| 2,500+ | ₹23.66 | ₹59,150.00 |
| 5,000+ | ₹22.52 | ₹1,12,600.00 |
5 × ₹41.37
₹206.85
excl. GST
₹244.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP1012UFDF-7
₹206.85 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.344nF
- Pd - Power Dissipation
- 720mW
- Reverse Transfer Capacitance (Crss)
- 297pF
- RDS(on)
- 40mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 19.5nC
- Gate Threshold Voltage (Vgs(th))
- 300mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The next-generation MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Battery management applications
- Power management functions
- DC-DC converters
Key features
- 0.6mm ultra-thin package — ideal for slim applications
- 4mm² PCB footprint
- Low on-resistance
- Fast switching speed
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TW30P20#C42417270TWGMC · DFN2X2-6L | TWGMC | DFN2X2-6L | 385 | ₹15.97 · 385 in stock | View |
 | XR30P20M#C42456935XNRUSEMI · DFN2020-6L | XNRUSEMI | DFN2020-6L | 2,320 | ₹12.83 · 2,320 in stock | View |
 | aon2411-VB#C47993877VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹69.63 · 10 in stock | View |
 | LWP2015AD2#C54740913Lewa Micro · DFN-6L(2x2) | Lewa Micro | DFN-6L(2x2) | 2,790 | ₹17.32 · 2,790 in stock | View |
 | YFW20P02BF#C55073166YFW · DFN-6L(2x2) | YFW | DFN-6L(2x2) | 50 | ₹14.61 · 50 in stock | View |
