VBsemi ElecDatasheet (PDF)

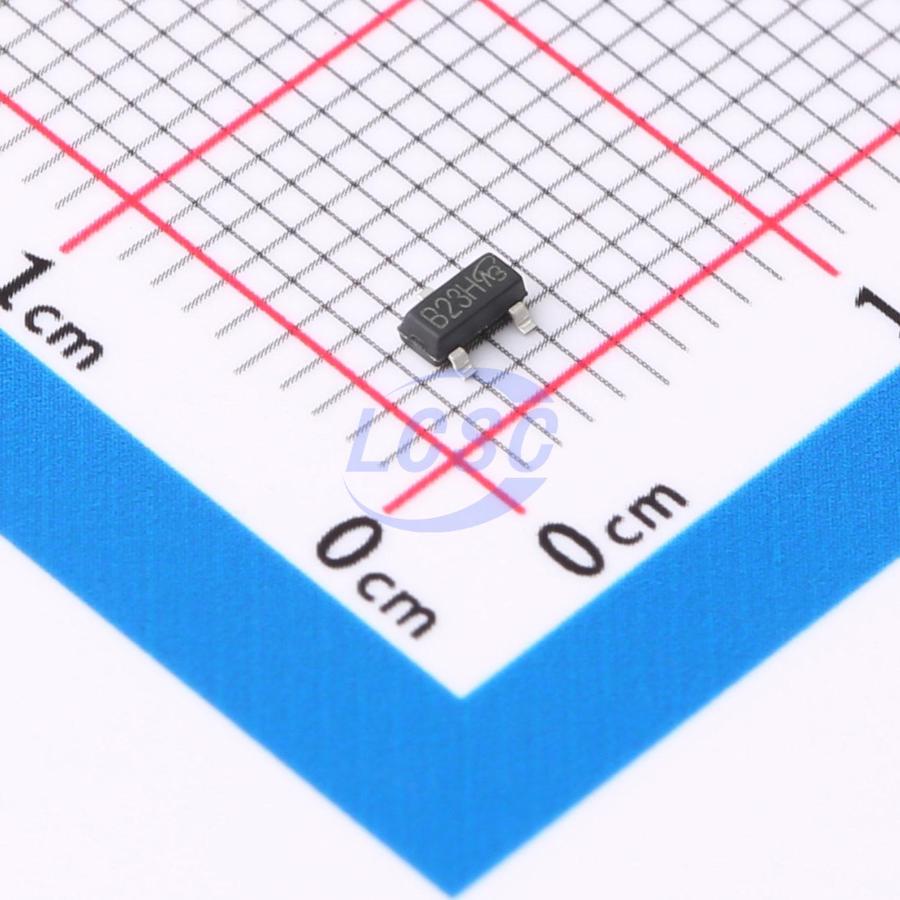

DMP1045U-7-VB
P-Channel 30V 5.4A 1.6W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)ROHS CompliantActive
MOSFET P-CH 30V 5.4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- DMP1045U-7-VB
- Store part #
- C7524914
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7524914
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.02 | ₹65.10 |
| 50+ | ₹10.35 | ₹517.50 |
| 150+ | ₹9.01 | ₹1,351.50 |
| 500+ | ₹8.00 | ₹4,000.00 |
| 3,000+ | ₹6.95 | ₹20,850.00 |
| 6,000+ | ₹6.55 | ₹39,300.00 |
5 × ₹13.02
₹65.10
excl. GST
₹76.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP1045U-7-VB
₹65.10 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 5.4A
- Ciss-Input Capacitance
- 1.295nF
- Pd - Power Dissipation
- 1.6W
- RDS(on)
- 46mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 24nC@10V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
Applications
- Mobile computing applications
- Load switch
- Notebook adapter switch
- DC/DC converter
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CES2331-VB#C692950VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 235 | ₹12.89 · 235 in stock | View |
 | NTR4502PT1G-VB#C558219VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 525 | ₹14.33 · 525 in stock | View |
 | RU20P4C-VB#C558236VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 1,355 | ₹12.63 · 1,355 in stock | View |
 | SI2347DS-T1-GE3-VB#C5878837VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 20 | ₹17.15 · 20 in stock | View |
 | SQ2303ES-T1-GE3-VB#C7463595VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 1,240 | ₹13.65 · 1,240 in stock | View |
