DIODESDatasheet (PDF)

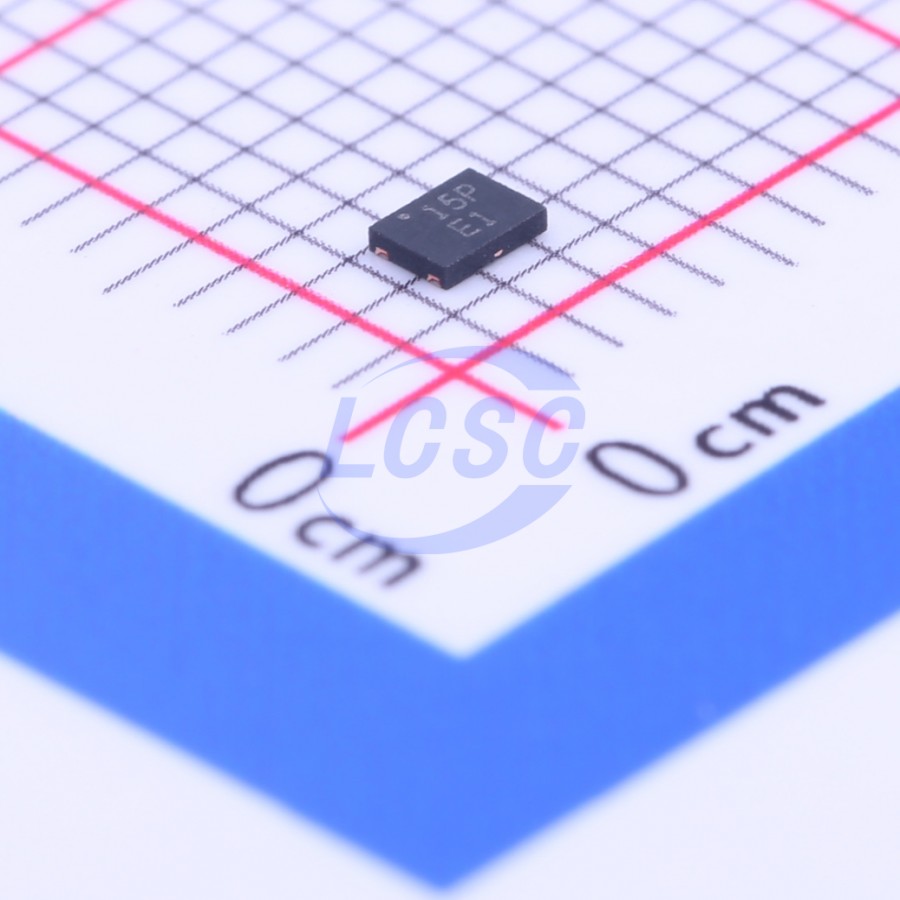

DMP1045UFY4-7
P-Channel 12V 5.5A 1.7W Surface Mount XFDFN-3
XFDFN-3ROHS3 CompliantActive
MOSFET P-CH 12V 5.5A XFDFN-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP1045UFY4-7
- Store part #
- C145094
- Package / case
- XFDFN-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C145094
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.31 | ₹161.55 |
| 50+ | ₹25.80 | ₹1,290.00 |
| 150+ | ₹23.01 | ₹3,451.50 |
| 500+ | ₹19.51 | ₹9,755.00 |
| 3,000+ | ₹17.97 | ₹53,910.00 |
| 6,000+ | ₹17.04 | ₹1,02,240.00 |
5 × ₹32.31
₹161.55
excl. GST
₹190.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP1045UFY4-7
₹161.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 266pF
- Ciss-Input Capacitance
- 1.291nF
- Pd - Power Dissipation
- 1.7W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 5.5A
- Reverse Transfer Capacitance (Crss)
- 242pF
- RDS(on)
- 75mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.7nC@8V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
This next-generation MOSFET is designed to minimize on-resistance (RDS(on)) while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- DC-DC converter
- Power management function
- Analog switch
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- ESD protection up to 3kV
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "Green" device
- AEC-Q101 qualified, high reliability
