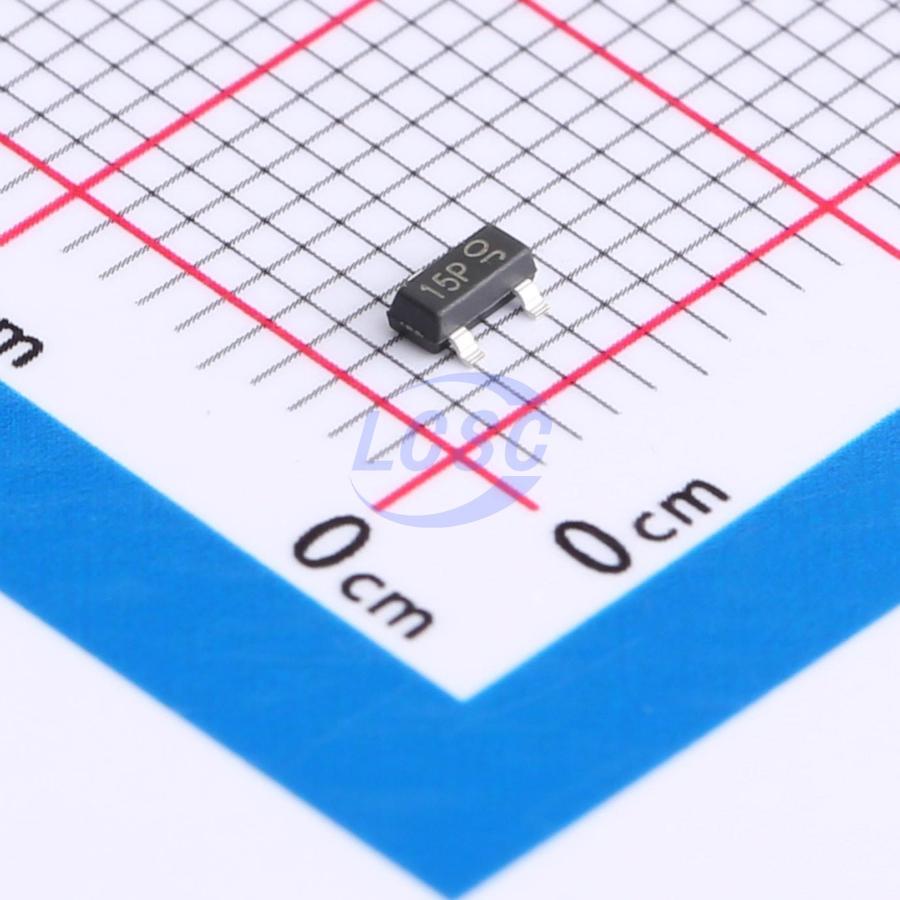

DMP1045UQ-7
P-Channel 12V 5.2A 1.3W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 12V 5.2A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMP1045UQ-7
- Store part #
- C706746
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C706746
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.97 | ₹164.85 |
| 50+ | ₹27.15 | ₹1,357.50 |
| 150+ | ₹24.65 | ₹3,697.50 |
| 500+ | ₹21.54 | ₹10,770.00 |
| 3,000+ | ₹19.46 | ₹58,380.00 |
| 6,000+ | ₹18.63 | ₹1,11,780.00 |
5 × ₹32.97
₹164.85
excl. GST
₹194.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP1045UQ-7
₹164.85 for 5 + GST
Specifications
- Drain to Source Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 504pF
- Current - Continuous Drain(Id)
- 5.2A
- Ciss-Input Capacitance
- 1.357nF
- Pd - Power Dissipation
- 1.3W
- Reverse Transfer Capacitance (Crss)
- 255pF
- RDS(on)
- 26mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 15.8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 550mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
This MOSFET is designed to meet the stringent demands of automotive applications. Compliant with AEC-Q101 and supported by PPAP, it is ideal for use in DC-DC converters, BLDC motors, and load switches.
Applications
- DC-DC converters
- Brushless DC (BLDC) motors
- Load switches
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- ESD protection
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "green" device
- Suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP documentation available, manufactured in IATF 16949 certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP1045U-7#C177033DIODES · SOT-23 | DIODES | SOT-23 | 9,905 | ₹31.14 · 9,905 in stock | View |
 | HSS2307#C845591HUASHUO · SOT-23L | HUASHUO | SOT-23L | 2,835 | ₹10.90 · 2,835 in stock | View |
 | PJM09P20SC#C41784032PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 370 | ₹9.05 · 370 in stock | View |
 | MOT2319B2#C52988970MOT · SOT-23 | MOT | SOT-23 | 3,000 | ₹9.27 · 3,000 in stock | View |
 | MOT2319A3#C52988973MOT · SOT-23A-3L | MOT | SOT-23A-3L | 20 | ₹10.31 · 20 in stock | View |
