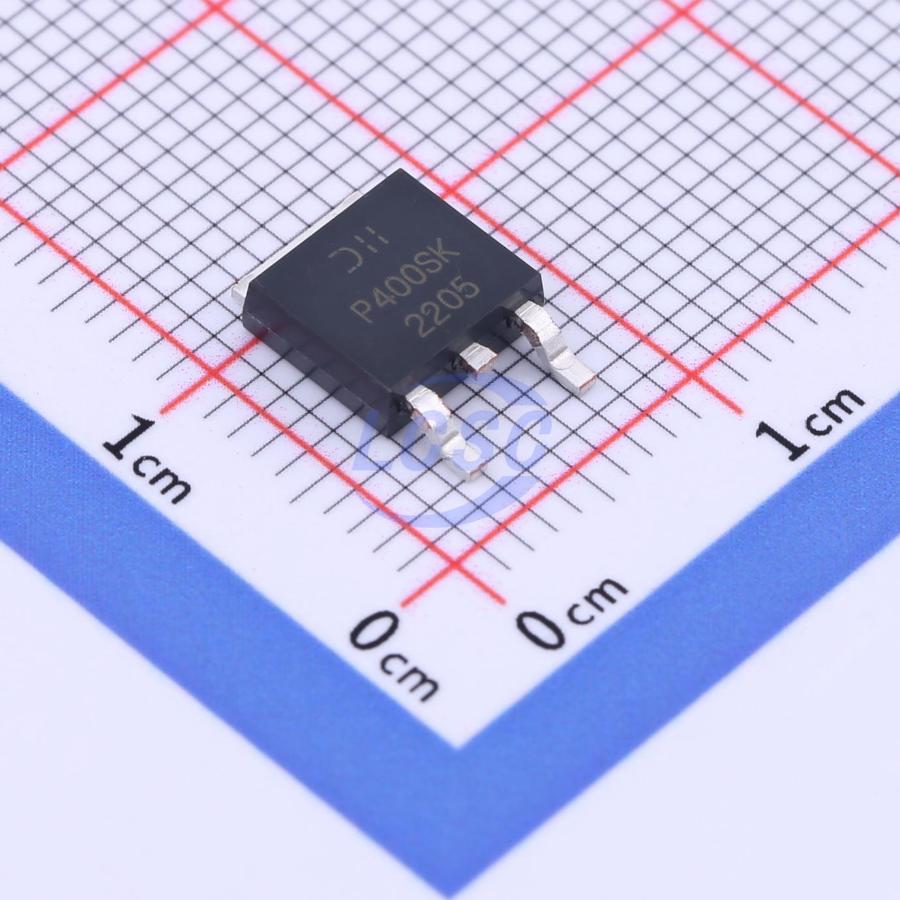

DMP10H400SK3-13
100V 9A 42W Surface Mount TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
MOSFET 100V 9A TO-252(DPAK)
- Manufacturer
- DIODES
- Manufacturer part #
- DMP10H400SK3-13
- Store part #
- C177034
- Package / case
- TO-252(DPAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,823 in stock
#C177034
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.49 | ₹78.49 |
| 10+ | ₹63.32 | ₹633.20 |
| 30+ | ₹57.03 | ₹1,710.90 |
| 100+ | ₹49.00 | ₹4,900.00 |
| 500+ | ₹45.33 | ₹22,665.00 |
| 1,000+ | ₹43.16 | ₹43,160.00 |
1 × ₹78.49
₹78.49
excl. GST
₹92.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP10H400SK3-13
₹78.49 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 42pF
- Ciss-Input Capacitance
- 1.239nF
- Pd - Power Dissipation
- 42W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 28pF
- RDS(on)
- 300mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.4nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.24V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.51 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (Rds(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Analog Switch
Key features
- Low On-Resistance
- Low Input Capacitance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM10013PHK3#C5342397TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 475 | ₹59.89 · 475 in stock | View |
 | DH300PG-B#C41367281DOINGTER · TO-252 | DOINGTER | TO-252 | 690 | ₹14.33 · 690 in stock | View |
 | CMD5931#C5203736Cmos · TO-252 | Cmos | TO-252 | 90 | ₹34.20 · 90 in stock | View |
 | DOD10P10#C42412121DOINGTER · TO-252 | DOINGTER | TO-252 | 280 | ₹13.68 · 280 in stock | View |
 | CMD12P10S#C5203737Cmos · TO-252 | Cmos | TO-252 | 135 | ₹30.42 · 135 in stock | View |
