DIODESDatasheet (PDF)

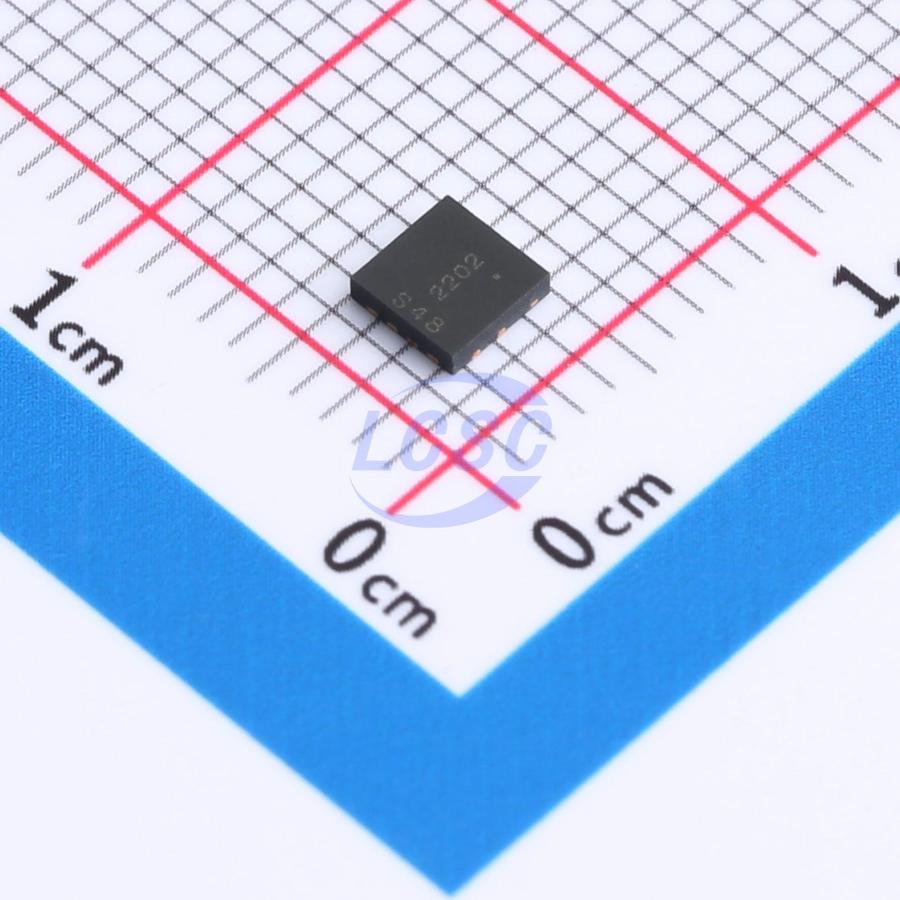

DMP2005UFG-13
P-Channel 20V 89A 48W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 20V 89A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2005UFG-13
- Store part #
- C2922355
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
179 in stock
#C2922355
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.41 | ₹173.41 |
| 10+ | ₹146.47 | ₹1,464.70 |
| 30+ | ₹131.69 | ₹3,950.70 |
| 100+ | ₹115.18 | ₹11,518.00 |
| 500+ | ₹107.78 | ₹53,890.00 |
| 1,000+ | ₹104.31 | ₹1,04,310.00 |
1 × ₹173.41
₹173.41
excl. GST
₹204.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2005UFG-13
₹173.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 650pF
- Ciss-Input Capacitance
- 4.67nF
- Pd - Power Dissipation
- 48W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 89A
- Reverse Transfer Capacitance (Crss)
- 550pF
- RDS(on)
- 14mΩ@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 125nC@10V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 900mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Load Switch
- Power Management Functions
Key features
- Low RDS(ON) – ensures on state losses are minimized
- Small form factor, thermally efficient package enables higher density end products (PowerDI)
- Occupies just 33% of the board area occupied by SO - 8 enabling smaller end product
- Lead - Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC - Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSCE2631#C2828499HUASHUO · DFN-8(3.3x3.3) | HUASHUO | DFN-8(3.3x3.3) | 1,899 | ₹82.44 · 1,899 in stock | View |
 | DMP2005UFG-7#C6225402DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 2 | ₹127.93 · 2 in stock | View |
 | DMP2004UFG-7#C19949915DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 39 | ₹367.56 · 39 in stock | View |
 | SISS65DN-T1-GE3#C3279456VISHAY · PowerPAK1212-8S | VISHAY | PowerPAK1212-8S | 33 | ₹175.72 · 33 in stock | View |
 | CSD25404Q3T#C202154TI · VSON-CLIP-8(3.3x3.3) | TI | VSON-CLIP-8(3.3x3.3) | 58 | ₹169.21 · 58 in stock | View |
