DIODESDatasheet (PDF)

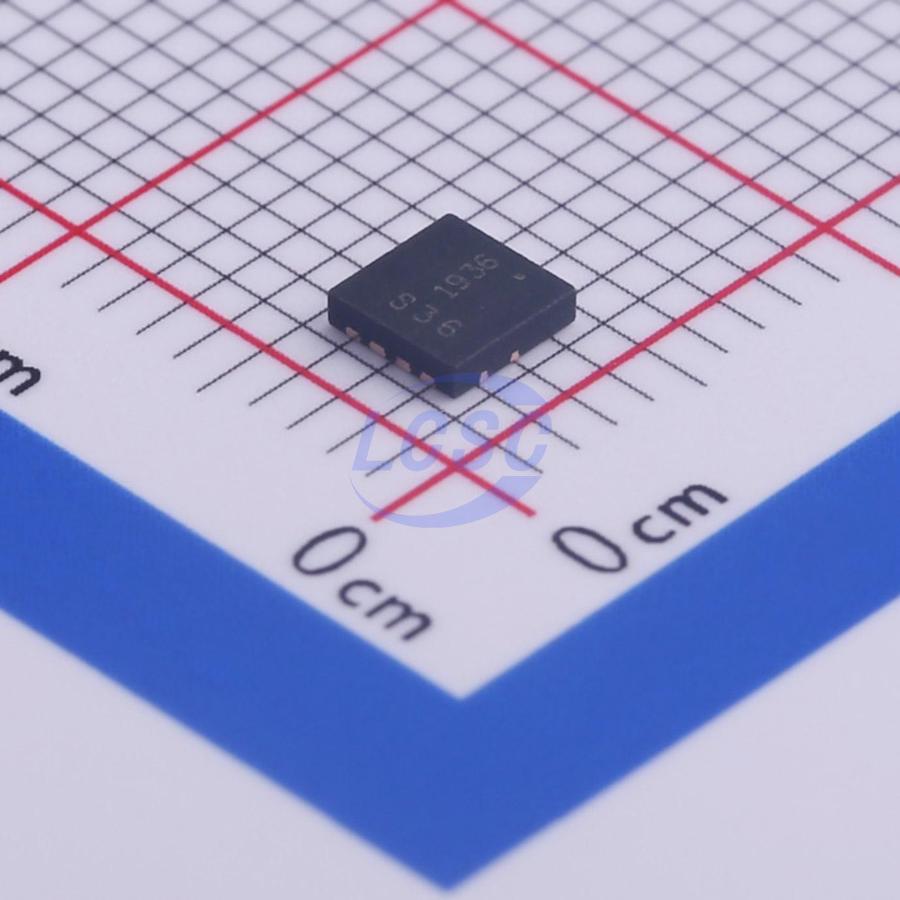

DMP2008UFG-7
P-Channel 20V 14A 2.4W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 20V 14A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2008UFG-7
- Store part #
- C461052
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
201 in stock
#C461052
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹180.92 | ₹180.92 |
| 10+ | ₹156.13 | ₹1,561.30 |
| 30+ | ₹142.65 | ₹4,279.50 |
| 100+ | ₹127.43 | ₹12,743.00 |
| 500+ | ₹120.47 | ₹60,235.00 |
| 1,000+ | ₹117.43 | ₹1,17,430.00 |
1 × ₹180.92
₹180.92
excl. GST
₹213.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMP2008UFG-7
₹180.92 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 635pF
- Ciss-Input Capacitance
- 6.909nF
- Pd - Power Dissipation
- 2.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 14A
- Reverse Transfer Capacitance (Crss)
- 563pF
- RDS(on)
- 8mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 72nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 400mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load Switch
- Power Management Functions
Key features
- Low RDS(ON) – ensures on state losses are minimized
- Small form factor thermally efficient package enables higher density end products Occupies just 33% of the board area occupied by SO-8 enabling smaller end product
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device Qualified to AEC-Q101 standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIS447DN-T1-GE3#C727563VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 170 | ₹66.94 · 170 in stock | View |
| SIS435DNT-T1-GE3#C727493VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 20 | ₹70.90 · 20 in stock | View | |
 | DMP2007UFG-7#C5224051DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 1 | ₹104.15 · 1 in stock | View |
 | YJQ55P02A#C919547YANGJIE · DFN3333-8L | YANGJIE | DFN3333-8L | 4,855 | ₹46.24 · 4,855 in stock | View |
 | PTQ45P02#C692866PUOLOP · PDFN3333-8 | PUOLOP | PDFN3333-8 | 30 | ₹33.64 · 30 in stock | View |
