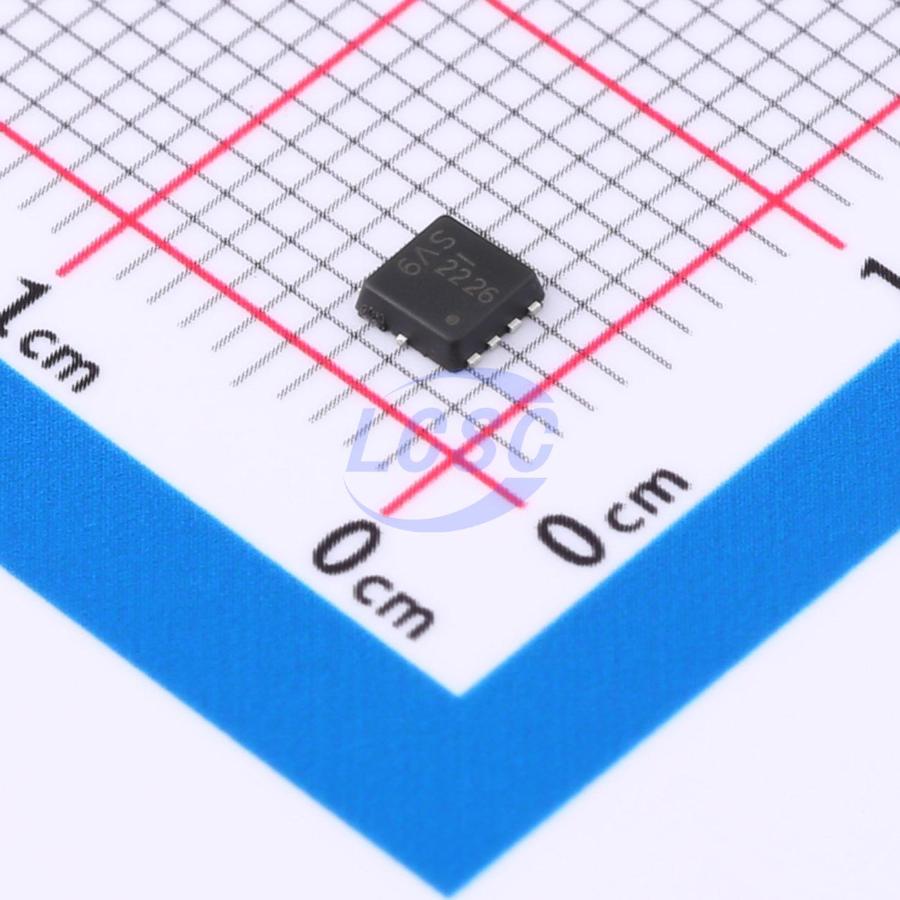

DMP2010UFV-7
P-Channel 20V 50A 2W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 20V 50A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2010UFV-7
- Store part #
- C177036
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
386 in stock
#C177036
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.97 | ₹64.97 |
| 10+ | ₹51.50 | ₹515.00 |
| 30+ | ₹45.86 | ₹1,375.80 |
| 100+ | ₹38.68 | ₹3,868.00 |
| 500+ | ₹35.43 | ₹17,715.00 |
| 1,000+ | ₹33.68 | ₹33,680.00 |
1 × ₹64.97
₹64.97
excl. GST
₹76.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMP2010UFV-7
₹64.97 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 527pF
- Ciss-Input Capacitance
- 3.35nF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 460pF
- RDS(on)
- 12.5mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 103nC@10V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load Switch
- Power Management Functions
Key features
- Low RDS(ON) – Ensures On State Losses Are Minimized
- Small Form Factor Thermally Efficient Package Enables Higher Density End Products Occupies Just 33% of The Board Area Occupied by SO-8 Enabling Smaller End Product
- Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMP2010UFV-13#C5245350DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 3 | ₹43.91 · 3 in stock | View | |
 | HSBB60P02#C28314516HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 1,535 | ₹32.97 · 1,535 in stock | View |
 | XR55P02D#C42456902XNRUSEMI · PDFN3333-8L | XNRUSEMI | PDFN3333-8L | 4,670 | ₹12.59 · 4,670 in stock | View |
 | TPM3050PD8#C5311003TECH PUBLIC · PDFN3333-8 | TECH PUBLIC | PDFN3333-8 | 275 | ₹24.46 · 275 in stock | View |
 | TPM3050PD8-1#C5311004TECH PUBLIC · PDFN3333-8 | TECH PUBLIC | PDFN3333-8 | 370 | ₹43.02 · 370 in stock | View |
