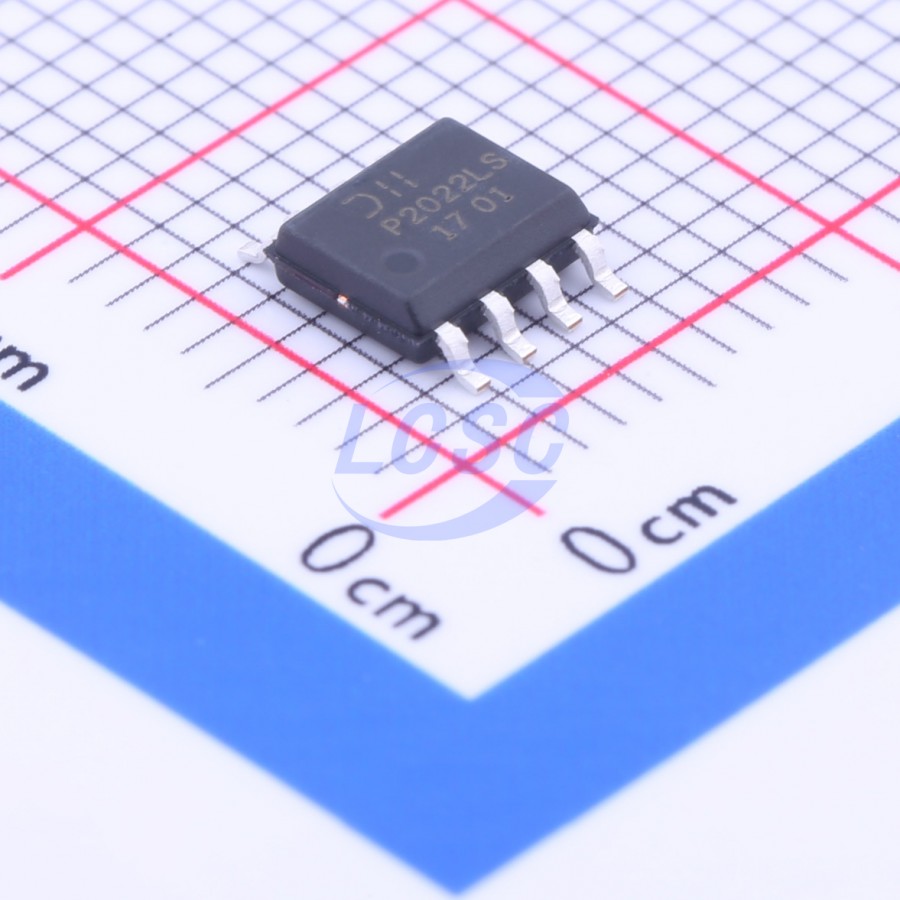

DMP2022LSS-13
P-Channel 20V 10A 2.5W Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET P-CH 20V 10A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2022LSS-13
- Store part #
- C154919
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C154919
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.83 | ₹123.83 |
| 10+ | ₹103.56 | ₹1,035.60 |
| 30+ | ₹93.31 | ₹2,799.30 |
| 100+ | ₹83.28 | ₹8,328.00 |
| 500+ | ₹52.76 | ₹26,380.00 |
| 1,000+ | ₹49.71 | ₹49,710.00 |
1 × ₹123.83
₹123.83
excl. GST
₹146.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP2022LSS-13
₹123.83 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 594pF
- Ciss-Input Capacitance
- 2.444nF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 556pF
- RDS(on)
- 22mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 28.1nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
Key features
- Low On-Resistance: 13mΩ @ VGS = -10V; 16mΩ @ VGS = -4.5V; 22mΩ @ VGS = -2.5V
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability. An Automotive-Compliant Part is Available Under Separate Datasheet (DMP2022LSSQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP20P08P8#C41355003Siliup · SOP-8L | Siliup | SOP-8L | 3,865 | ₹8.11 · 3,865 in stock | View |
 | CMS15P02#C55231736Cmos · SOP-8 | Cmos | SOP-8 | 200 | ₹25.03 · 200 in stock | View |
 | AO4485#C5197352TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,970 | ₹29.48 · 3,970 in stock | View |
 | FDS4685#C5197353TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 3,650 | ₹45.75 · 3,650 in stock | View |
 | SI4401DDY#C5197357TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 940 | ₹51.35 · 940 in stock | View |
