DIODESDatasheet (PDF)

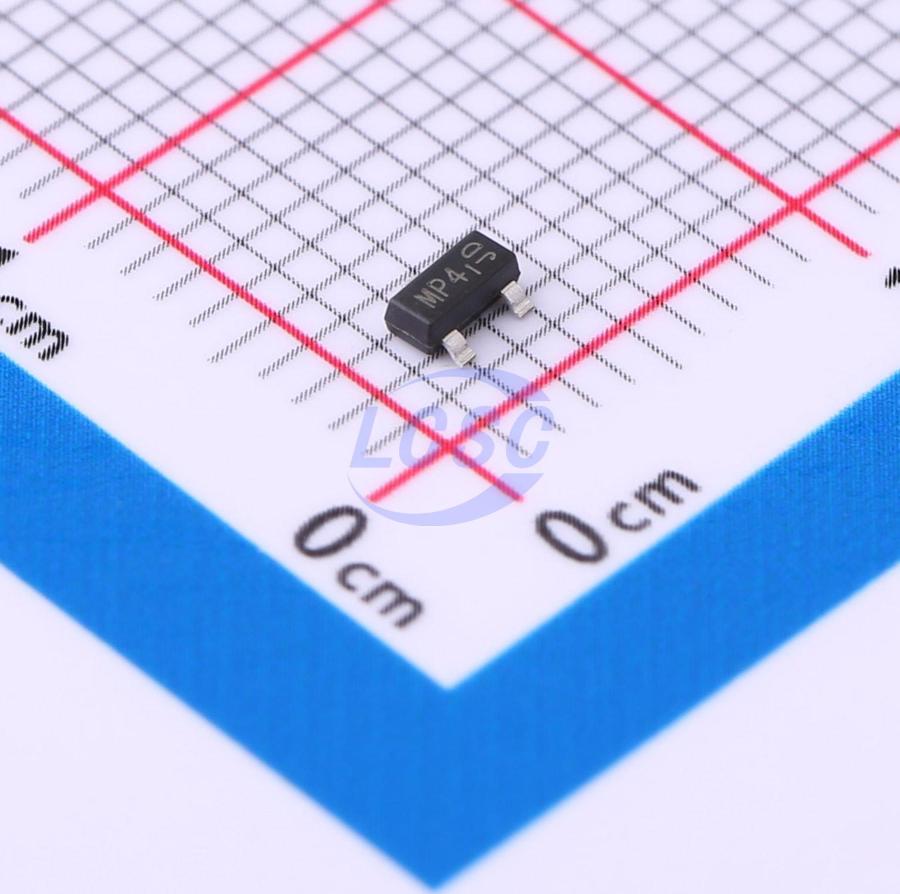

DMP2037U-7
P-Channel 20V 6.1A 0.8W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 6.1A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2037U-7
- Store part #
- C5438914
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
647 in stock
#C5438914
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.94 | ₹71.94 |
| 10+ | ₹57.34 | ₹573.40 |
| 30+ | ₹50.14 | ₹1,504.20 |
| 100+ | ₹42.96 | ₹4,296.00 |
| 500+ | ₹38.59 | ₹19,295.00 |
| 1,000+ | ₹36.41 | ₹36,410.00 |
1 × ₹71.94
₹71.94
excl. GST
₹84.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2037U-7
₹71.94 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 6.1A
- Ciss-Input Capacitance
- 803pF
- Pd - Power Dissipation
- 800mW
- Reverse Transfer Capacitance (Crss)
- 51pF
- RDS(on)
- 28mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 14.5nC@8V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Load Switch
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSS2307#C845591HUASHUO · SOT-23L | HUASHUO | SOT-23L | 2,835 | ₹10.90 · 2,835 in stock | View |
 | MOT2305AB2#C53154934MOT · SOT-23 | MOT | SOT-23 | 2,870 | ₹8.26 · 2,870 in stock | View |
 | 20P07A#C49318216GOODWORK · SOT-23-3L | GOODWORK | SOT-23-3L | 18,990 | ₹9.45 · 18,990 in stock | View |
 | PJM09P20SC#C41784032PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 370 | ₹9.05 · 370 in stock | View |
 | AP2335#C2828582ALLPOWER · SOT-23-3 | ALLPOWER | SOT-23-3 | 3,770 | ₹11.13 · 3,770 in stock | View |
