DIODESDatasheet (PDF)

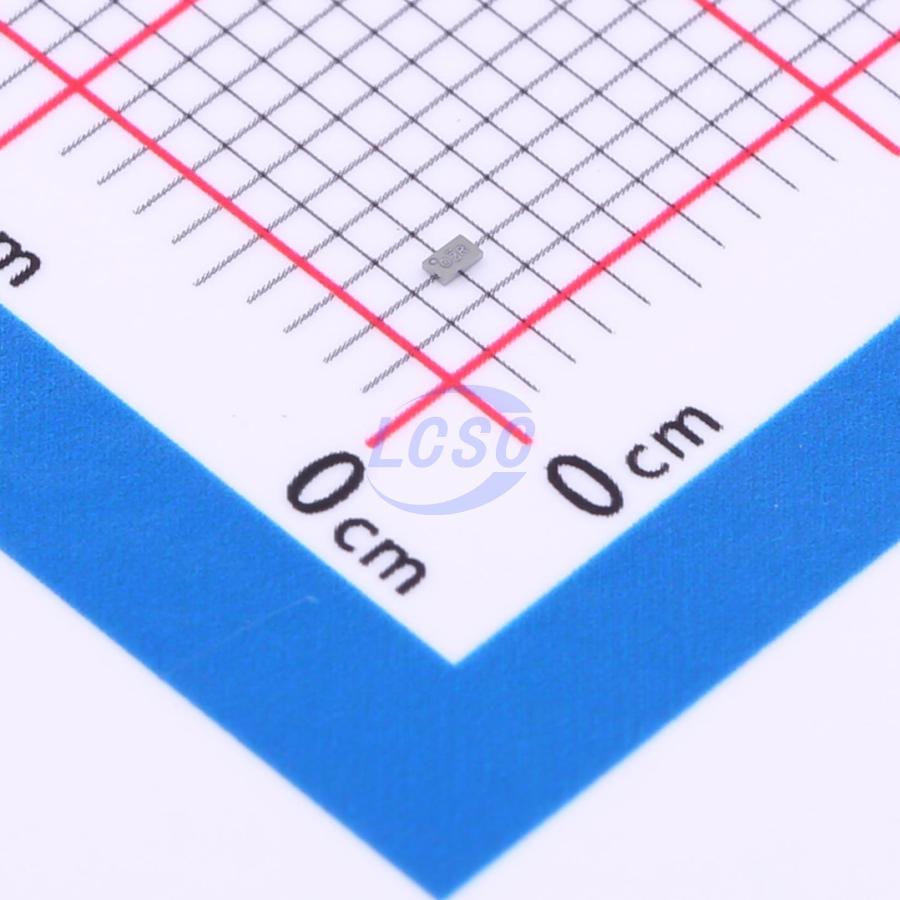

DMP2078LCA3-7
P-Channel 20V 3.4A 0.81W Surface Mount X4-DSN1006-3
X4-DSN1006-3ROHS3 CompliantActive
MOSFET P-CH 20V 3.4A X4-DSN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2078LCA3-7
- Store part #
- C5125501
- Package / case
- X4-DSN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C5125501
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.04 | ₹83.04 |
| 10+ | ₹67.43 | ₹674.30 |
| 30+ | ₹59.42 | ₹1,782.60 |
| 100+ | ₹51.82 | ₹5,182.00 |
| 500+ | ₹47.06 | ₹23,530.00 |
| 1,000+ | ₹44.66 | ₹44,660.00 |
1 × ₹83.04
₹83.04
excl. GST
₹97.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP2078LCA3-7
₹83.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 78pF
- Current - Continuous Drain(Id)
- 3.4A
- Ciss-Input Capacitance
- 228pF
- Pd - Power Dissipation
- 810mW
- Reverse Transfer Capacitance (Crss)
- 6.4pF
- RDS(on)
- 64mΩ@8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.6nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 900mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.009 g
Overview
This next-generation MOSFET is designed to minimize footprint in handheld and mobile applications. It can replace many small-signal MOSFETs with an extremely compact footprint.
Applications
- Battery Management
- Load Switch
- Battery Protection
- Handheld and Mobile Applications
Key features
- Low Qg and Qgd
- Compact package
- Low profile, height only 0.20mm
- Fully lead-free, RoHS compliant
- Halogen and antimony free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP137N3T5G#C2936675LRC · SOT-883-3 | LRC | SOT-883-3 | 9,600 | ₹16.48 · 9,600 in stock | View |
 | DMP2079LCA3-7#C6021875DIODES · X4-DSN1006-3 | DIODES | X4-DSN1006-3 | 507 | ₹91.72 · 507 in stock | View |
| DMP2077UCA3-7#C5245359DIODES · X4-DSN1006-3 | DIODES | X4-DSN1006-3 | On request | ₹101.02 · 0 in stock | View | |
