DIODESDatasheet (PDF)

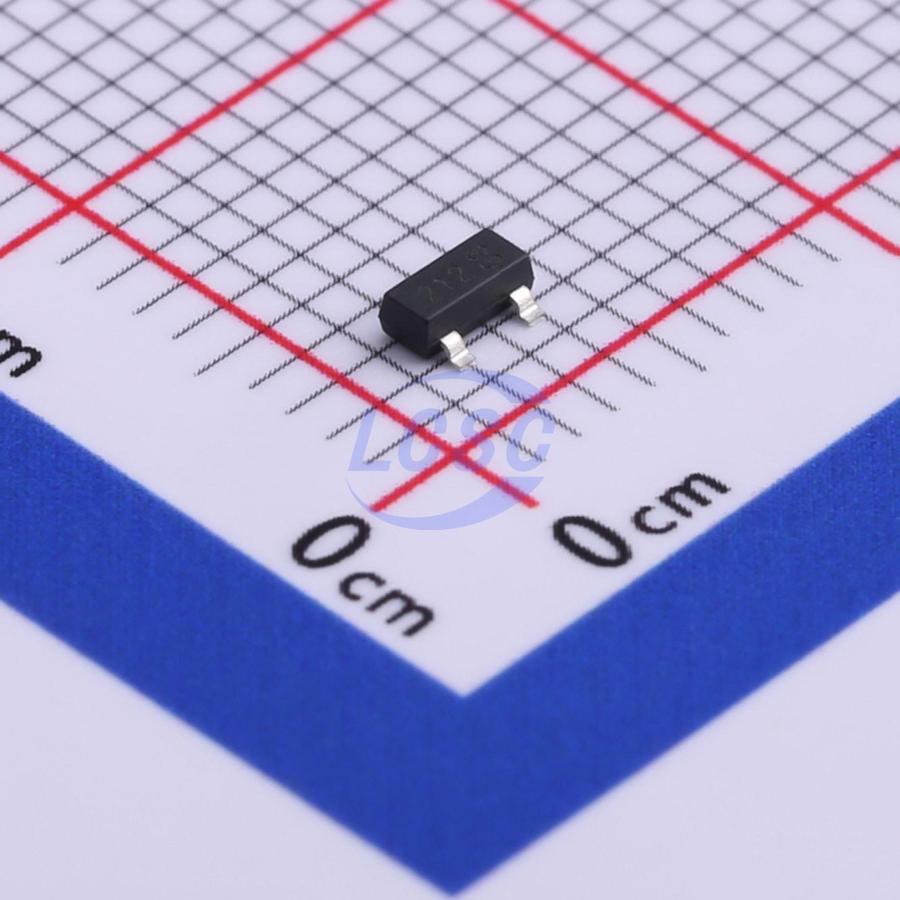

DMP2120U-7
P-Channel 20V 3.8A 0.8W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 3.8A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2120U-7
- Store part #
- C560272
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,377 in stock
#C560272
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.09 | ₹69.09 |
| 10+ | ₹54.97 | ₹549.70 |
| 30+ | ₹47.80 | ₹1,434.00 |
| 100+ | ₹40.85 | ₹4,085.00 |
| 500+ | ₹36.73 | ₹18,365.00 |
| 1,000+ | ₹34.54 | ₹34,540.00 |
1 × ₹69.09
₹69.09
excl. GST
₹81.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2120U-7
₹69.09 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3.8A
- Ciss-Input Capacitance
- 487pF
- Pd - Power Dissipation
- 800mW
- Reverse Transfer Capacitance (Crss)
- 53pF
- RDS(on)
- 90mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 6.3nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 400mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.023 g
Overview
This MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Battery Charging - Power Management Functions - DC-DC Converters - Portable Power Adapters
Key features
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP2305LT2C#C41354959Siliup · SOT-23 | Siliup | SOT-23 | 100 | ₹1.87 · 100 in stock | View |
 | DMP2120U#C5122017TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,340 | ₹11.74 · 2,340 in stock | View |
 | HSS2301B#C518795HUASHUO · SOT-23 | HUASHUO | SOT-23 | 160 | ₹2.98 · 160 in stock | View |
 | DMP2045U-7#C459541DIODES · SOT-23 | DIODES | SOT-23 | 14,680 | ₹23.39 · 14,680 in stock | View |
