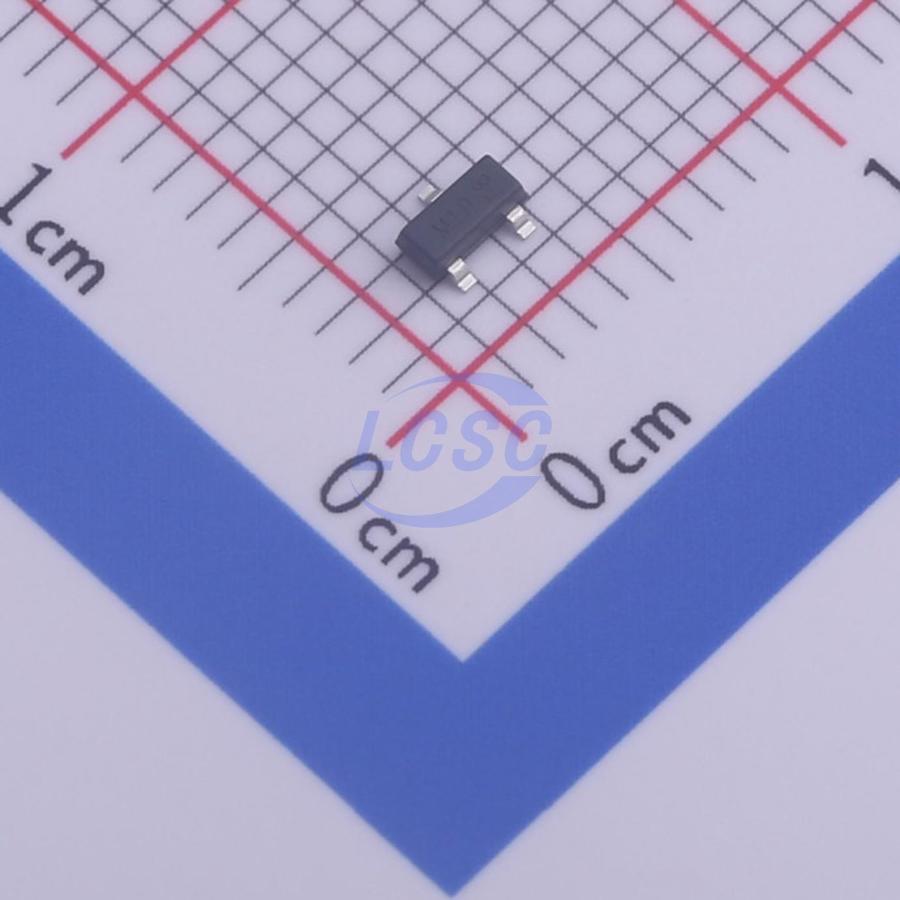

DMP2123LQ-7
P-Channel 20V 3A 1.4W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 20V 3A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2123LQ-7
- Store part #
- C461064
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35 in stock
#C461064
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.91 | ₹94.55 |
| 50+ | ₹18.50 | ₹925.00 |
| 150+ | ₹18.23 | ₹2,734.50 |
| 500+ | ₹17.95 | ₹8,975.00 |
5 × ₹18.91
₹94.55
excl. GST
₹111.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2123LQ-7
₹94.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 128pF
- Ciss-Input Capacitance
- 443pF
- Pd - Power Dissipation
- 1.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 101pF
- RDS(on)
- 123mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.3nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.25V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
Key features
- Low RDS(ON) 72mΩ @ VGS = -4.5V
- 108mΩ @ VGS = -2.7V
- 123mΩ @ VGS = -2.5V
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMP2130L-7#C780839DIODES · SOT-23 | DIODES | SOT-23 | 920 | ₹45.35 · 920 in stock | View | |
 | KIRLML6402TRPBF#C2891690KUU · SOT-23 | KUU | SOT-23 | 3,730 | ₹7.37 · 3,730 in stock | View |
 | WPM2341-3/TR#C20608781KUU · SOT-23 | KUU | SOT-23 | On request | ₹7.59 · 0 in stock | View |
 | HSS2301B#C518795HUASHUO · SOT-23 | HUASHUO | SOT-23 | 160 | ₹2.98 · 160 in stock | View |
 | BSS215P-JSM#C7462823JSMSEMI · SOT-23-3 | JSMSEMI | SOT-23-3 | 1,640 | ₹7.29 · 1,640 in stock | View |
