DIODESDatasheet (PDF)

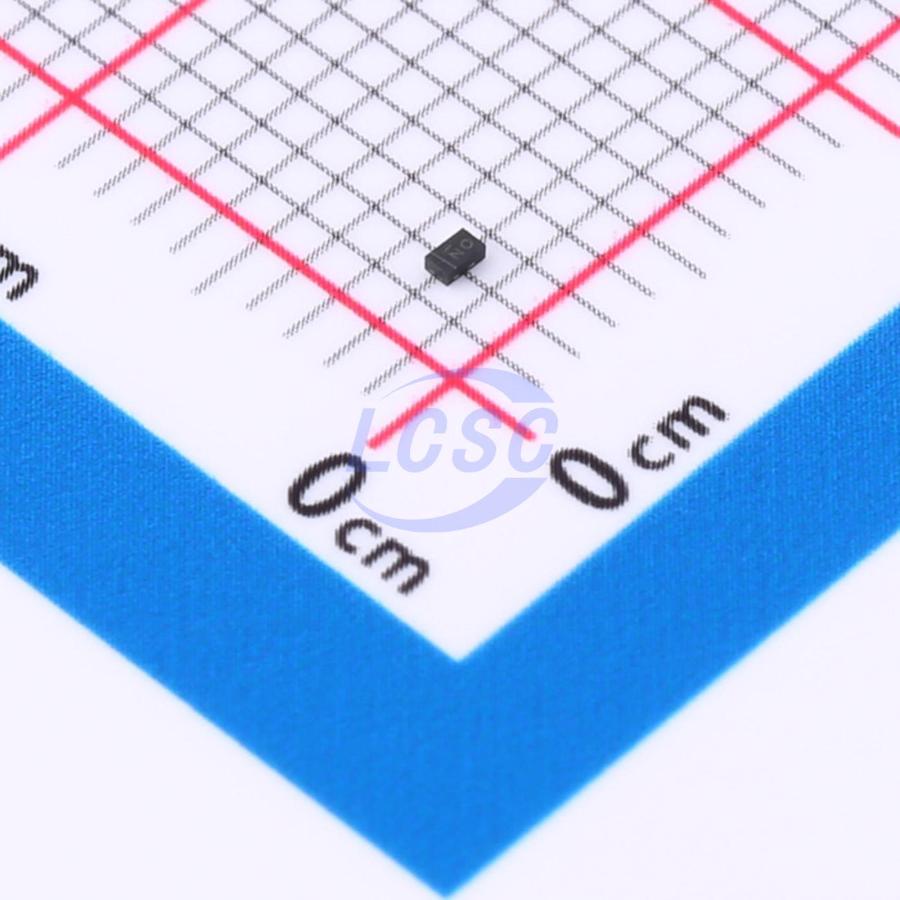

DMP21D0UFB4-7R
P-Channel 20V 770mA 430mW Surface Mount X2-DFN1006-3
X2-DFN1006-3ROHS3 CompliantActive
MOSFET P-CH 20V 770mA X2-DFN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP21D0UFB4-7R
- Store part #
- C461066
- Package / case
- X2-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
440 in stock
#C461066
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.67 | ₹58.35 |
| 50+ | ₹11.42 | ₹571.00 |
| 150+ | ₹11.25 | ₹1,687.50 |
| 500+ | ₹11.07 | ₹5,535.00 |
5 × ₹11.67
₹58.35
excl. GST
₹68.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP21D0UFB4-7R
₹58.35 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 13.7pF
- Current - Continuous Drain(Id)
- 770mA
- Ciss-Input Capacitance
- 76.5pF
- Pd - Power Dissipation
- 430mW
- Reverse Transfer Capacitance (Crss)
- 10.7pF
- RDS(on)
- 495mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.5nC@8V
- Gate Threshold Voltage (Vgs(th))
- 700mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Portable electronic devices
Key features
- 0.6 mm² footprint — 13x smaller than SOT23
- 0.4 mm thickness — ideal for slim applications
- Low gate threshold voltage
- Fast switching speed
- Gate ESD protection
- Fully lead-free and RoHS compliant
- Halogen and antimony free, "green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP21D0UFB4-7B#C155329DIODES · X2-DFN1006-3 | DIODES | X2-DFN1006-3 | 20,425 | ₹9.13 · 20,425 in stock | View |
 | LW3139BDA#C54740791Lewa Micro · DFN1006-3L | Lewa Micro | DFN1006-3L | 9,960 | ₹3.56 · 9,960 in stock | View |
 | BA3139K-KUU#C54443142KUU · DFN1006-3L | KUU | DFN1006-3L | 9,740 | ₹3.24 · 9,740 in stock | View |
 | LP137N3T5G#C2936675LRC · SOT-883-3 | LRC | SOT-883-3 | 9,600 | ₹16.48 · 9,600 in stock | View |
 | DMP2079LCA3-7#C6021875DIODES · X4-DSN1006-3 | DIODES | X4-DSN1006-3 | 507 | ₹91.72 · 507 in stock | View |
