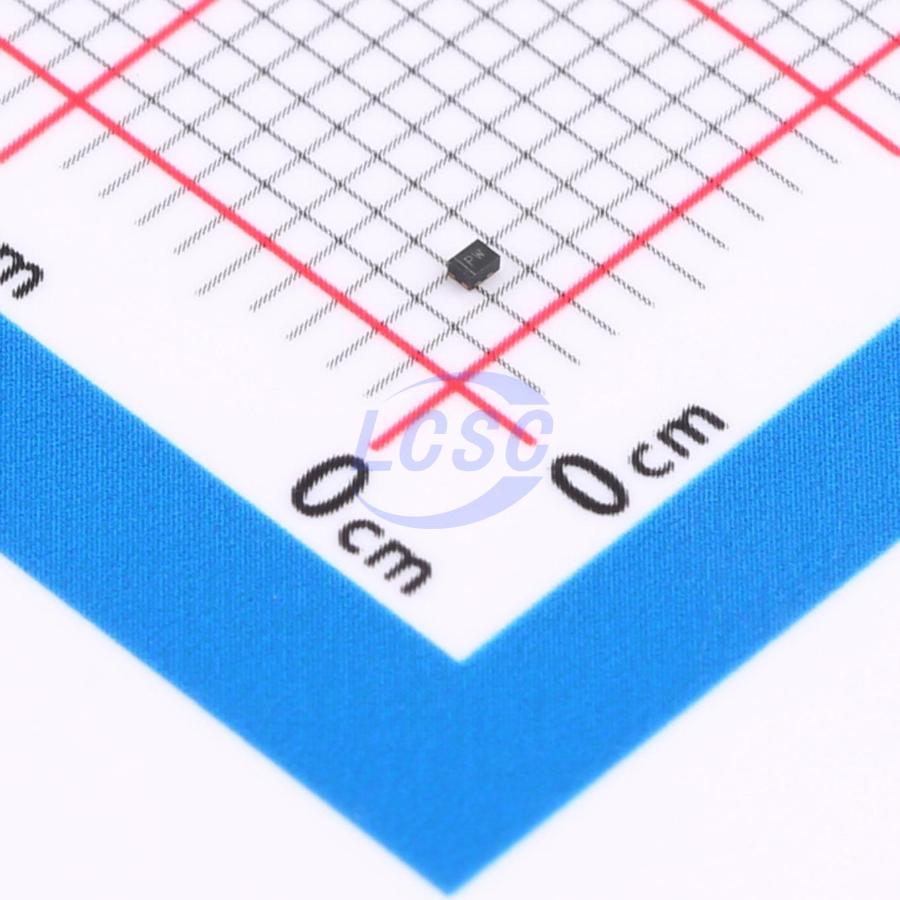

DMP22D4UFA-7B
P-Channel 20V 330mA 400mW Surface Mount X2-DFN0806-3
X2-DFN0806-3ROHS3 CompliantActive
MOSFET P-CH 20V 330mA X2-DFN0806-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP22D4UFA-7B
- Store part #
- C2983692
- Package / case
- X2-DFN0806-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
710 in stock
#C2983692
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.20 | ₹101.00 |
| 50+ | ₹16.17 | ₹808.50 |
| 150+ | ₹14.14 | ₹2,121.00 |
| 500+ | ₹12.63 | ₹6,315.00 |
| 2,500+ | ₹11.42 | ₹28,550.00 |
| 5,000+ | ₹10.81 | ₹54,050.00 |
5 × ₹20.20
₹101.00
excl. GST
₹119.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP22D4UFA-7B
₹101.00 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 4.2pF
- Ciss-Input Capacitance
- 28.7pF
- Pd - Power Dissipation
- 400mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 330mA
- Reverse Transfer Capacitance (Crss)
- 2.9pF
- RDS(on)
- 5Ω@1.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 400pC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.007 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- General Purpose Interfacing
- Switch Power Management Functions
- Analog Switch
Key features
- Low Package Profile, 0.4mm Maximum Package height
- 0.48mm² package footprint, 16 times smaller than SOT23
- Low On-Resistance
- Very low Gate Threshold Voltage, 1.0V max
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP21D2UFA-7B#C5245365DIODES · X2-DFN0806-3 | DIODES | X2-DFN0806-3 | 70 | ₹26.67 · 70 in stock | View |
