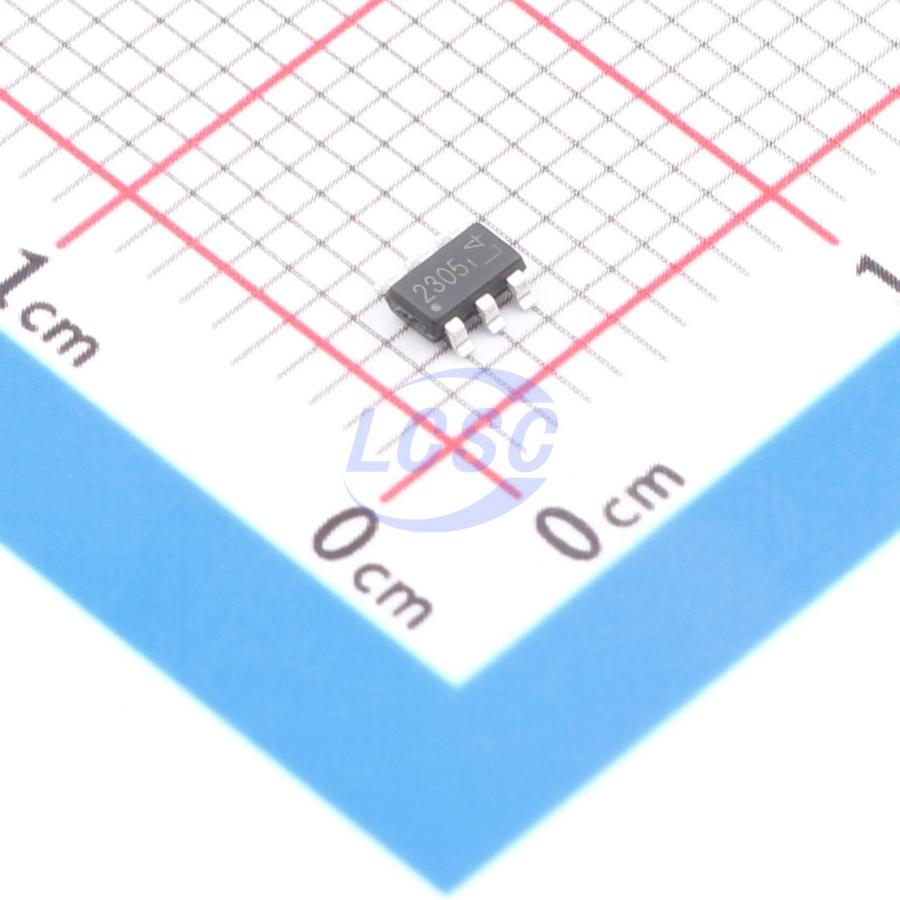

DMP2305UVT-7
P-Channel 20V 4.23A 1.25W Surface Mount TSOT-26
TSOT-26ROHS3 CompliantActive
MOSFET P-CH 20V 4.23A TSOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- DMP2305UVT-7
- Store part #
- C6540266
- Package / case
- TSOT-26
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C6540266
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.51 | ₹252.55 |
| 50+ | ₹39.81 | ₹1,990.50 |
| 150+ | ₹35.22 | ₹5,283.00 |
| 500+ | ₹29.49 | ₹14,745.00 |
| 3,000+ | ₹26.94 | ₹80,820.00 |
| 6,000+ | ₹25.41 | ₹1,52,460.00 |
5 × ₹50.51
₹252.55
excl. GST
₹298.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP2305UVT-7
₹252.55 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4.23A
- Ciss-Input Capacitance
- 727pF
- Pd - Power Dissipation
- 1.25W
- Reverse Transfer Capacitance (Crss)
- 64pF
- RDS(on)
- 60mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Motor Control
- Power management functions
- Analog Switch
Key features
- Low Input Capacitance
- Low On-Resistance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMN52XPX#C552990Nexperia · SOT-457 | Nexperia | SOT-457 | 45 | ₹74.43 · 45 in stock | View |
 | RSQ035P03TR#C559665ROHM · SOT-457-6 | ROHM | SOT-457-6 | 1,595 | ₹27.03 · 1,595 in stock | View |
 | HL6401W6#C54305283R+O · SOT-23-6L | R+O | SOT-23-6L | 3,030 | ₹9.08 · 3,030 in stock | View |
 | FH365P#C5159046XIN FEI HONG · SOT-23-6 | XIN FEI HONG | SOT-23-6 | 605 | ₹9.47 · 605 in stock | View |
| PMN42XPEAH-VB#C52148583VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 10 | ₹33.14 · 10 in stock | View | |
