DIODESDatasheet (PDF)

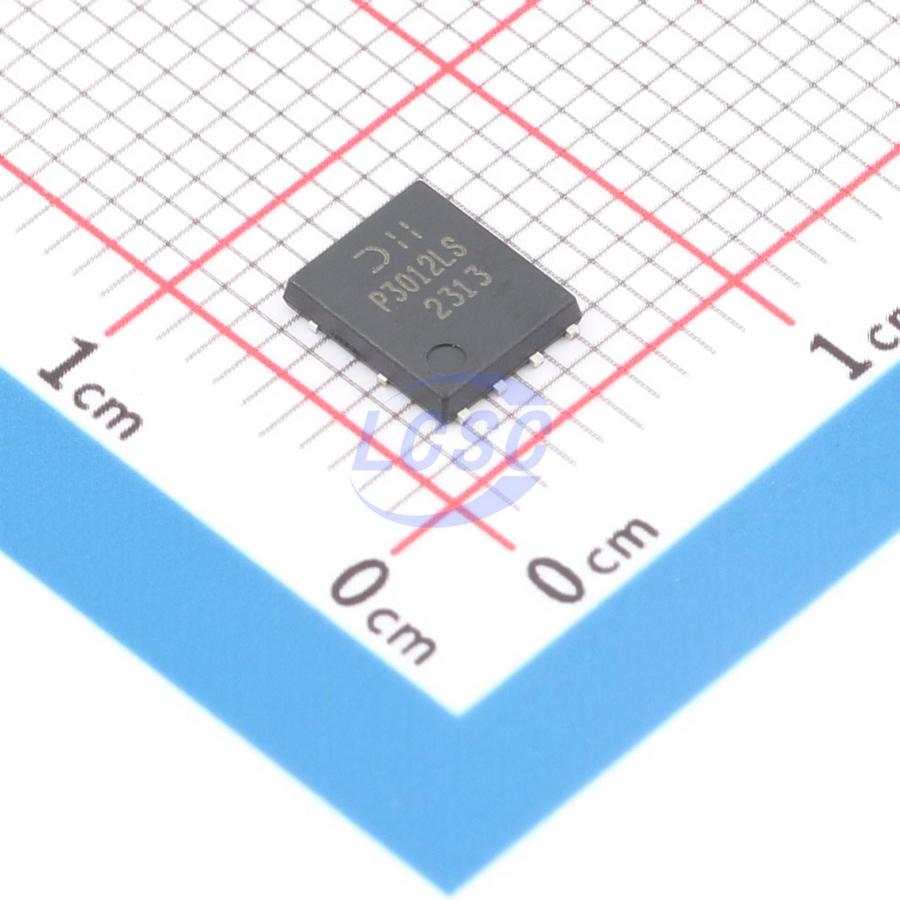

DMP3012LPS-13
P-Channel 30V 45A 2.36W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS CompliantActive
MOSFET P-CH 30V 45A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3012LPS-13
- Store part #
- C17476396
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17476396
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.17 | ₹126.17 |
| 10+ | ₹124.45 | ₹1,244.50 |
| 30+ | ₹123.38 | ₹3,701.40 |
| 100+ | ₹122.09 | ₹12,209.00 |
1 × ₹126.17
₹126.17
excl. GST
₹148.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP3012LPS-13
₹126.17 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 988pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 680pF
- Pd - Power Dissipation
- 2.36W
- Reverse Transfer Capacitance (Crss)
- 647pF
- RDS(on)
- 12mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 139nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
This next-generation 30V P-channel enhancement-mode MOSFET is designed to minimize on-resistance RDS(ON) while maintaining excellent switching performance. The device is ideally suited for notebook battery power management and load switching applications.
Applications
- Notebook battery power management
- DC-DC converter
- Load switch
Key features
- 4th generation TrenchFET power MOSFET
- 100% Rg and UIS tested
- Optimized Qgs/Qgd ratio for improved switching performance
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LWP3015AD5#C54740922Lewa Micro · PDFN-8L(5x6) | Lewa Micro | PDFN-8L(5x6) | 4,955 | ₹33.13 · 4,955 in stock | View |
 | HSBA3115#C701055HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,445 | ₹39.43 · 2,445 in stock | View |
 | DMP4011SPSQ-13#C5157848DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 3 | ₹249.57 · 3 in stock | View |
 | CMSA180P03#C22391072Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 40 | ₹91.71 · 40 in stock | View |
 | ND004PG#C55072649DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 32 | ₹65.32 · 32 in stock | View |
