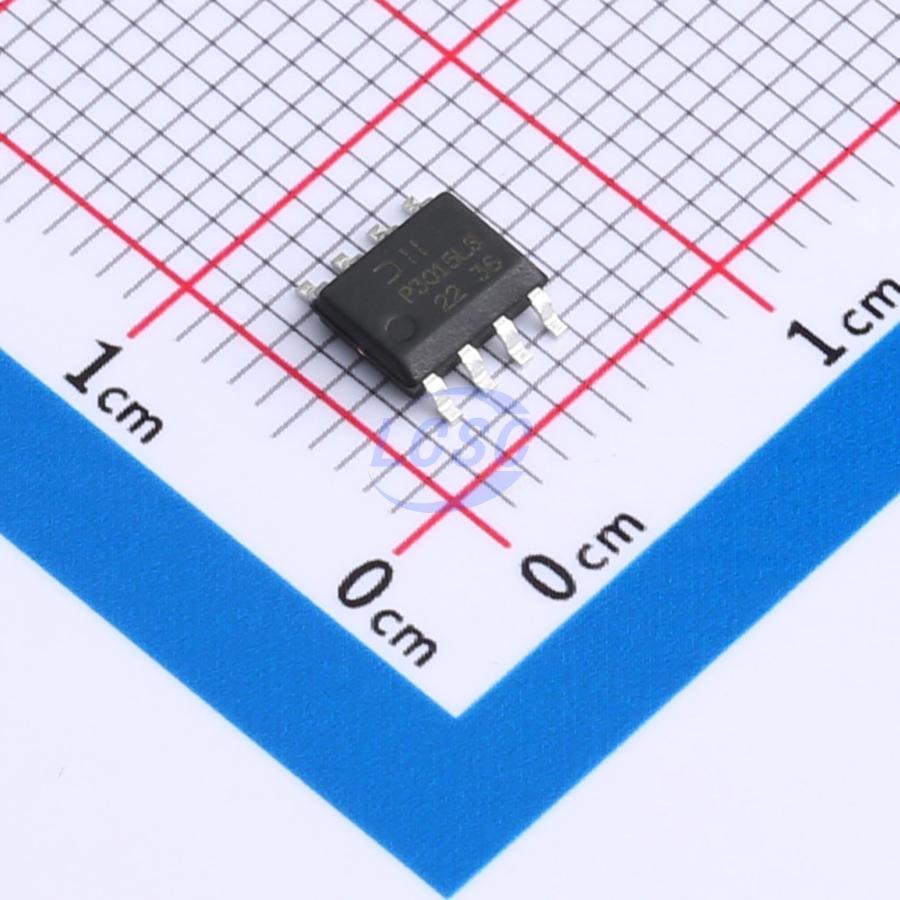

DMP3015LSSQ-13
P-Channel 30V 13A 2.5W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 30V 13A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3015LSSQ-13
- Store part #
- C780840
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C780840
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.07 | ₹162.07 |
| 10+ | ₹144.23 | ₹1,442.30 |
| 30+ | ₹135.42 | ₹4,062.60 |
| 100+ | ₹126.61 | ₹12,661.00 |
| 500+ | ₹121.23 | ₹60,615.00 |
| 1,000+ | ₹118.43 | ₹1,18,430.00 |
1 × ₹162.07
₹162.07
excl. GST
₹191.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP3015LSSQ-13
₹162.07 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 2.748nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 356pF
- RDS(on)
- 17mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 60.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power management functions
- DC-DC converters
Key features
- Low On-Resistance
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control
- AEC-Q101 qualified
- PPAP capable
- Manufactured in IATF16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP3015LSS-13#C508208DIODES · SO-8 | DIODES | SO-8 | 11 | ₹55.70 · 11 in stock | View |
 | LWP4015CS#C54740936Lewa Micro · SOP-8 | Lewa Micro | SOP-8 | 3,990 | ₹33.35 · 3,990 in stock | View |
 | IRF9317TR(UMW)#C7588052UMW · SOP-8 | UMW | SOP-8 | 1,060 | ₹32.40 · 1,060 in stock | View |
 | IRF9321TR(UMW)#C19100582UMW · SOP-8 | UMW | SOP-8 | 2,990 | ₹34.76 · 2,990 in stock | View |
 | IRF9321TRPbF#C54807Infineon · SO-8 | Infineon | SO-8 | 3,934 | ₹522.97 · 3,934 in stock | View |
