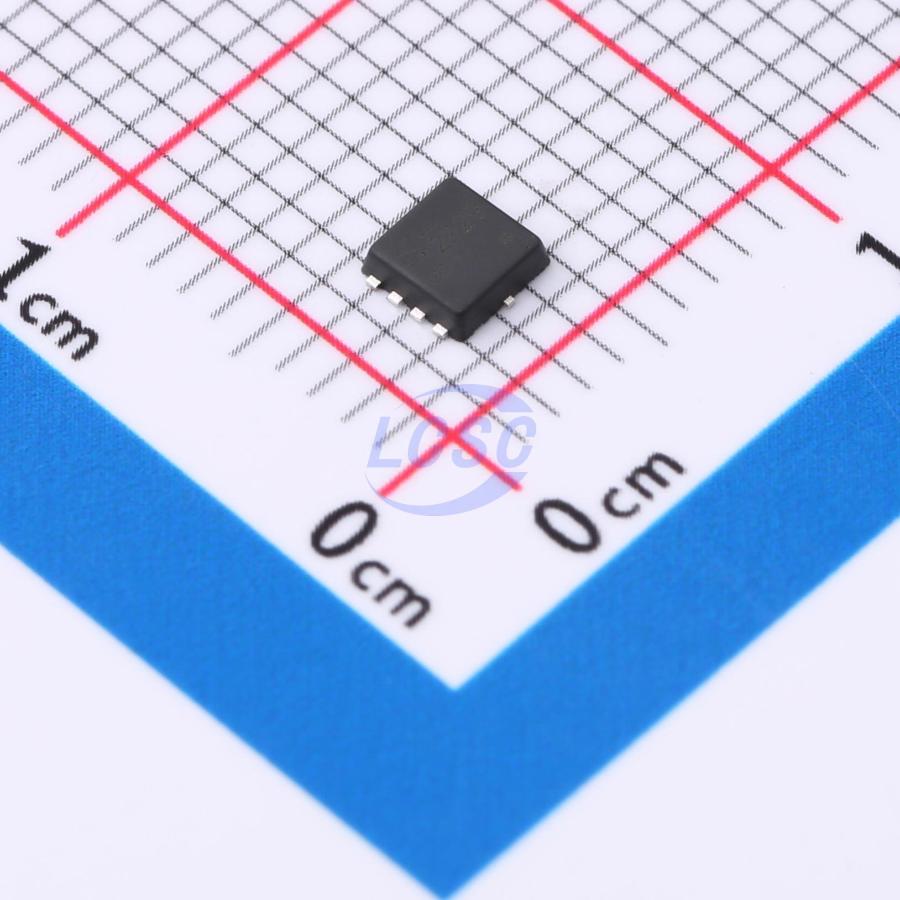

DMP3018SFV-7
P-Channel 30V 35A 30W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 30V 35A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3018SFV-7
- Store part #
- C461075
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
475 in stock
#C461075
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹59.98 | ₹299.90 |
| 50+ | ₹49.71 | ₹2,485.50 |
| 150+ | ₹45.30 | ₹6,795.00 |
| 500+ | ₹38.59 | ₹19,295.00 |
| 2,000+ | ₹36.14 | ₹72,280.00 |
| 4,000+ | ₹34.68 | ₹1,38,720.00 |
5 × ₹59.98
₹299.90
excl. GST
₹353.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DMP3018SFV-7
₹299.90 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 35A
- Ciss-Input Capacitance
- 2.147nF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 358pF
- RDS(on)
- 12mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 28nC@5V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
This MOSFET is designed to minimize on-resistance R<sub>DS(ON)</sub> while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Backlighting
- Power management functions
- DC-DC converter
Key features
- Low R<sub>DS(ON)</sub> — minimizes conduction losses
- Compact, thermally efficient package enables higher-density end products
- Occupies only 33% of the board area of an SO-8 package, enabling smaller end products
- Gate ESD protection
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP3018SFVQ-7#C5245379DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 18 | ₹36.16 · 18 in stock | View |
 | CMSC3007B#C41410549Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 160 | ₹26.76 · 160 in stock | View |
| JSM7409C#C55073347JSMSEMI · DFN-8L(3.3x3.3) | JSMSEMI | DFN-8L(3.3x3.3) | 29,905 | ₹21.62 · 29,905 in stock | View | |
 | DMP3007SCG-13#C5245373DIODES · V-DFN3333-8 | DIODES | V-DFN3333-8 | 25 | ₹277.49 · 25 in stock | View |
 | AGM40P35AP#C18221399AGMSEMI · PDFN3.3x3.3-8 | AGMSEMI | PDFN3.3x3.3-8 | 5,055 | ₹36.51 · 5,055 in stock | View |
