DIODESDatasheet (PDF)

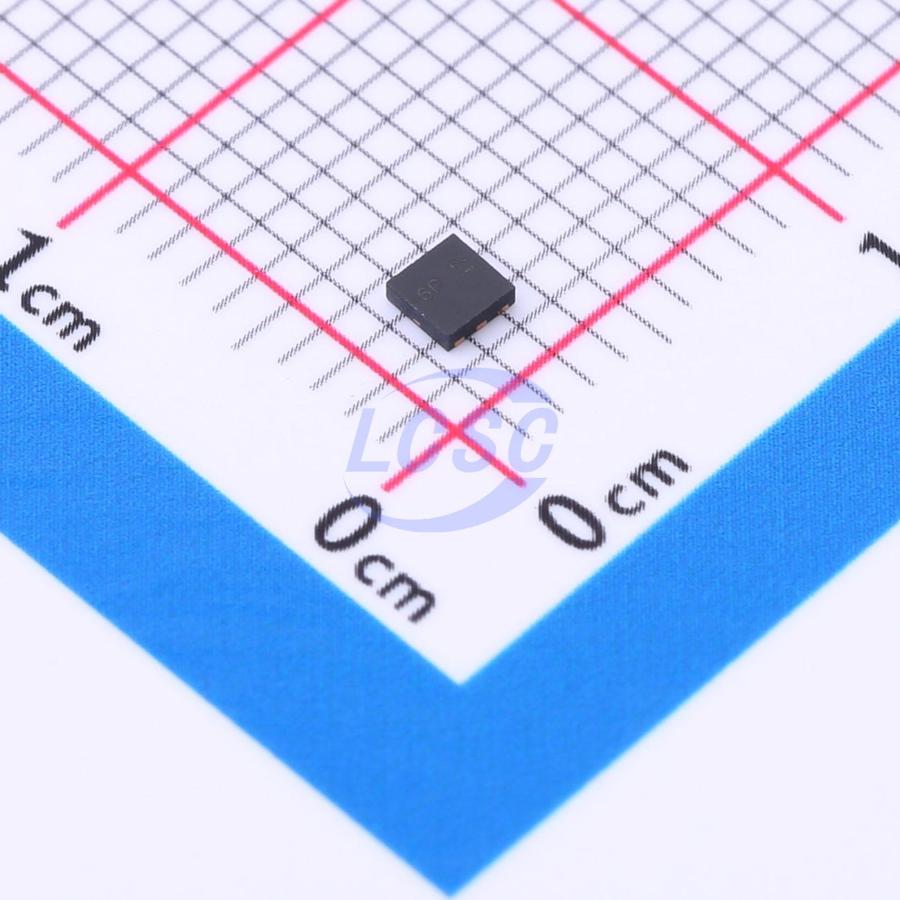

DMP3026SFDF-13
P-Channel 30V 8.6A 0.71W Surface Mount UDFN2020-6
UDFN2020-6ROHS3 CompliantActive
MOSFET P-CH 30V 8.6A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3026SFDF-13
- Store part #
- C5245385
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C5245385
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.47 | ₹96.47 |
1 × ₹96.47
₹96.47
excl. GST
₹113.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1 per bag
DMP3026SFDF-13
₹96.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 154pF
- Ciss-Input Capacitance
- 1.204nF
- Pd - Power Dissipation
- 710mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 8.6A
- Reverse Transfer Capacitance (Crss)
- 112pF
- RDS(on)
- 19mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 19.6nC
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Battery Management Application
- Power Management Functions
- DC-DC Converters
Key features
- 0.6mm Profile – Ideal for Low Profile Applications
- Low Gate Threshold Voltage
- Low On-Resistance
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP3026SFDF-7#C461076DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 145 | ₹261.05 · 145 in stock | View |
 | LP3418DT2AG#C2912042LRC · U-DFN2020-6 | LRC | U-DFN2020-6 | 590 | ₹19.78 · 590 in stock | View |
 | XR30P10M#C42456934XNRUSEMI · DFN2020-6L | XNRUSEMI | DFN2020-6L | 2,295 | ₹13.35 · 2,295 in stock | View |
 | 30P10M#C7471109HL · DFN2X2-6L | HL | DFN2X2-6L | 775 | ₹11.32 · 775 in stock | View |
 | TW30P10#C42417371TWGMC · DFN2X2-6L | TWGMC | DFN2X2-6L | 1,930 | ₹15.44 · 1,930 in stock | View |
