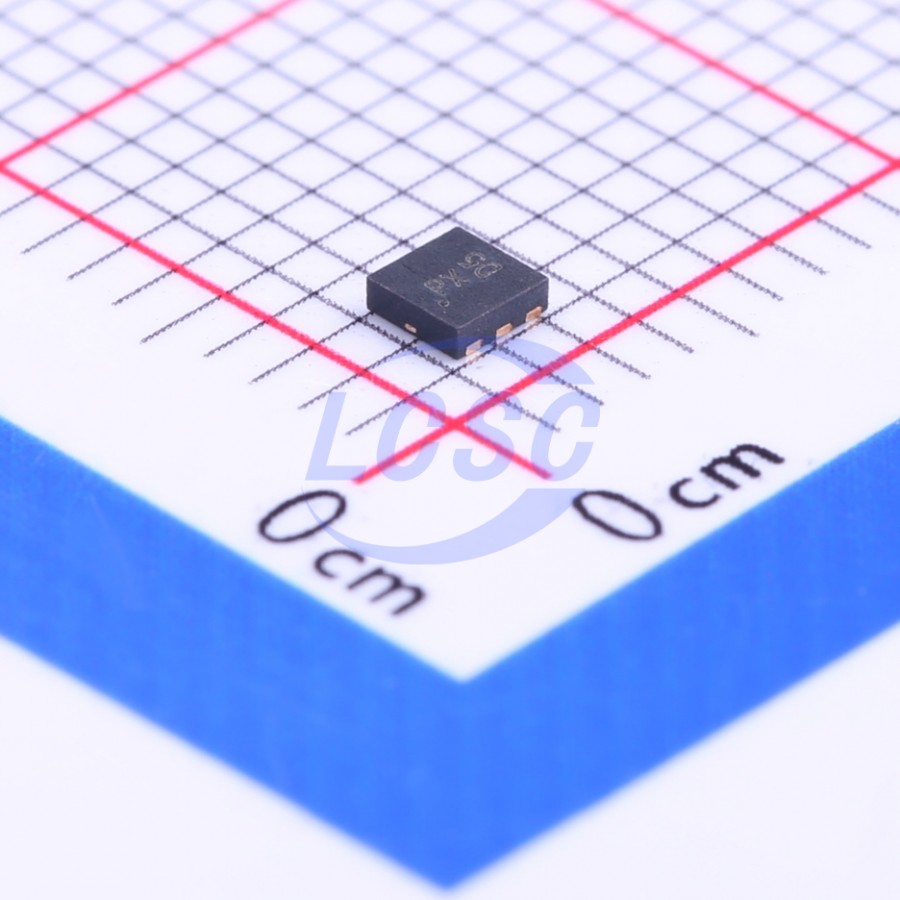

DMP3028LFDE-13
30V 6.8A 0.66W Surface Mount UDFN2020-6
UDFN2020-6ROHS3 CompliantActive
MOSFET 30V 6.8A UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3028LFDE-13
- Store part #
- C150441
- Package / case
- UDFN2020-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C150441
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.83 | ₹149.15 |
| 50+ | ₹23.75 | ₹1,187.50 |
| 150+ | ₹21.13 | ₹3,169.50 |
| 500+ | ₹17.87 | ₹8,935.00 |
| 2,500+ | ₹16.42 | ₹41,050.00 |
| 5,000+ | ₹15.55 | ₹77,750.00 |
5 × ₹29.83
₹149.15
excl. GST
₹176.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP3028LFDE-13
₹149.15 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 220pF
- Current - Continuous Drain(Id)
- 6.8A
- Ciss-Input Capacitance
- 1.86nF
- Pd - Power Dissipation
- 660mW
- Reverse Transfer Capacitance (Crss)
- 165pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 33nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Load Switch
Key features
- Low Input Capacitance
- Low On-Resistance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP30P25NQ#C41355031Siliup · PDFN-6L(2x2) | Siliup | PDFN-6L(2x2) | 210 | ₹5.31 · 210 in stock | View |
| HSCB3103#C42376791HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 790 | ₹16.71 · 790 in stock | View | |
 | DMP3028LFDE-7#C461077DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 100 | ₹25.30 · 100 in stock | View |
 | TW30P10#C42417371TWGMC · DFN2X2-6L | TWGMC | DFN2X2-6L | 1,930 | ₹15.44 · 1,930 in stock | View |
 | TW30P20#C42417270TWGMC · DFN2X2-6L | TWGMC | DFN2X2-6L | 385 | ₹15.97 · 385 in stock | View |
