DIODESDatasheet (PDF)

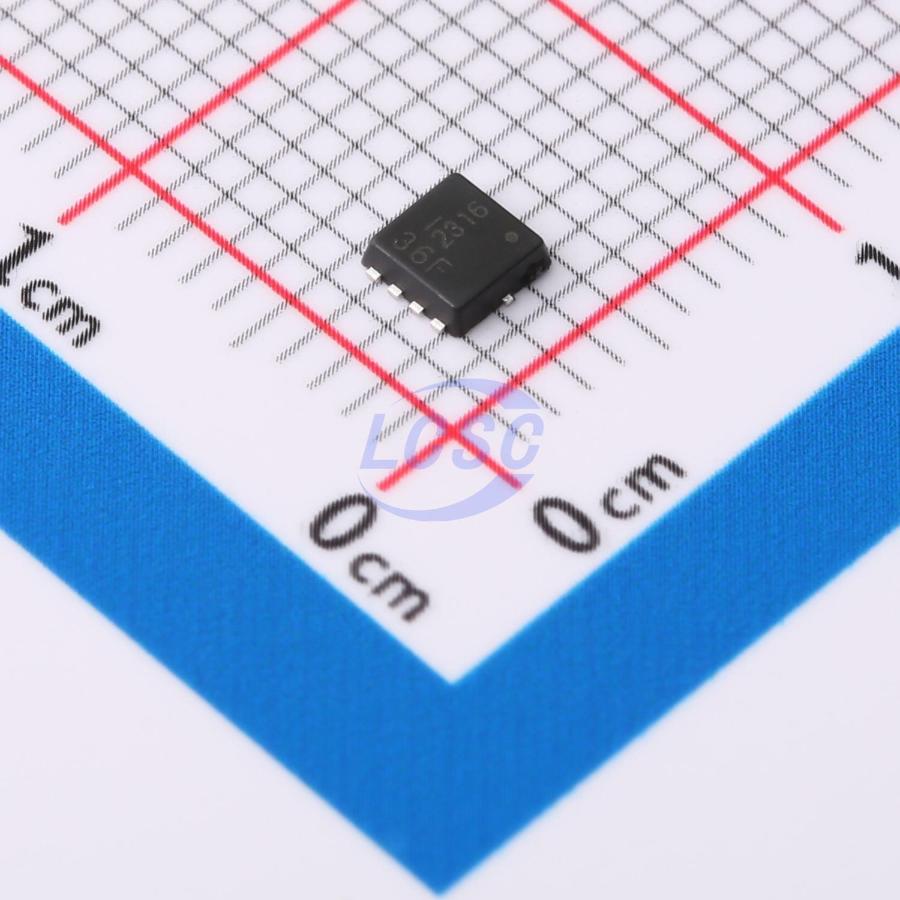

DMP3036SFV-13
P-Channel 30V 30A 2.3W Surface Mount PowerDI3333-8
PowerDI3333-8ROHS3 CompliantActive
MOSFET P-CH 30V 30A PowerDI3333-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3036SFV-13
- Store part #
- C460054
- Package / case
- PowerDI3333-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
492 in stock
#C460054
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.15 | ₹61.15 |
| 10+ | ₹48.57 | ₹485.70 |
| 30+ | ₹43.16 | ₹1,294.80 |
| 100+ | ₹36.44 | ₹3,644.00 |
| 500+ | ₹33.39 | ₹16,695.00 |
| 1,000+ | ₹31.66 | ₹31,660.00 |
1 × ₹61.15
₹61.15
excl. GST
₹72.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP3036SFV-13
₹61.15 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 226pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.931nF
- Pd - Power Dissipation
- 2.3W
- Reverse Transfer Capacitance (Crss)
- 168pF
- RDS(on)
- 20mΩ@10V;29mΩ@5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8.8nC@5V;16.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.076 g
Overview
This MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Load Switch
- Power Management Function
Key features
- Low R<sub>DS(ON)</sub> — minimizes conduction losses
- Compact, thermally efficient package for higher-density end products
- Occupies only 33% of the board area of an SO-8 package, enabling smaller end products
- Fully lead-free, fully RoHS compliant
- Halogen- and antimony-free, "green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DMP3036SFG-13#C6183701DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 55 | ₹215.81 · 55 in stock | View | |
| DMP3036SFV-7#C6601849DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 3 | ₹201.61 · 3 in stock | View | |
 | CMSC90P03#C22364967Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 185 | ₹29.91 · 185 in stock | View |
 | SISH107DN-T1-GE3#C20346154VISHAY · PowerPAK1212-8SH | VISHAY | PowerPAK1212-8SH | 5 | ₹69.97 · 5 in stock | View |
 | XR40P03D#C42456941XNRUSEMI · PDFN-8L(3.3x3.3) | XNRUSEMI | PDFN-8L(3.3x3.3) | 1,985 | ₹13.30 · 1,985 in stock | View |
