HXY MOSFETDatasheet (PDF)

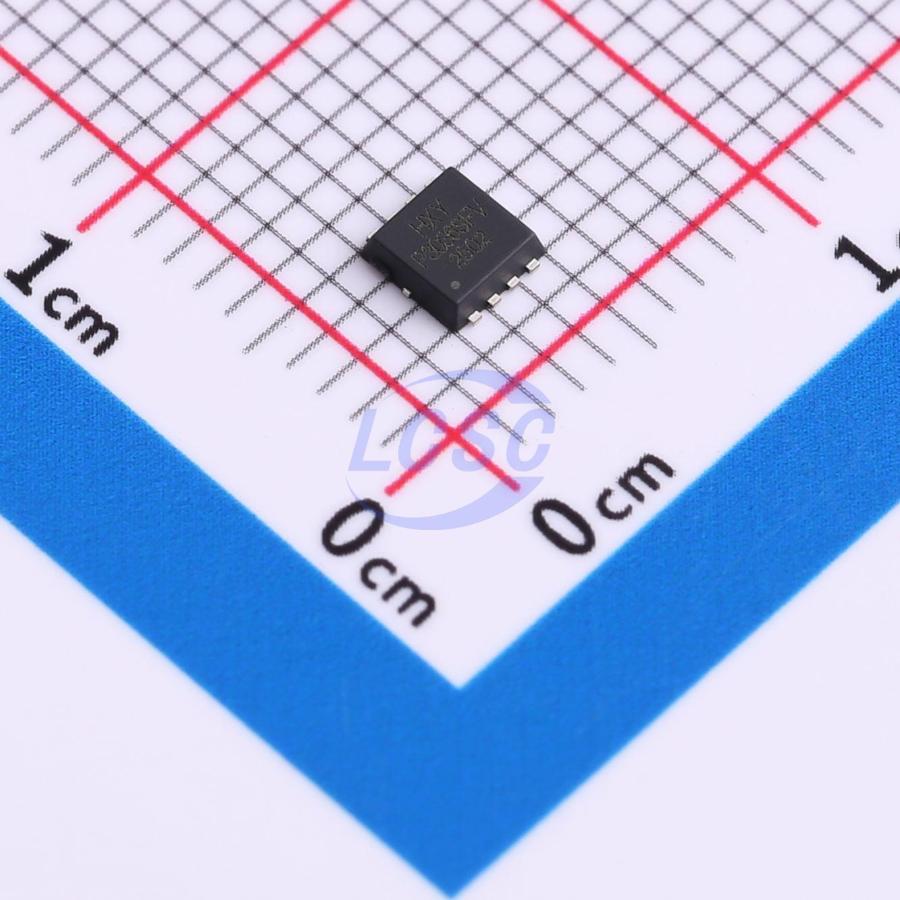

DMP3036SFV-HXY
P-Channel 30V 25A 29W Surface Mount DFN-8L(3x3)
DFN-8L(3x3)ROHS CompliantActive
MOSFET P-CH 30V 25A DFN-8L(3x3)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DMP3036SFV-HXY
- Store part #
- C22366872
- Package / case
- DFN-8L(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
205 in stock
#C22366872
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.61 | ₹158.05 |
| 50+ | ₹25.14 | ₹1,257.00 |
| 150+ | ₹22.37 | ₹3,355.50 |
| 500+ | ₹18.91 | ₹9,455.00 |
| 2,500+ | ₹17.37 | ₹43,425.00 |
| 5,000+ | ₹16.44 | ₹82,200.00 |
5 × ₹31.61
₹158.05
excl. GST
₹186.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DMP3036SFV-HXY
₹158.05 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 150pF
- Ciss-Input Capacitance
- 1.15nF
- Pd - Power Dissipation
- 29W
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 25A
- Reverse Transfer Capacitance (Crss)
- 134pF
- RDS(on)
- 16mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 52nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7619DN-T1-GE3-HXY#C22366874HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 1 | ₹58.78 · 1 in stock | View |
 | STL6P3LLH6-HXY#C22366875HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 72 | ₹123.01 · 72 in stock | View |
 | SI7111EDN-T1-GE3-HXY#C51949182HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 70 | ₹70.87 · 70 in stock | View |
 | HSiSH101DN#C42401213HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 50 | ₹44.07 · 50 in stock | View |
 | RQ3E120ATTB-HXY#C54582641HXY MOSFET · DFN-8L(3x3) | HXY MOSFET | DFN-8L(3x3) | 1,890 | ₹20.90 · 1,890 in stock | View |
