DIODESDatasheet (PDF)

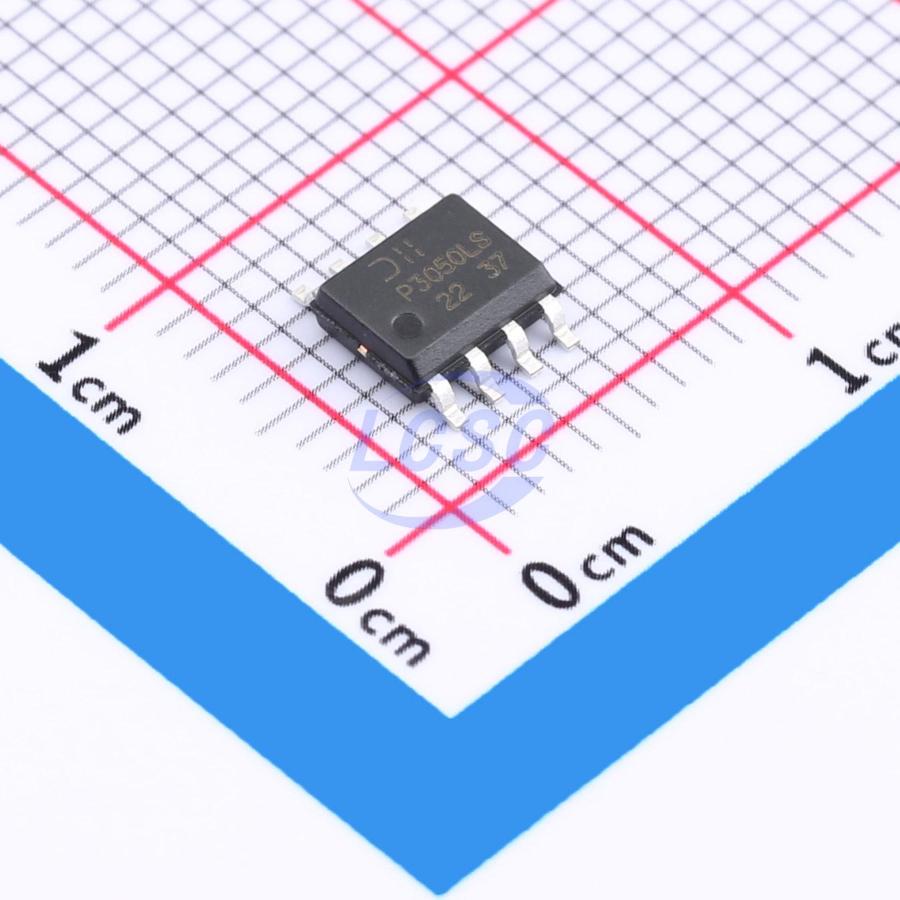

DMP3050LSS-13
P-Channel 30V 4.8A 1.7W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 30V 4.8A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3050LSS-13
- Store part #
- C5209385
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
146 in stock
#C5209385
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.02 | ₹48.02 |
| 10+ | ₹46.94 | ₹469.40 |
| 30+ | ₹46.29 | ₹1,388.70 |
| 100+ | ₹45.42 | ₹4,542.00 |
1 × ₹48.02
₹48.02
excl. GST
₹56.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP3050LSS-13
₹48.02 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 83pF
- Ciss-Input Capacitance
- 620pF
- Pd - Power Dissipation
- 1.7W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 4.8A
- Reverse Transfer Capacitance (Crss)
- 62pF
- RDS(on)
- 45mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.1nC
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
This MOSFET has been designed to minimize the on-state resistance (Ron) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- Power Management Functions
- DC-DC Converters
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SP30P38P8#C41355032Siliup · SOP-8L | Siliup | SOP-8L | 3,980 | ₹7.61 · 3,980 in stock | View | |
 | LP4565T1G#C2912044LRC · SO-8 | LRC | SO-8 | 3,785 | ₹26.54 · 3,785 in stock | View |
 | ATM9435PPA#C915745Agertech · SOP-8 | Agertech | SOP-8 | 10 | ₹7.28 · 10 in stock | View |
 | CMS4443A#C5203752Cmos · SOP-8 | Cmos | SOP-8 | 25 | ₹16.39 · 25 in stock | View |
 | ME9435#C709768MATSUKI · SOP-8 | MATSUKI | SOP-8 | 80 | ₹15.35 · 80 in stock | View |
