DIODESDatasheet (PDF)

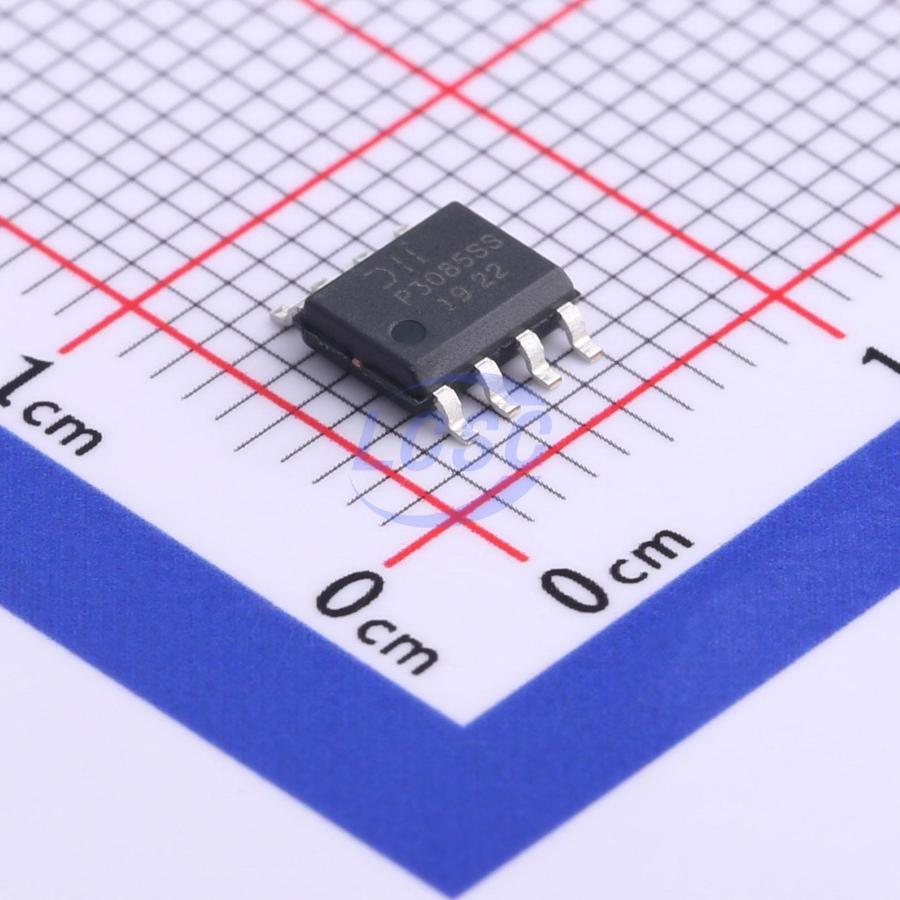

DMP3085LSS-13
P-Channel 30V 3.8A 1.3W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 30V 3.8A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3085LSS-13
- Store part #
- C780841
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,760 in stock
#C780841
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.49 | ₹97.45 |
| 50+ | ₹15.64 | ₹782.00 |
| 150+ | ₹13.71 | ₹2,056.50 |
| 500+ | ₹12.26 | ₹6,130.00 |
| 2,500+ | ₹10.88 | ₹27,200.00 |
| 5,000+ | ₹10.29 | ₹51,450.00 |
5 × ₹19.49
₹97.45
excl. GST
₹114.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP3085LSS-13
₹97.45 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 48pF
- Ciss-Input Capacitance
- 563pF
- Pd - Power Dissipation
- 1.3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3.8A
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 70mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 5.2nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.135 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Backlighting
- Power Management Functions
- DC-DC Converters
Key features
- Low On-Resistance
- Low Input Capacitance
- Fast Switching Speed
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device Qualified to AEC-Q101 standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI9435BDY-T1-E3#C3279889VISHAY · SO-8 | VISHAY | SO-8 | 2,054 | ₹259.24 · 2,054 in stock | View |
 | WSP6055#C5185341Winsok Semicon · SOP-8 | Winsok Semicon | SOP-8 | 2,345 | ₹31.63 · 2,345 in stock | View |
 | CMS5006B#C5203744Cmos · SOP-8 | Cmos | SOP-8 | 90 | ₹23.62 · 90 in stock | View |
 | AP4953GM#C6193APEC · SOIC-8 | APEC | SOIC-8 | 1 | ₹25.47 · 1 in stock | View |
 | BLM4953#C92447BL · SOP-8 | BL | SOP-8 | 1,035 | ₹10.39 · 1,035 in stock | View |
