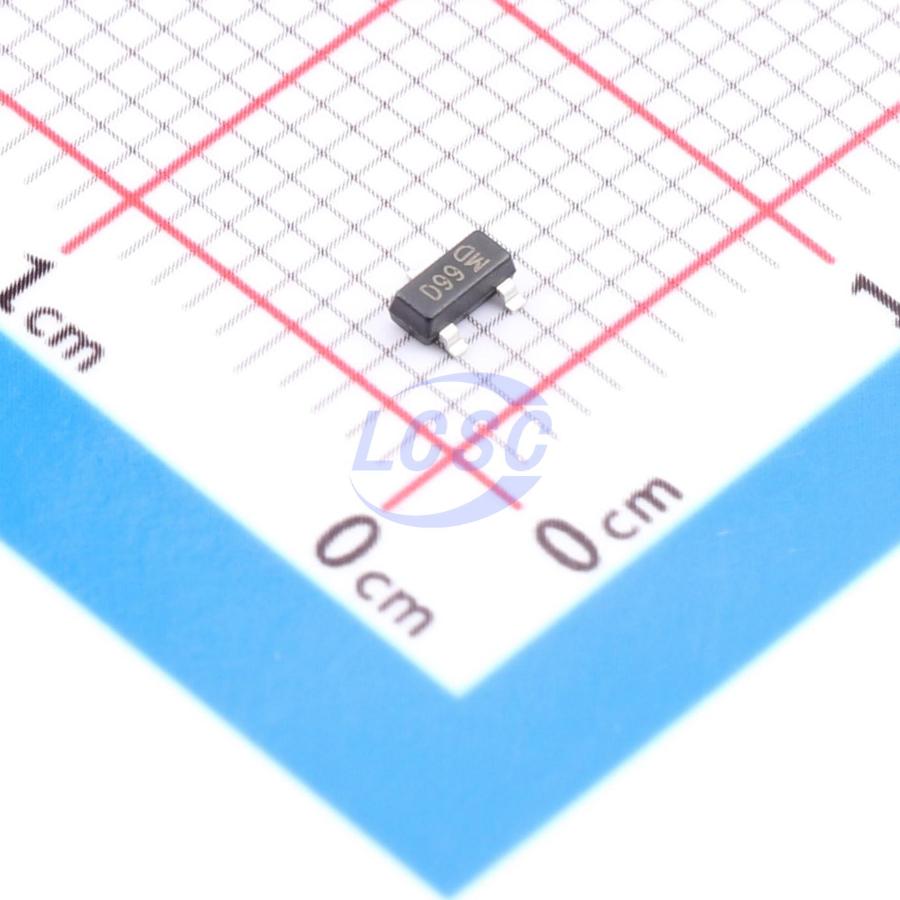

DMP3099LQ-13
30V 3.8A 1.08W 65mΩ@10V 1 P-Channel SOT-23-3 Single FETs, MOSFETs RoHS
SOT-23-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3099LQ-13
- Store part #
- C6540272
- Package / case
- SOT-23-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C6540272
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹26.26 | ₹26.26 |
| 10+ | ₹25.61 | ₹256.10 |
| 30+ | ₹25.18 | ₹755.40 |
| 100+ | ₹24.74 | ₹2,474.00 |
1 × ₹26.26
₹26.26
excl. GST
₹30.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP3099LQ-13
₹26.26 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3.8A
- Ciss-Input Capacitance
- 563pF
- Pd - Power Dissipation
- 1.08W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 65mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with AEC-Q101 and supports PPAP, making it ideal for the following applications: - Backlighting - Power management - DC-DC converters
Applications
- Backlight Illumination - Power Management Function - DC-DC Converter
Key features
- Low gate threshold voltage
- Low input capacitance
- Fast switching speed
- Low input/output leakage current
- Fully lead-free and RoHS compliant
- Halogen and antimony-free, "Green" device
- AEC-Q101 high reliability qualified
- PPAP capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP3099L-7#C155244DIODES · SOT-23 | DIODES | SOT-23 | 80,965 | ₹21.98 · 80,965 in stock | View |
 | DMP3099L-13#C412516DIODES · SOT-23 | DIODES | SOT-23 | 3,585 | ₹39.93 · 3,585 in stock | View |
 | SI2319#C42186046GOODWORK · SOT-23 | GOODWORK | SOT-23 | 4,150 | ₹7.44 · 4,150 in stock | View |
 | AO3407#C5278900PAKER · SOT-23 | PAKER | SOT-23 | 270 | ₹6.48 · 270 in stock | View |
 | ST3401SRG#C2682891STANSON Tech. · SOT-23 | STANSON Tech. | SOT-23 | 740 | ₹9.68 · 740 in stock | View |
