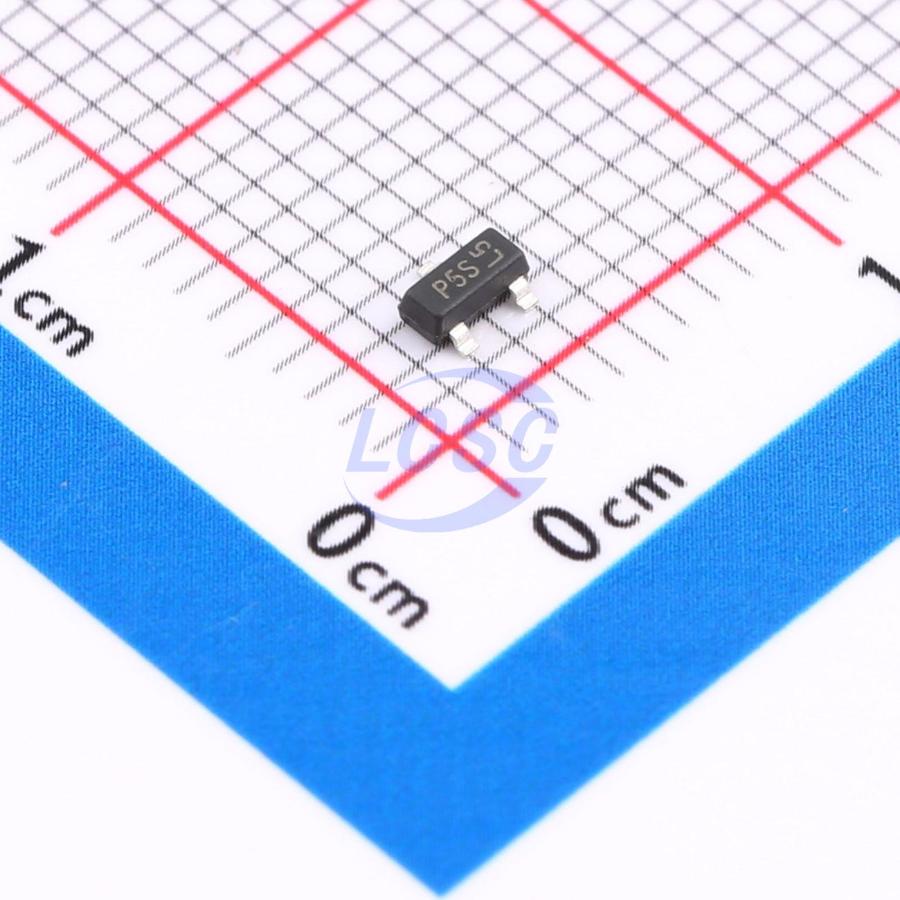

DMP3130L-7
P-Channel 30V 3A 0.7W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 30V 3A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMP3130L-7
- Store part #
- C155233
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,620 in stock
#C155233
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.39 | ₹78.39 |
| 10+ | ₹64.88 | ₹648.80 |
| 30+ | ₹59.01 | ₹1,770.30 |
| 100+ | ₹51.82 | ₹5,182.00 |
| 500+ | ₹48.55 | ₹24,275.00 |
| 1,000+ | ₹46.60 | ₹46,600.00 |
1 × ₹78.39
₹78.39
excl. GST
₹92.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP3130L-7
₹78.39 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 174pF
- Ciss-Input Capacitance
- 864pF
- Pd - Power Dissipation
- 700mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 124pF
- RDS(on)
- 150mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 24nC@10V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
This new generation MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- DC-DC Converters
- Power Management Functions
- Analog Switch
Key features
- Low On-Resistance
- Low Gate Threshold Voltage
- Low Input Capacitance
- Fast Switching Speed
- Low Input/Output Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DMP3130LQ)
