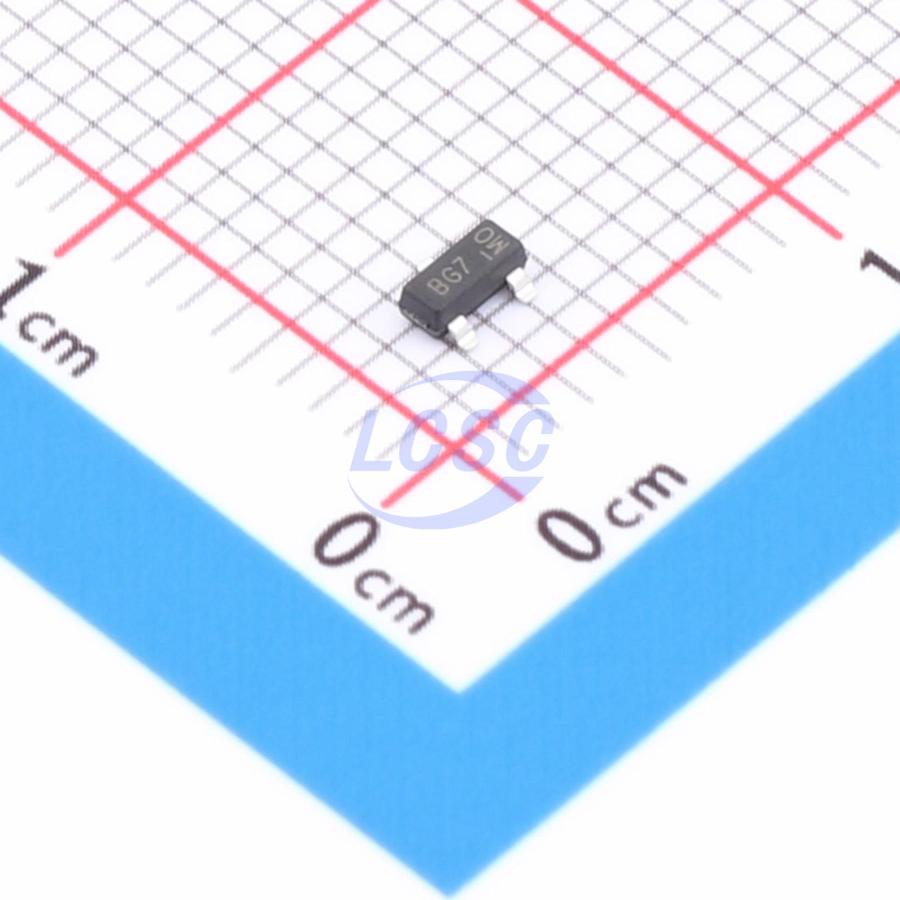

DMP31D1U-7
P-Channel 30V 0.62A 0.58W Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 30V 0.62A SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DMP31D1U-7
- Store part #
- C19949945
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
600 in stock
#C19949945
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.10 | ₹61.00 |
| 100+ | ₹4.88 | ₹488.00 |
| 300+ | ₹4.27 | ₹1,281.00 |
| 3,000+ | ₹3.81 | ₹11,430.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.27 | ₹29,430.00 |
10 × ₹6.10
₹61.00
excl. GST
₹71.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DMP31D1U-7
₹61.00 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 10.9pF
- Current - Continuous Drain(Id)
- 620mA
- Ciss-Input Capacitance
- 54pF
- Pd - Power Dissipation
- 580mW
- Reverse Transfer Capacitance (Crss)
- 5.8pF
- RDS(on)
- 2Ω@1.8V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 1.6nC@8V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- Load switches in portable electronics
Key features
- Low Gate Threshold Voltage
- Fast Switching Speed
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP31D0U-7#C3290036DIODES · SOT-23-3 | DIODES | SOT-23-3 | 10 | ₹28.97 · 10 in stock | View |
 | IRLML5103TRPBF#C2591Infineon · SOT-23 | Infineon | SOT-23 | 11,860 | ₹19.36 · 11,860 in stock | View |
 | IRLML5103TR(UMW)#C5252439UMW · SOT-23 | UMW | SOT-23 | 7,530 | ₹4.72 · 7,530 in stock | View |
 | IRLML5103#C5364309Guangdong Hottech · SOT-23 | Guangdong Hottech | SOT-23 | 2,680 | ₹7.16 · 2,680 in stock | View |
| PJA3433_R1_00001#C6628419PANJIT · SOT-23 | PANJIT | SOT-23 | On request | ₹41.97 · 0 in stock | View | |
