DIODESDatasheet (PDF)

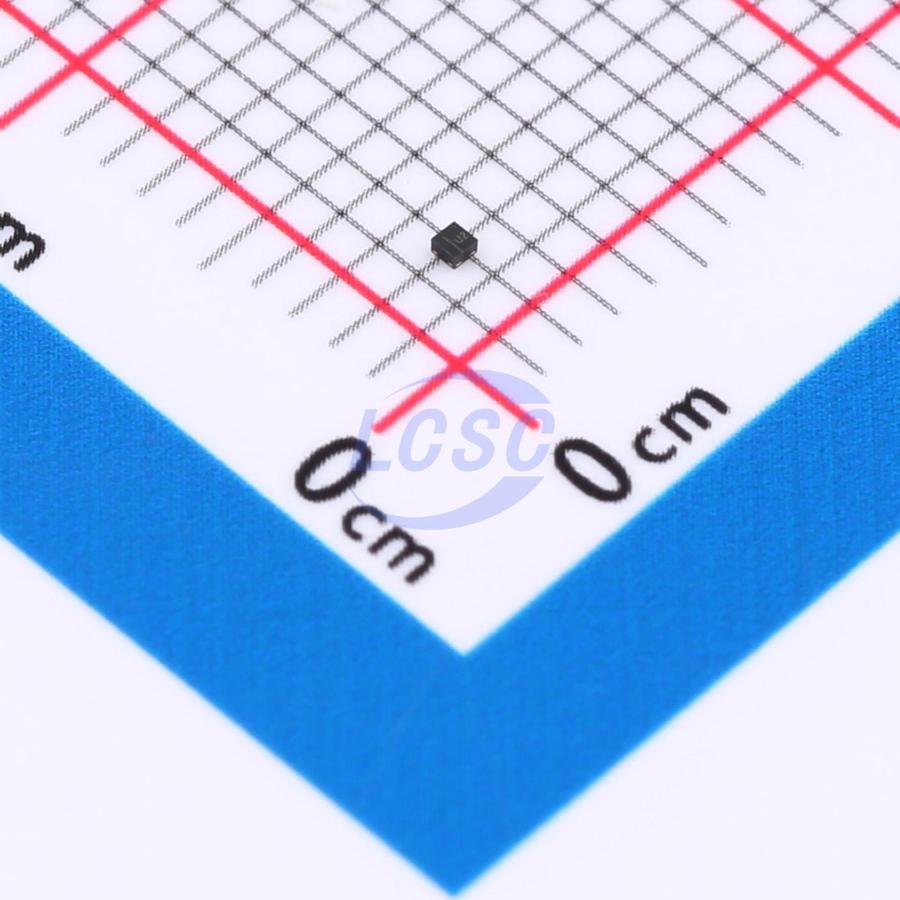

DMP32D9UFZ-7B
P-Channel 30V 100mA 390mW Surface Mount X2-DFN0606-3
X2-DFN0606-3ROHS3 CompliantActive
MOSFET P-CH 30V 100mA X2-DFN0606-3
- Manufacturer
- DIODES
- Manufacturer part #
- DMP32D9UFZ-7B
- Store part #
- C5245392
- Package / case
- X2-DFN0606-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C5245392
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.39 | ₹196.95 |
| 50+ | ₹31.34 | ₹1,567.00 |
| 150+ | ₹27.89 | ₹4,183.50 |
| 500+ | ₹23.59 | ₹11,795.00 |
| 2,500+ | ₹21.68 | ₹54,200.00 |
| 5,000+ | ₹20.53 | ₹1,02,650.00 |
5 × ₹39.39
₹196.95
excl. GST
₹232.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DMP32D9UFZ-7B
₹196.95 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100mA
- Ciss-Input Capacitance
- 22.5pF
- Pd - Power Dissipation
- 390mW
- Reverse Transfer Capacitance (Crss)
- 2.1pF
- RDS(on)
- 10Ω@1.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 350pC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.44 g
Overview
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Applications
- General Purpose Interfacing
- Switch Power Management Functions
- Analog Switch
Key features
- Low Package Profile, 0.42mm Maximum Package Height
- 0.62mm x 0.62mm Package Footprint
- Low On-Resistance
- Very Low Gate Threshold Voltage, -1.0V Max
- ESD Protected Gate
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMH1200UPEH#C552954Nexperia · DFN0606-3 | Nexperia | DFN0606-3 | 35 | ₹18.76 · 35 in stock | View |
 | PMH850UPEH#C2981747Nexperia · DFN0606-3 | Nexperia | DFN0606-3 | 2,710 | ₹14.70 · 2,710 in stock | View |
| DMP32D8UFZ-7B#C18236248DIODES · X2-DFN0606-3 | DIODES | X2-DFN0606-3 | On request | ₹18.01 · 0 in stock | View | |
