DIODESDatasheet (PDF)

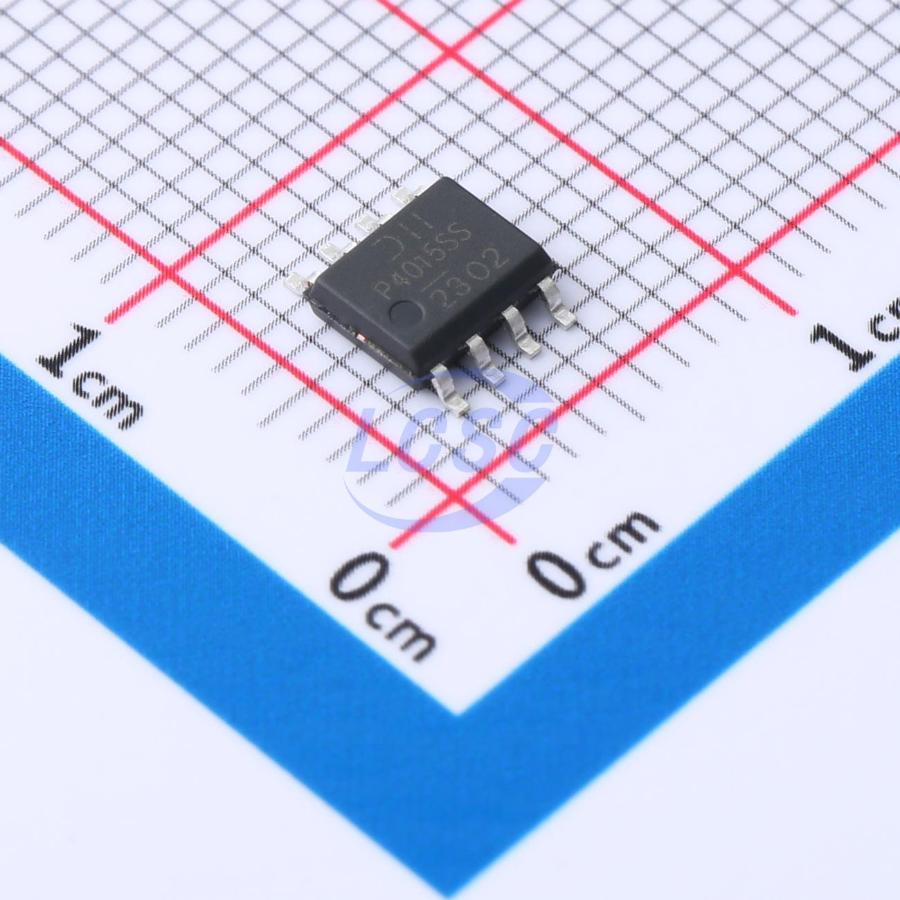

DMP4015SSSQ-13
P-Channel 40V 10.1A 1.82W Surface Mount SO-8
SO-8ROHS3 CompliantActive
MOSFET P-CH 40V 10.1A SO-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP4015SSSQ-13
- Store part #
- C531172
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C531172
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹242.73 | ₹242.73 |
| 10+ | ₹205.57 | ₹2,055.70 |
| 30+ | ₹185.37 | ₹5,561.10 |
| 100+ | ₹162.33 | ₹16,233.00 |
| 500+ | ₹152.12 | ₹76,060.00 |
| 1,000+ | ₹147.55 | ₹1,47,550.00 |
1 × ₹242.73
₹242.73
excl. GST
₹286.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP4015SSSQ-13
₹242.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 1.036nF
- Current - Continuous Drain(Id)
- 10.1A
- Ciss-Input Capacitance
- 4.234nF
- Pd - Power Dissipation
- 1.82W
- Reverse Transfer Capacitance (Crss)
- 526pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 47.5nC@5V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.219 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 compliant with Production Part Approval Process (PPAP) support, making it ideal for the following applications: - DC-DC converters - Power management functions - Analog switches
Applications
- DC-DC Converters - Power Management Functions - Analog Switches
Key features
- 100% unclamped inductive switching (UIS) tested in production
- Low input capacitance
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMP4015SSS-13#C508210DIODES · SO-8 | DIODES | SO-8 | 2,583 | ₹171.69 · 2,583 in stock | View |
 | DMP4015SSS#C5197355TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 6,630 | ₹33.66 · 6,630 in stock | View |
 | QN4485#C53474641QNHCHIP · SOP-8L | QNHCHIP | SOP-8L | 70 | ₹26.37 · 70 in stock | View |
 | DMPH4015SSSQ-13#C5451813DIODES · SOIC-8 | DIODES | SOIC-8 | 7 | ₹182.32 · 7 in stock | View |
 | CMS4013A#C6939748Cmos · SOP-8 | Cmos | SOP-8 | 175 | ₹30.94 · 175 in stock | View |
