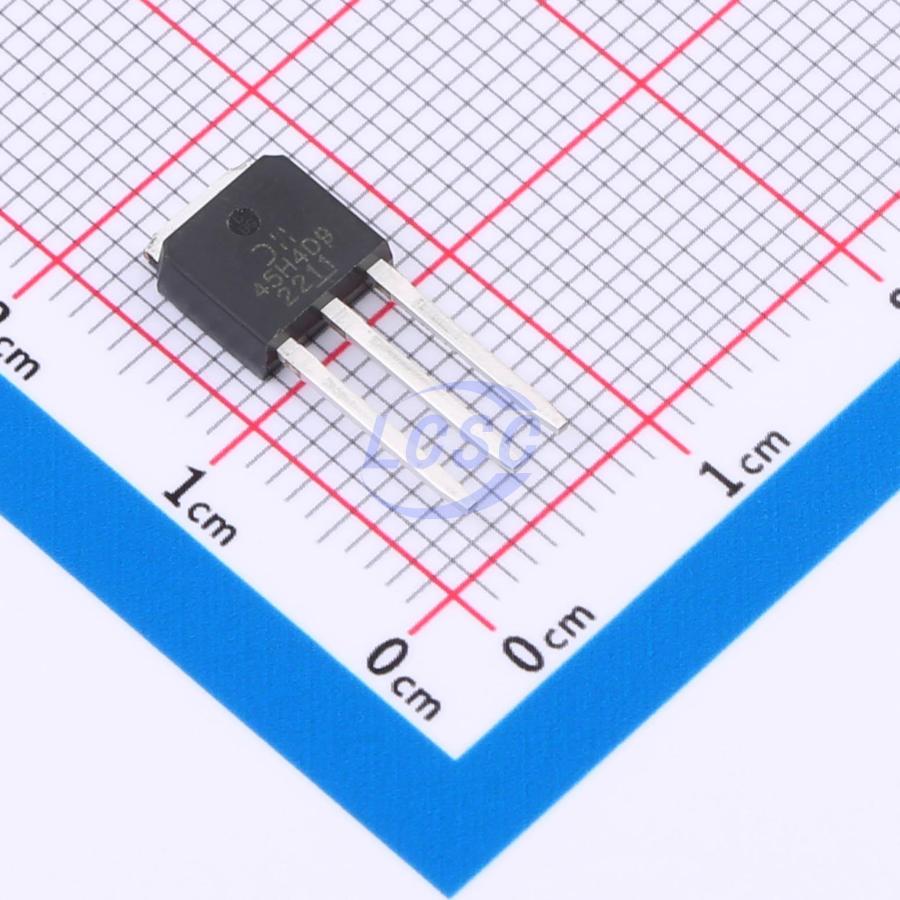

DMP45H4D9HJ3
104W 450V 4.6A 3.1Ω@10V 1 P-Channel P-Channel TO-251-3 Single FETs, MOSFETs RoHS
TO-251-3ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- DMP45H4D9HJ3
- Store part #
- C5374776
- Package / case
- TO-251-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C5374776
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.52 | ₹109.52 |
| 10+ | ₹88.88 | ₹888.80 |
| 30+ | ₹78.45 | ₹2,353.50 |
| 75+ | ₹68.24 | ₹5,118.00 |
| 525+ | ₹62.15 | ₹32,628.75 |
| 975+ | ₹58.90 | ₹57,427.50 |
1 × ₹109.52
₹109.52
excl. GST
₹129.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 75 per tube
DMP45H4D9HJ3
₹109.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 74pF
- Ciss-Input Capacitance
- 547pF
- Pd - Power Dissipation
- 104W
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 450V
- Current - Continuous Drain(Id)
- 4.6A
- Reverse Transfer Capacitance (Crss)
- 3.1pF
- RDS(on)
- 3.1Ω@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13.7nC
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.82 g
Overview
This MOSFET is designed to minimize on-resistance while maintaining superior switching performance, making it ideal for high-efficiency power management applications.
Applications
- Motor control
- DC-DC converters
- Power management functions
- Uninterruptible power supplies
Key features
- Low input capacitance
- High BVdss rating for power applications
- Low input/output leakage current
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
