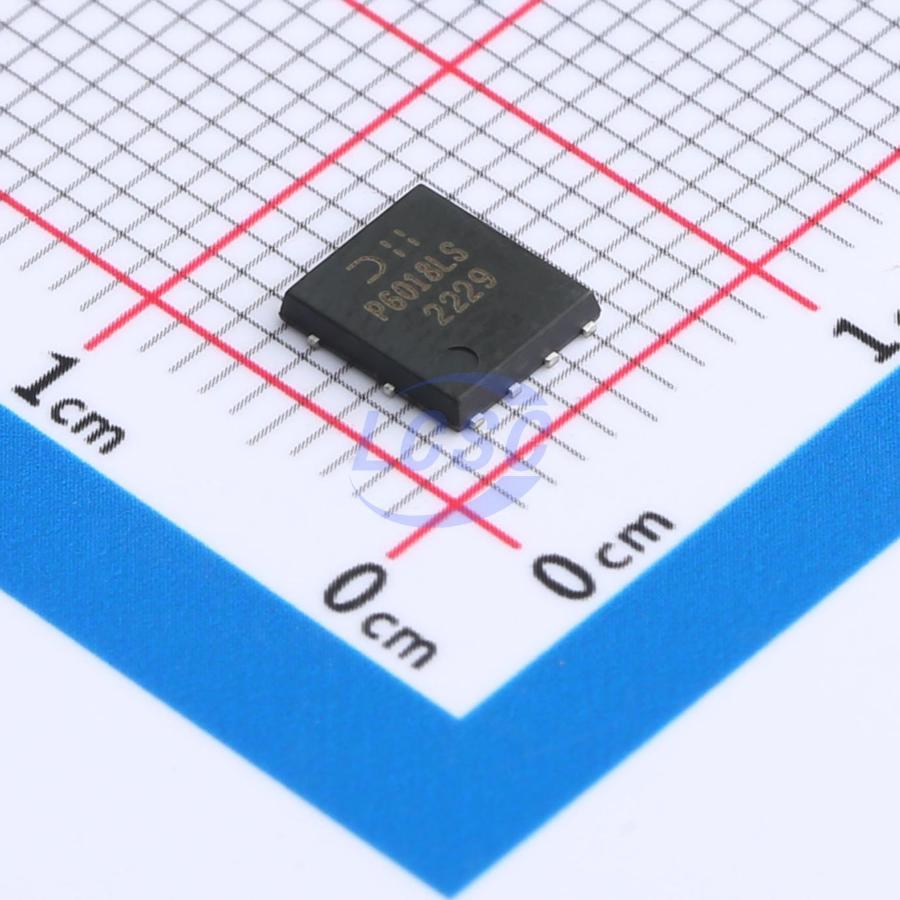

DMP6018LPSQ-13
P-Channel 60V 60A 113W Surface Mount PowerDI5060-8
PowerDI5060-8ROHS3 CompliantActive
MOSFET P-CH 60V 60A PowerDI5060-8
- Manufacturer
- DIODES
- Manufacturer part #
- DMP6018LPSQ-13
- Store part #
- C5456105
- Package / case
- PowerDI5060-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C5456105
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹375.96 | ₹375.96 |
| 10+ | ₹321.98 | ₹3,219.80 |
| 30+ | ₹288.37 | ₹8,651.10 |
| 100+ | ₹253.90 | ₹25,390.00 |
| 500+ | ₹238.29 | ₹1,19,145.00 |
| 1,000+ | ₹231.56 | ₹2,31,560.00 |
1 × ₹375.96
₹375.96
excl. GST
₹443.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DMP6018LPSQ-13
₹375.96 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 516pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 3.505nF
- Pd - Power Dissipation
- 113W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 13mΩ@10V;22mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 7.1nC@4.5V;13.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.265 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It is AEC-Q101 qualified with PPAP support, making it ideal for: DC-DC converters, load switches.
Applications
- DC-DC Converter - Load Switch
Key features
- 100% UIS tested in production
- Low on-resistance RDS(ON) — minimizes conduction losses
- Low input capacitance
- Fast switching speed
- Lead-free finish; RoHS compliant
- Halogen and antimony free. "Green" device
- DMP6018LPSQ is suited for automotive applications requiring specific change control; the product is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA6115#C2903568HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,995 | ₹67.80 · 2,995 in stock | View |
 | SP60P11NK#C41355207Siliup · PDFNWB-8L(5x6) | Siliup | PDFNWB-8L(5x6) | 3,987 | ₹75.85 · 3,987 in stock | View |
 | TPM6060PD56#C7472879TECH PUBLIC · PDFN5X6-8L | TECH PUBLIC | PDFN5X6-8L | 858 | ₹115.11 · 858 in stock | View |
 | S60P06F#C41406792HL · PDFN5x6-8L | HL | PDFN5x6-8L | 4,295 | ₹28.21 · 4,295 in stock | View |
 | XRS60P06F#C42457120XNRUSEMI · PDFN-8L(5x6) | XNRUSEMI | PDFN-8L(5x6) | 2,500 | ₹58.12 · 2,500 in stock | View |
